  • ZQ-6602 B/W Ultrasound

ZQ-6602 B/W Ultrasound

The ZQ-6602 is an impressive mobile ultrasound system providing reliable value and durable quality across a wide range of applications. With the added support of pulsed-wave Doppler imaging, the ZQ-6602 meets higher diagnostic requirements. This is economical for a general-purpose B&W Ultrasound system.

Key Features of ZQ-6602 B/W Ultrasound

  • 10inch LED monitor

  • 2 Activated Transducer Ports

  • Support more than 200 frames image permanent storage, optional U disk for storage extension

  • Software packages: Abdomen, Cardiac, Obstetrics, Gynecology, Urology, Small Parts

  • One key full-screen display, easy to view from a distance

  • Printing report and image directly by a laser printer

  • Optimization key: Multi parameters preset and one key image optimization

  • Integrated smart workstation: large storage and convenient data management

  • Automatic report generation

  • Data Interface: Video, USB, VGA


Technical Specifications of ZQ-6602 B/W Ultrasound

  • Application: Abdomen, Obstetrics, Gynecology, Urology, Cardiology, Small Parts, Vascular

  • Transducer Types: Convex transducer, Linear transducer, Trans-vaginal transducer, Micro-convex transducer

  • Imaging Modes: B-Mode, 2B/4B-Mode, M-Mode

  • 10" LED monitor

  • Accessories:

  • Convex Array Probe UT-C-3.5

  • Linear Array Probe UT-L-7.5

  • Transvaginal Probe UT-C-6.5

  • Micro-convex Probe UT-C-3.5-R20

  • Micro-convex Probe UT-C-5.0-R20

  • Biopsy

  • Trolley

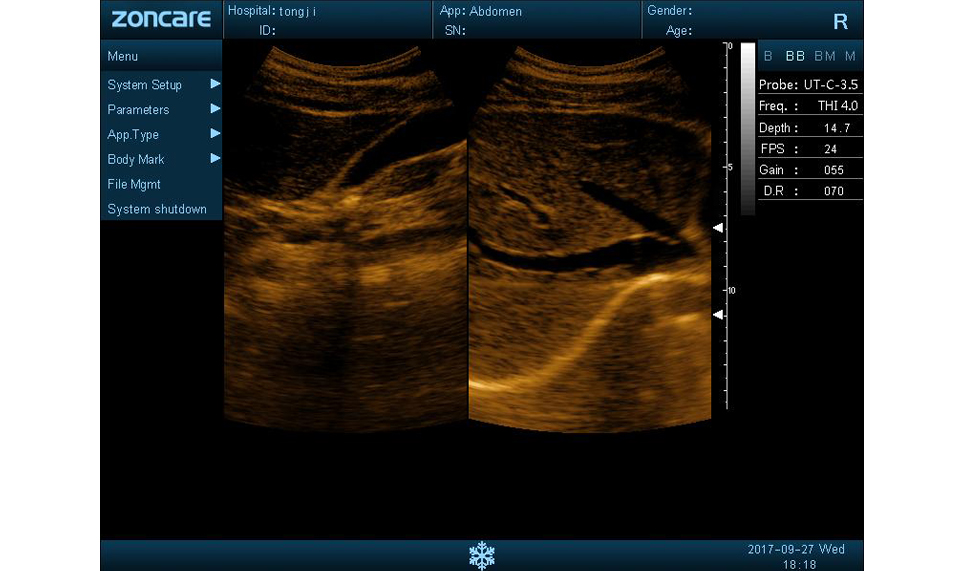

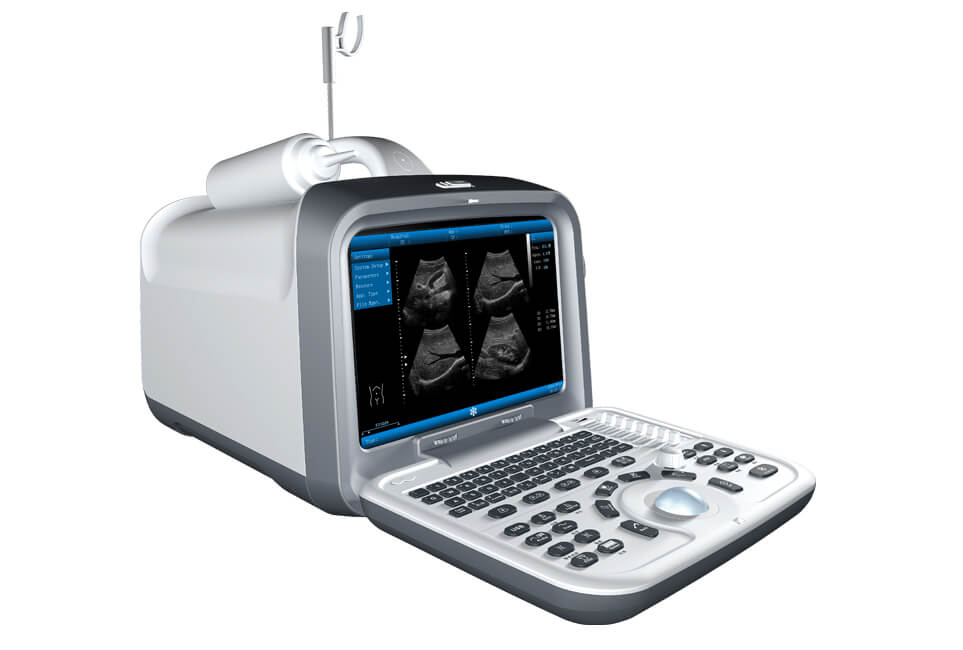

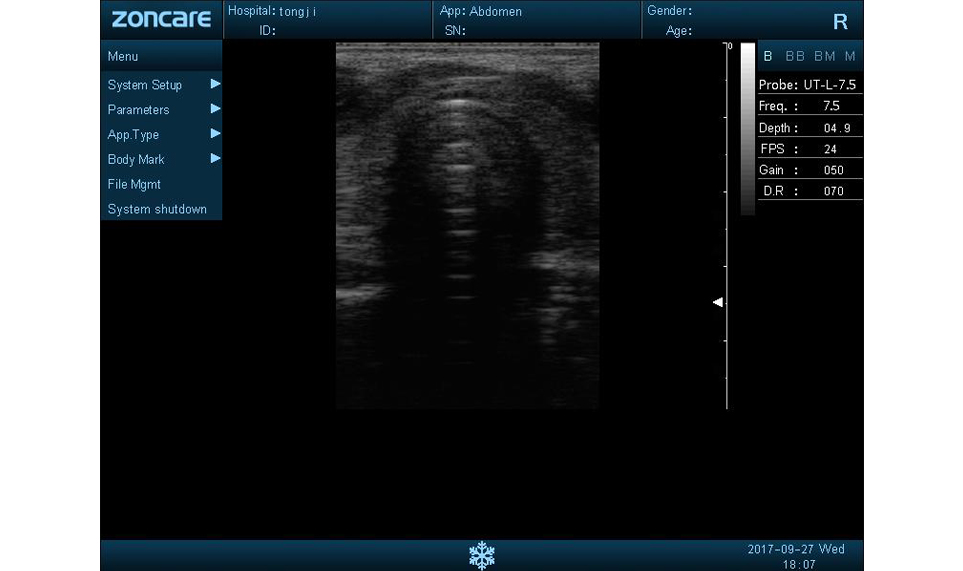

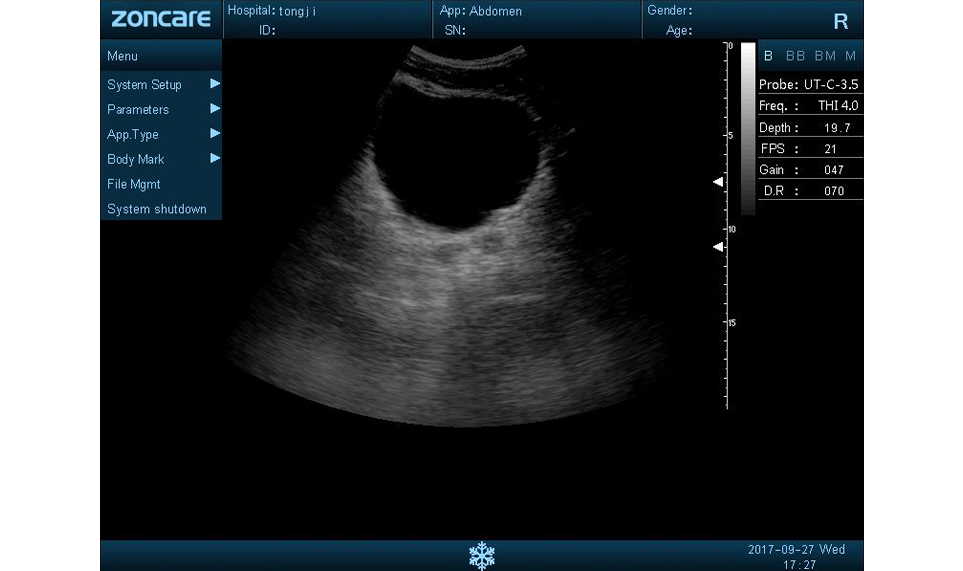

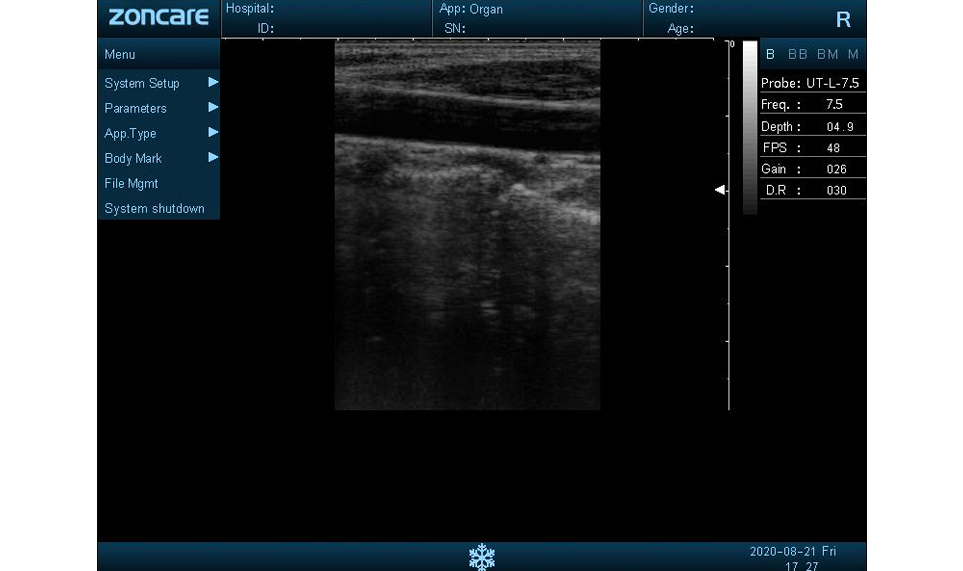

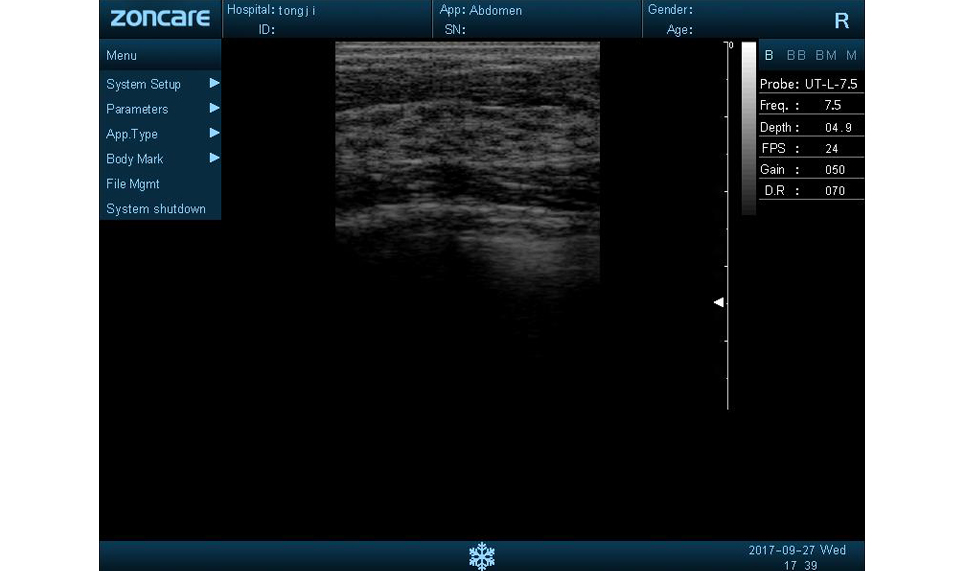

Images of ZQ-6602 B/W Ultrasound
