SHENZHEN ALL TRUSTED MEDICAL CO., LTD.
SHENZHEN ALL TRUSTED MEDICAL CO., LTD.
  • Ultrasonic Scaler Machine
  • Electric Ultrasonic Dental Scaler
  • Dental Ultrasonic Scaler Machine

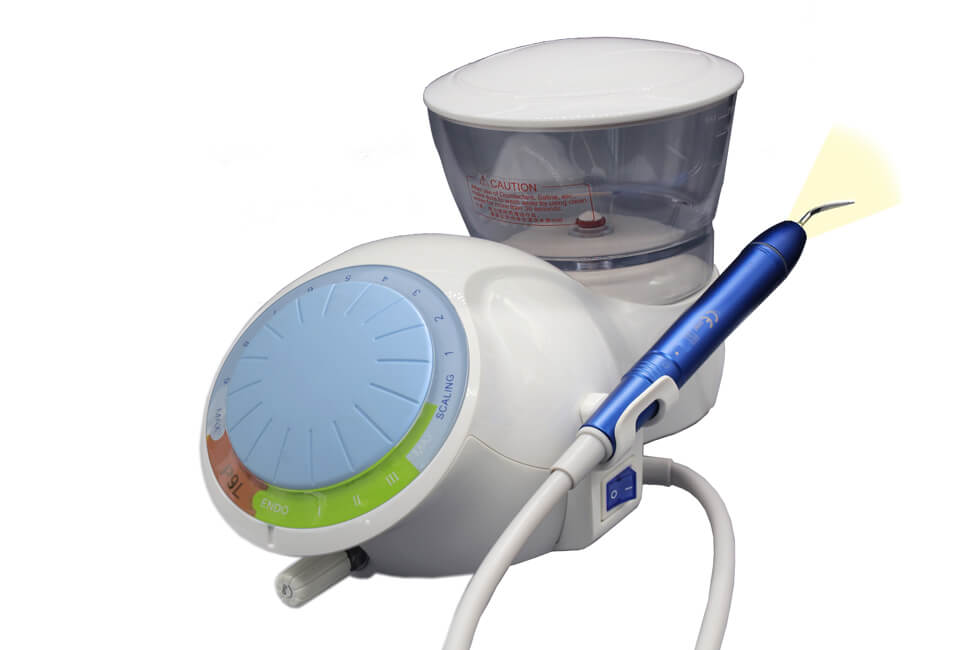

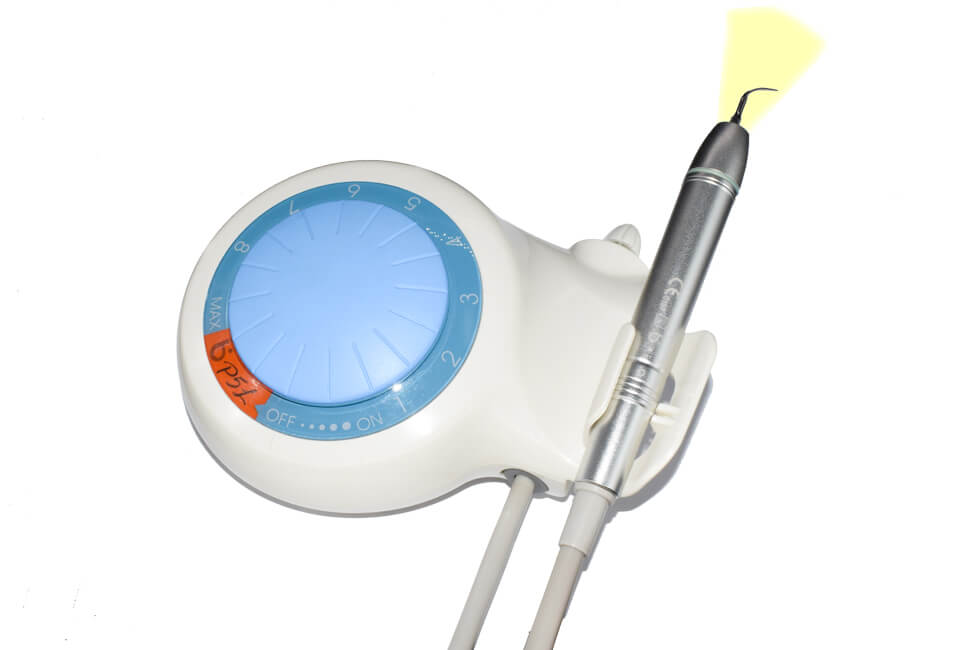

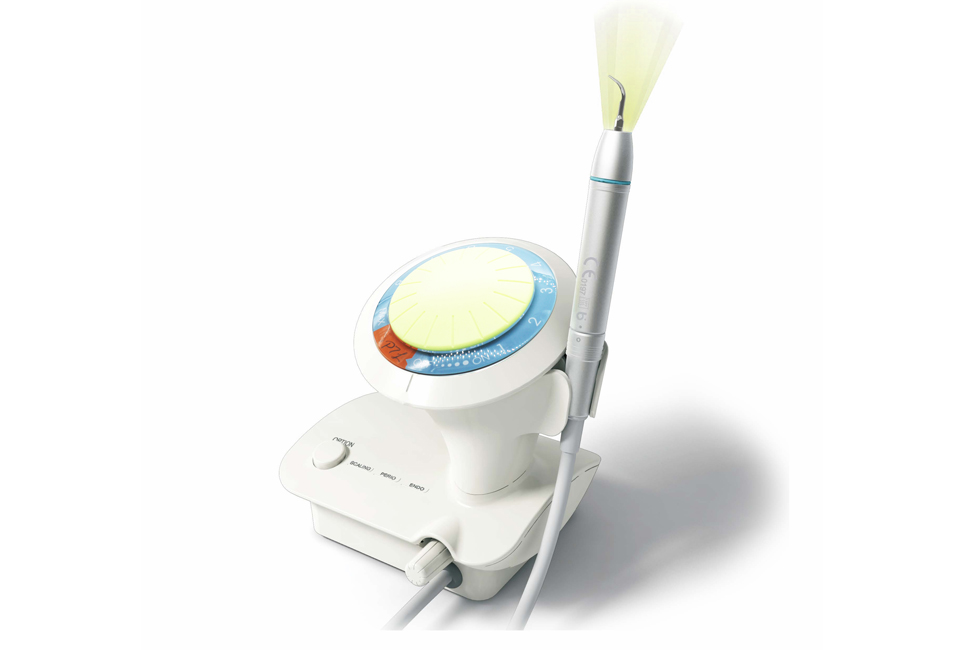

Dental Ultrasonic Scaler

As one of the leading dental ultrasonic scaler suppliers, we manufacture great quality B5/P5L/P7L/P9L dental ultrasonic scaler machine that is with an auto water supply. No consumables, no cracking aluminum alloy LED handpiece. Wide-mouth bottle. If you want to learn more about other types of dental instruments, we also have great quality dental cautery machine for sale. Contact us if you are interested!

Key Features of Dental Ultrasonic Scaler


  • No consumables in waterway system. It can save much repair cost and charge after sales.

  • Detachable aluminum alloy handpiece compatible with EMS: It is the world's first invention in the field of scaler handpiece, which obtains 15 patents.

  • Now some competitors are following us to develop such an aluminum alloy handpiece or copy ours.

  • Built-in power supply with smaller volume is much safer, more convenient than portable one.

  • Identifying scaler tip automatically. It means that you can't use endo function normally at the scaling area and vice versa.

  • Noiseless working pump. Not only the pump can save the consumables but also it is silence.

  • Independent and wide-mouth bottle is easy to be cleaned and added liquid inside. We offer 2pcs bottles, 350ml/pc.



Technical Specifications of Dental Ultrasonic Scaler


Adapter Input

100 - 240V~   50/60Hz 0.7A- 0.4A

Main unit input

30V1.2A

Main unit fuse

250V/T 1.6AL

Output power

3W- 20W

Output primary tip vibration excursion

≤200μm

Output tip vibration frequency

28kHz±3kHz

Output half-excursion force

<2N

Water pressure

0.1MPa~0.5MPa (1bar~5bar)

Weight of main unit

0.65kg

Weight of adapter

0.34kg

Operating mode

Continuous operation

Classification 93/42/EEC

Class Ⅱa

Electric shock protection type

Class Ⅱ

Degree of protection

against electric shock

B

Degree of protection against

harmful ingress of water

Ordinary equipment (IPX0), Foot switch (IPX1)
