  • B8e Mechanical Hospital Bed
  • B8e Mechanical Hospital Bed

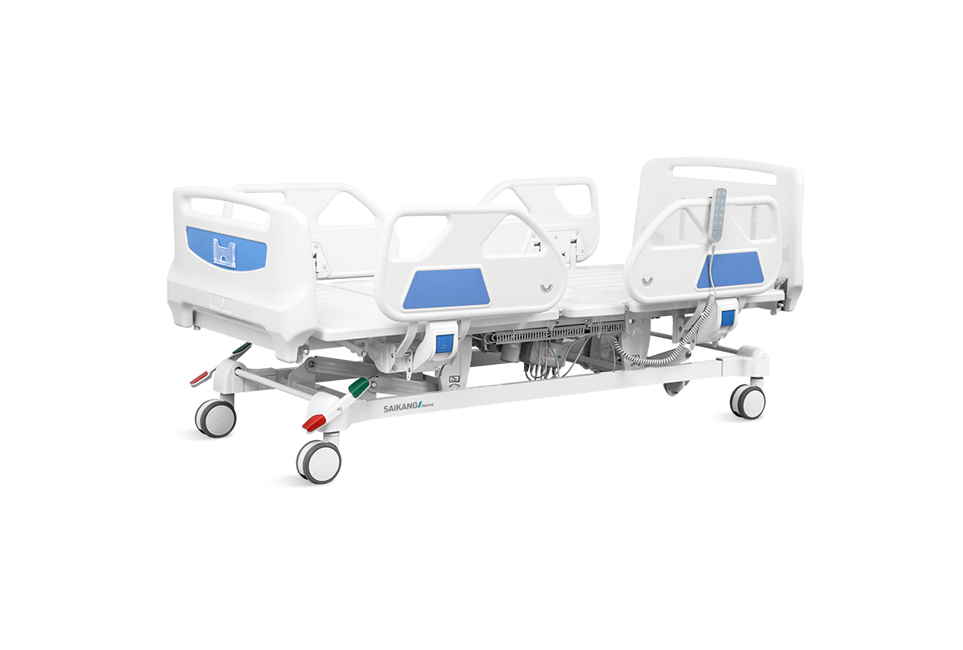

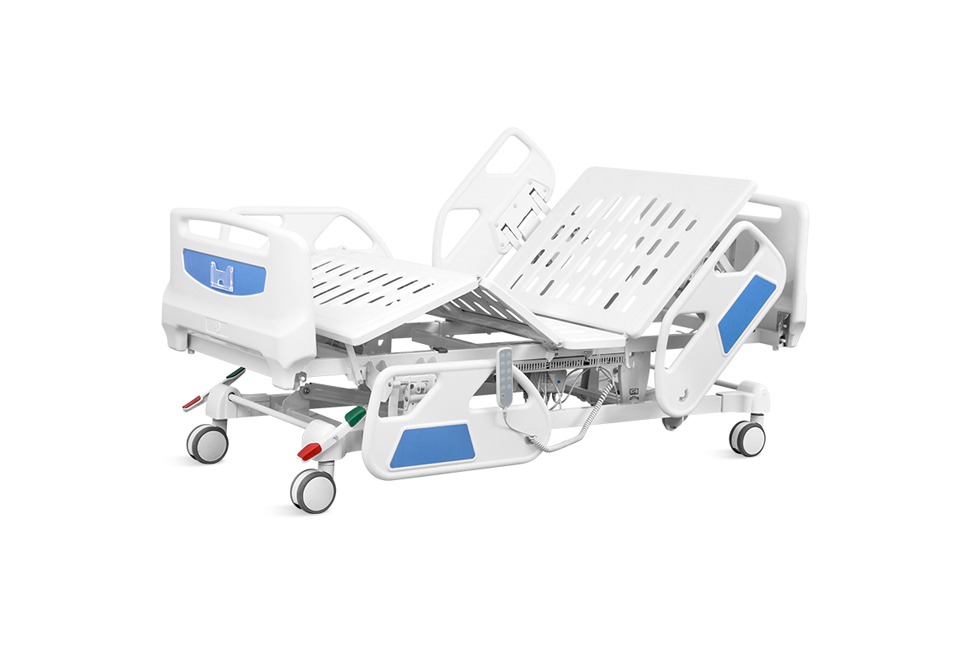

B8e Electric Hospital Bed

  • E-shaped large guardrail, with angled display and built-in controller, meets safety standards, providing a comforting feeling for patients.


  • Baosteel from Fortune Global 500. 11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12 mm, brightness 60°, paint can resist 50 kg impact.

Key Features of B8e Electric Hospital Bed



  • Panasonic robotic ensure 360° full smooth welding. Solid bed base made of 5.0 mm stamped rotating plate.

  • Linear motor, with UL/ROHS/EN standard. Noise under 50 dB, with lifetime 20,000 times movement.

  • Secure® Castors, Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500time.

  • Break spring keep qualified after 10,000 times uninterrupted break.

  • Stamping forming platform, smooth surface no welding scar, bearing 250 kg load. Option ABS platform and resin X-ray translucent platform.

  • Full ABS material, the bottom can endure 100,000times press.

  • The Head and footboard can be reversible.



Technical Parameters of B8e Electric Hospital Bed


External size (LxWxH)

2170x1065x(435-725)mm

Mattress platform

1925x900 mm

Back rest

75°±10°

Leg rest

35°±10°

Tredelenburg

0-12°

Reverse trendelenburg

0-12°

Safe working load

250 kg

Angle indicator

0-90°

Voltage and frequency

100-240 V · 50/60 Hz



Technical Configuration of B8e Electric Hospital Bed


Linear Motor

4pcs

5" Double Side Castors, Central Locking System

4pcs

ABS Side Rail Extra Height

1set

ABS Bed Ends with Integrated Control Panel

1set

IV Pole

1set

IV Pole Prevision

4pcs

Drainage Hook

2pcs

Central Locking Pedal

2pcs
