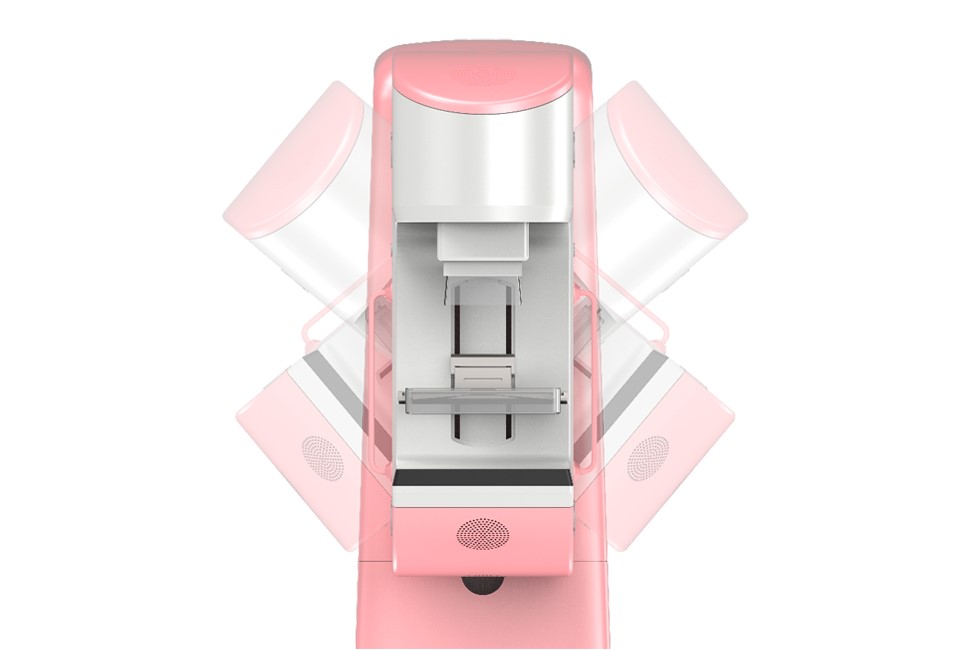

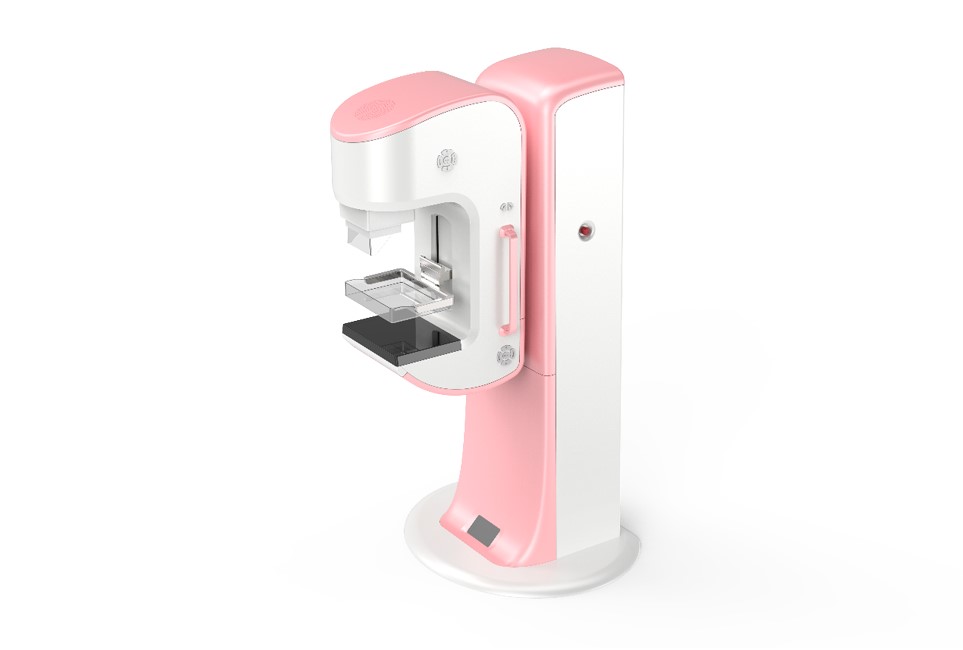

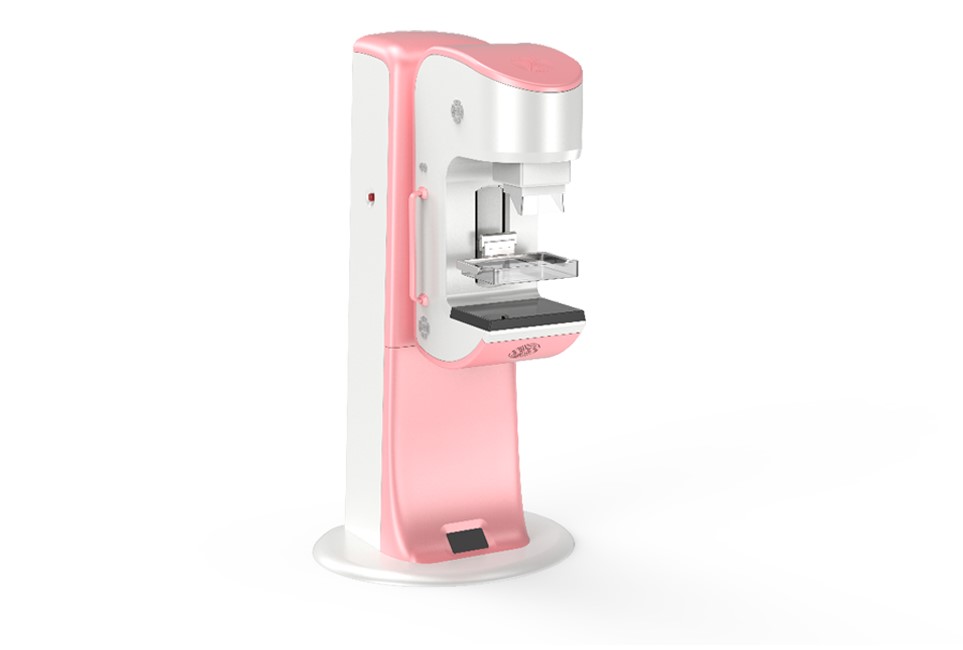

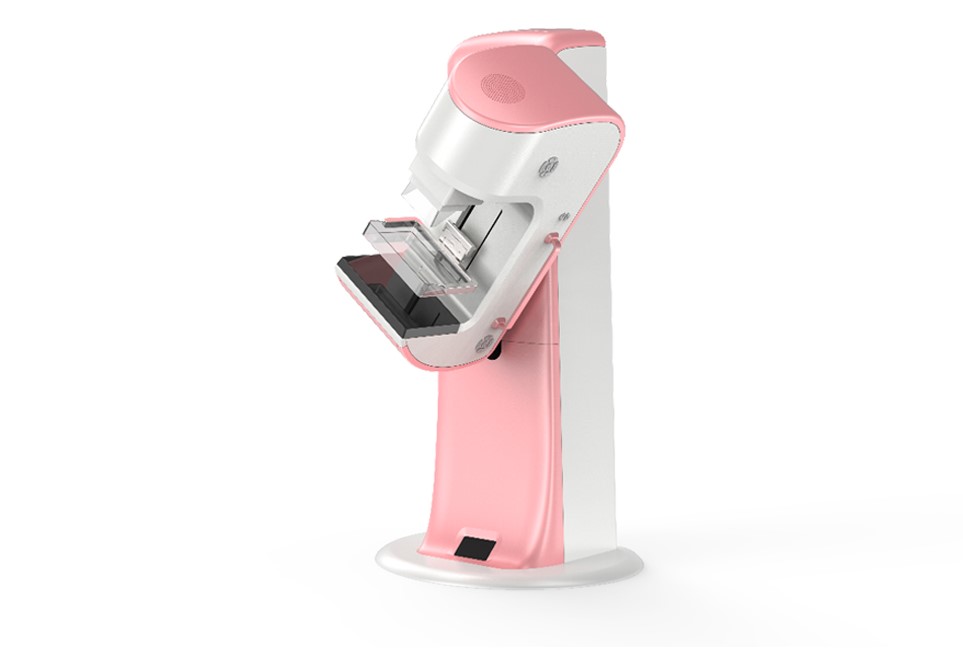

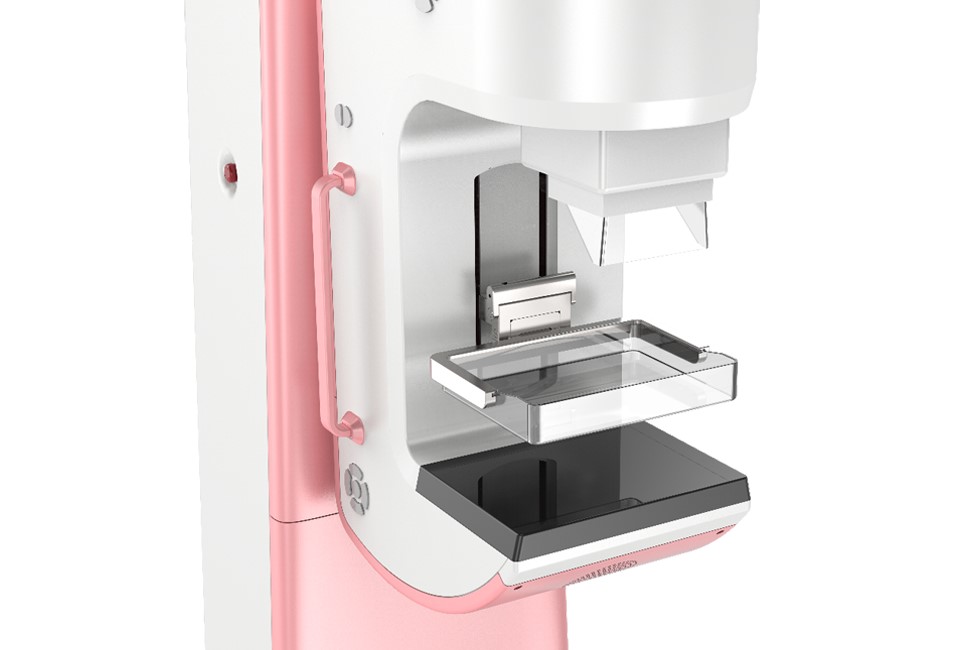

DM156 Digital Mammography Machine

  • Alltrusted, one of the most experienced mammography machine manufacturers, produces digital mammography machine equipped with flat panel detector, generator, x-ray tube, and compressor. It's able to capture ultra-fine targets in imaging and find small lesions.

  • This machine is equipped with advanced image processing software to enhance your image quality.

Key Features of DM156 Digital Mammography Machine

  • Innovative image enhancement features help you see more detail to give you greater confidence with your diagnosis.

  • The processing software is a one-stop system that brings together the entire radiography workflow including registration, examination, post-processing, and documentation.

  • Excellent image quality with the large size detector.

  • Simpler workflow by moving to the next view with only one touch.

  • Optimal accurate diagnosis with image processing software.

  • Automatically process images after acquisition.

  • Reduce image noise, improve soft tissues detail.

  • Intuitive and easy-to-learn user interface.

  • Registration management, image acquisition, image viewer, image processing, film printing, system settings


Specifications of DM156 Digital Mammography Machine

  • Flat Panel Detector: a-Si Flat Panel Detector; Scintillator material: CsI; Images size: 240mm x 300mm

  • High Frequency Generator: 5kW, 40kHz±1Hz, 20 - 35kV, 1kV step, Cathodic Current 70-140mA / 20-30mA, mAs range: 10 - 500mAs

  • X-ray Tube: Focus: 0.1 / 0.3mm; Voltage: 20 - 35kV; Anode type: Rotating; Anode heat capacity: 300kHU

  • C-ARM STAND:  FID: 1420mm - 2020mm; Arm Circumgyrate Angel: -135° - +180°; SID: 650mm


Configurations of DM156 Digital Mammography Machine

Systems

Parts

Quantity

Model

Detector

Flat Panel Digital Detector

1

/

DX Ray Diagnostic Workstation

2

/

X-Ray System

High-Frequency Generator

1

/

X-Ray Tube

1

/

High Voltage Cables

2

/

Collimator

1

/

C-Arm Stand

1

/

Compression Device

2

/

Compression Device  (Optional)

1

/

Mask

1

/

Foot Switch

1

/

Foot Switch (Optional)

1

/

Accessories

Regulated Power Supply

1

/

Report Laser Printer

1

/

Grid (Optional)

1

/

Emergency Brake Switch

1

/

Patient Handle

1

/

Display

2

/

Computer

2

/
