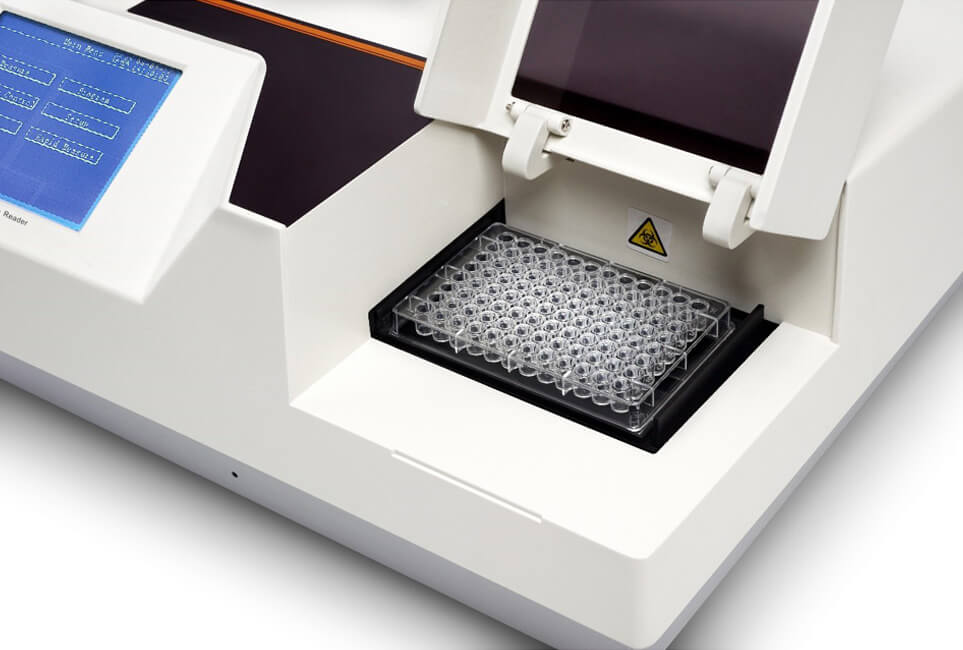

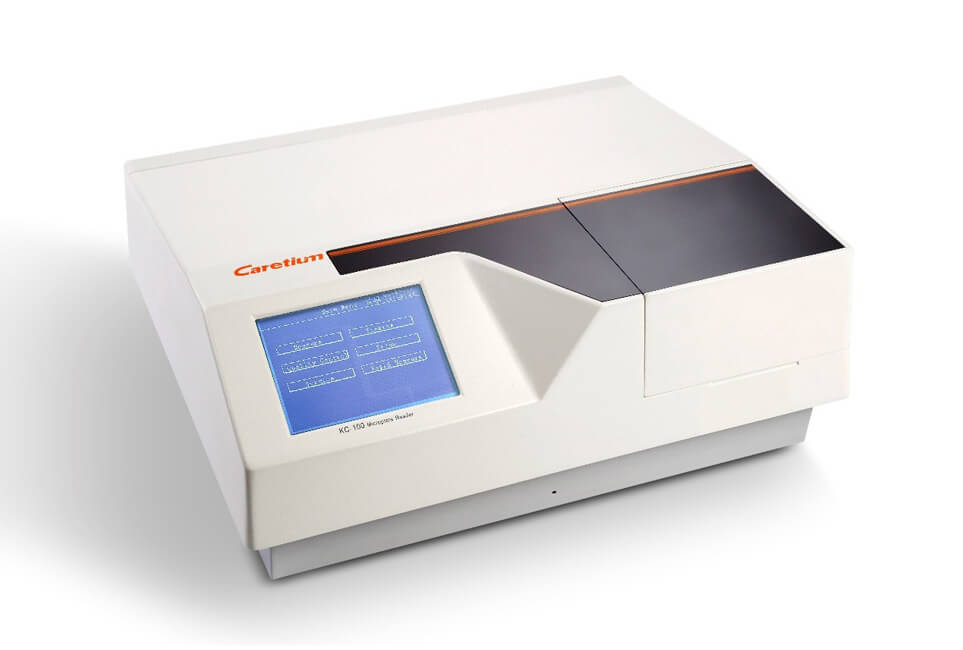

KC-100 Microplate Reader

  • 8-Channel optical measuring system.

  • Optional single/double wavelength analysis.

  • Extensive onboard data analysis.

Key Features of KC-100 Microplate Reader

  • Variable speeds linear shaking

  • Cut off(qualitative) and calibration (quantitative) data

  • Large storage for 2500 results

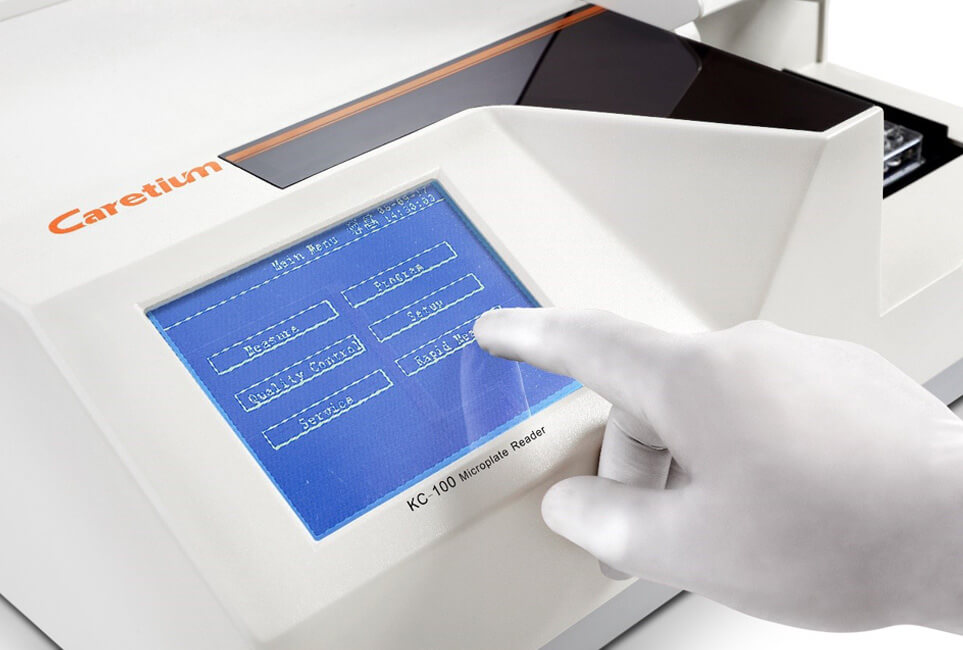

  • Touch screen, large LCD display

  • Possibility to connect with an external printer

Technical Specifications of KC-100 Microplate Reader

  • Detection method: Absorbance

  • Microplate types: 96-well plate (UV or flat-bottom)

  • Measuring system: 8-Channel optical system

  • Reading speed: 12s single wavelength, 30s double wavelength

  • Light source: Tungsten Halogen, 12v/20w, >2000hours

  • Wavelength: 405nm, 450nm, 492nm, 630nm, 4 free positions for additional filters

  • Onboard software: 42 user-programmable protocols

  • Reading range: 0.001-3.500Abs

  • Measuring range: 0.001-2.500Abs

  • Photometric accuracy:<1% or ±0.001Abs

  • Wavelength accuracy:<2 nm

  • Repeatability:<1 %

  • Stability:<0.005Abs/10min

  • Linearity:<2.0 %

  • Shaking: linear shaking; low, medium, high

  • Input: Touch screen

  • Display: Large LCD display

  • Power supply: AC 200V/110V ±10%, 50/60Hz

  • Operating environment: Temperature: 10 ºC ~40 ºC, Humidity: 20%~85%

  • Dimension: 420mm(H) ×400mm(W) ×200mm(D)

  • Weight: 9.6kg

Contact Us
Submit a business inquiry about All Trusted’s medical equipemt.
Contact Us
Get In Touch with All Trusted
With over 15 years' experience in medical device market in China, we provide a total solution for new hospital setting-up, NGO's medical project and mobile clinic solution.

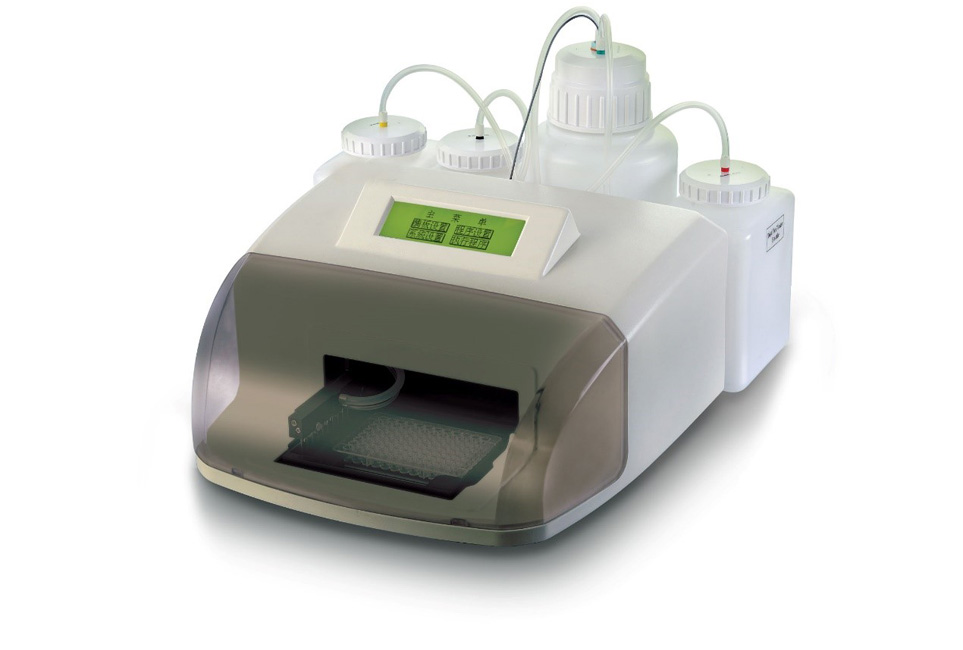

Related Microplate Reader&Washer
