  • D8d Electric Hospital Bed
  • D8d Electric Hospital Bed

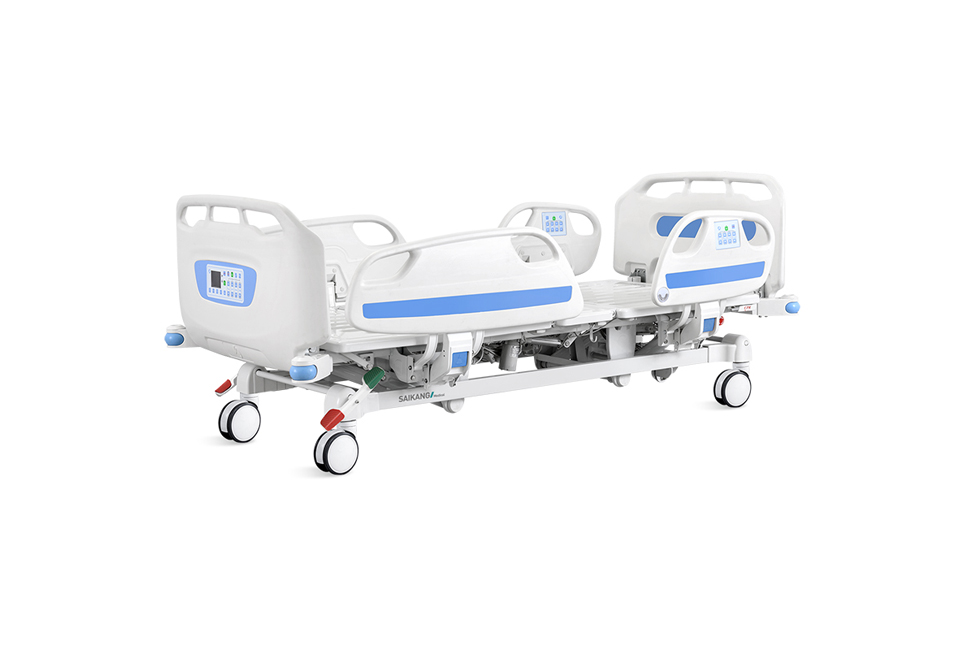

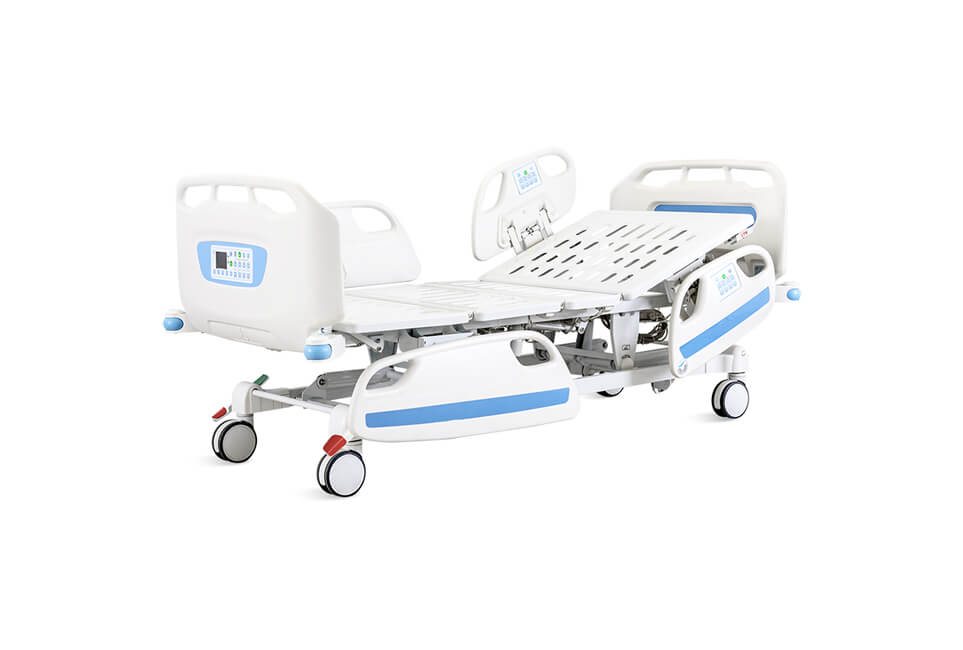

D8d Electric Hospital Bed

  • Grace care series

  • 5 functions electric

  • USFDA, EN60601, CE, ISO, SFDA

  • Big LCD screen nurse control panel

Key Features (Optional) of D8d Electric Hospital Bed


  • Weighing system with LCD screen

  • Bed extension 200mm

  • Back up battery

  • Cardiac position

  • ABS bed surface

  • x-ray bed surface

  • Monkey pole

  • Balkan traction frame

  • Directional wheel function



Technical Parameters of D8d Electric Hospital Bed


External L*W*H

2280x1090x(435-725)mm

Knee-rest adjustment

0-35°(±10°)

Mattress platform

1925x900mm

Back-rest adjustment

0-75°(±10°)

Safe working load

250kg

Reverse trendelenburg

0-12°

Trendelenburg

0-12°

Angle indicator

0-90°



Technical Configuration of D8d Electric Hospital Bed


Linear motor

4pcs

5" double side secure® castors, central locking

4pcs

ABS grace side rail with integrated control panel

1set

ABS grace bed ends with Integrated LCD control panel

1set

Φ85mm wall bumper wheel

4pcs

Trapeze socket

2pcs

IV pole

1set

IV pole prevision

4pcs

Drainage hook

2pcs

Central locking pedal

2pcs
