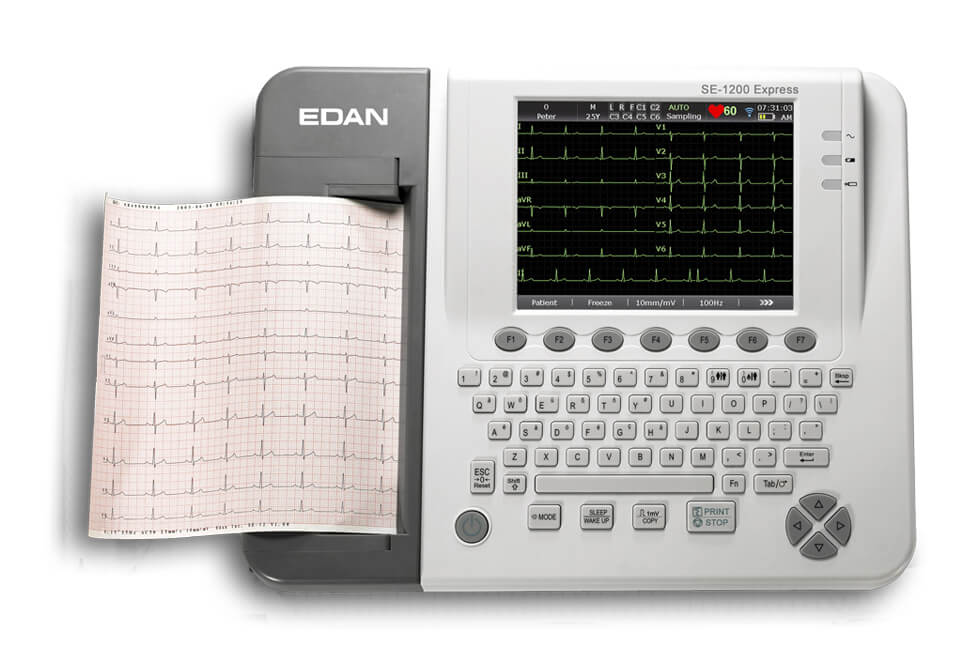

SE-1200 Express ECG

SE 1200 Express -12 channels ECG, provides an easy-to-use experience to customers as well as professional analysis for various clinical demands. Enhance your ECG efficiency with clinically oriented designs. The SE-1200 Express ECG devices support your diagnosis with trustful references, satisfying every demanding need of your practice.

Key Features of SE-1200 Express ECG

  • 8" high-resolution color touch screen

  • One-touch operation with age and gender shortcuts

  • Support linear/2D barcode scanner to simplify workflow

  • Built-in high-resolution thermal recorder to print on normal thermal paper and A4 size fax paper

  • Internal storage up to 800 ECGs and can be enlarged by USB flash disk

  • SE-1515 Data Management System software for data management on PC (optional)

  • DATA transmitting to PC via LAN/ internal Wi-Fi (Wi-Fi is optional)

  • Report formats: PDF and optional SCP/FDA-XML/DICOM data export

  • Bi-directional data communication with DMS

  • Weak signal detection with the advanced 24-bit A/D converter technology

  • Anti-noise technology with comprehensive filters and high CMRR over 140dB

  • 120s real-time ECG waveform freezing and review to assist diagnosis

  • Automatic measurements and interpretation tested with CSE/AHA/MIT databases

  • Extend printing once arrhythmia is detected for further rhythm analysis


Specification of SE-1200 Express ECG

HR Range:

30 BPM ~300 BPM

Accuracy:

±1 BPM

Leads:

12 standard leads

Acquisition Mode:

simultaneously 12 leads

A/D Converter:

24 bits

Resolution:

2.52uV/LSB

Time Constant:

≥3.2s

Frequency Response:

0.01Hz ~ 300Hz (-3dB)

Gain:

1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC

Input Impedance:

≥100MΩ (10Hz)

Input Circuit Current:

≤0.01μA

Input Voltage Range:

≤±5 mVpp

Calibration Voltage:

1mV±2%

CMRR:

≥140dB (AC on)
