  • LF05A Continuous Flow Oxygen Concentrator

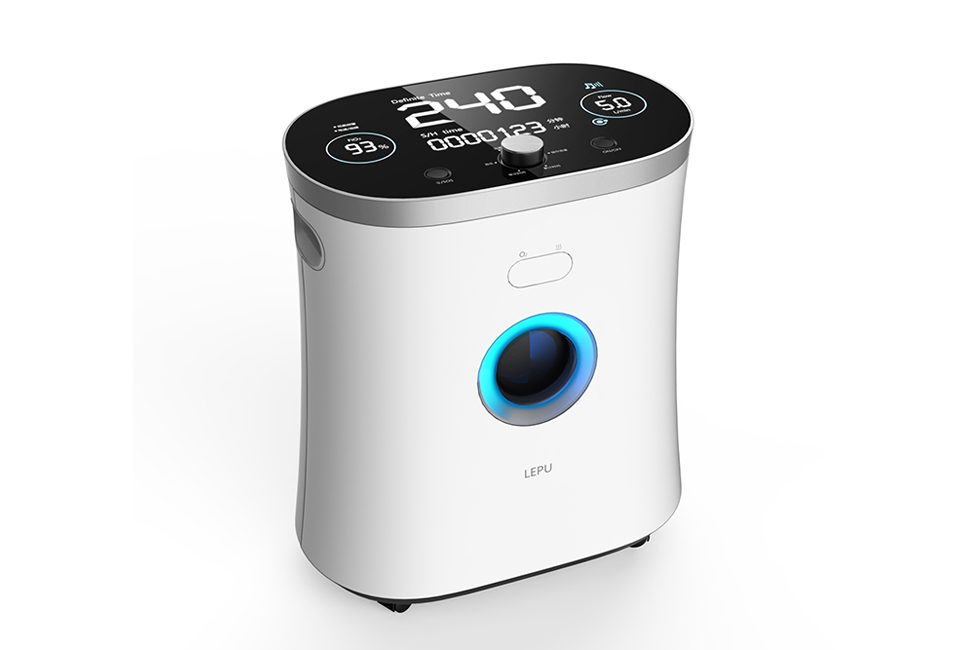

Oxygen Concentrator LF05A

LF05A is a 5L Oxygen Generator with a fashionable appearance, various functions, unique remote control configuration, simple structure, and convenient operation.

Key Features of Oxygen Concentrator LF05A


  • Large-screen display

  • Built-in water tank

  • Remote control

  • With an atomizing function

  • Up to 11 alarm items

  • Condensate drainage design (patent)

  • Porous muffler hose (patent)

  • Hidden oxygen/atomizing nozzle, which is not easy to adhibit dust, and cleaner

  • Rear-cover storage box for storing remote control or nasal oxygen cannula

  • Guangshun high-quality high-power oil-free air compressor

  • French CECA imported molecular sieve for more lasting and stable oxygen generation



Specifications of Oxygen Concentrator LF05A


Oxygen concentration:

≥ 90% (V/V) (percent by volume at 5 L/min)

Oxygen discharge pressure:

30-60 kPa

(maximum pressure at the oxygen outlet)

Atomizing rate:

0.12 ml/min - 0.90 ml/min

Running noise:

≤ 60 dB(A)

Dimension:

450mm×300mm×550mm

Net weight:

≈ 16.5 KG

Rated voltage:

a.c.220V 50Hz

Classification of electric shock degree:

Applied parts of BF type

Electromagnetic compatibility:

Class B, Group 1 according to GB4824

Classification of safety degree:

Non-AP/APG type. Not suitable when the flammable anesthetic gas is mixed with air, or oxygen or nitrous oxide

Model/specifications:

LF05A

Oxygen flow:

1-5 L/min (adjustable)

Input power:

450VA

Atomizing pressure:

30~120kPa

Capacity of storage tank:

About 2 ml-8 ml

Service life:

5 years

Electric shock protection classification:

Class II

Degree of protection against liquid inlet:

IPX0 unprotected equipment

Classification of running modes:

Continuous running

Software version:

V1.0
