  • MA-6000 Rt Pcr Equipment

MA-6000 Real-Time Quantitative Thermal Cycler

Based on the development and promotion of real time pcr equipment for many years, combined with the optimization of innovative hardware, structure, and software, Molarray has launched a new real-time fluorescence quantitative PCR system- MA-6000.

Key Features of MA-6000 Real-Time Quantitative Thermal Cycler

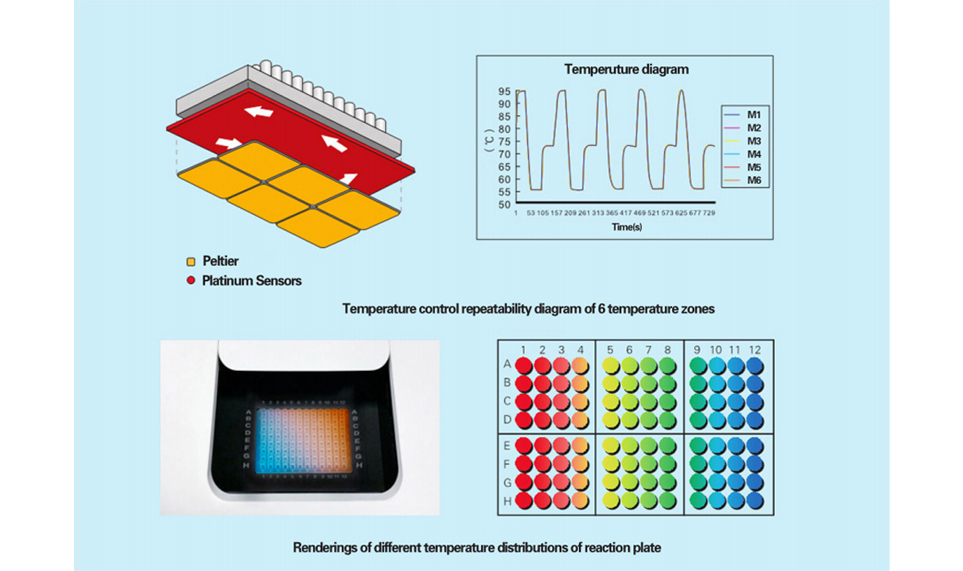

  • Six independent temperature control

  • Thermal compensation technology of temperature module

  • No edge effect of temperature and optics have

  • Maintenance-free long-life continuous spectral excitation source

  • Synchronous and fast acquisition of low-temperature CCD 0.15s in a cold state

  • Relative quantitative high sensitivity 1.5 times effective discrimination

  • Flexifoil, the open and user-friendly software platform

  • Open reagent consumable platform

  • Gold team, intimate service jet you have no worries about your experiment


Technical Specifications of MA-6000 Real-Time Quantitative Thermal Cycler

Tube capacity

96x0.2m I

Apply consumables

02ml single tube, 8x02ml row tube, 96-hole plate (applicable to domestic tube)

Temperature control range

4℃~99℃

Heating speed

5℃/S (Max), 3.5℃/S (Avg)

Cooling speed

5℃/S (Max), 3.2℃/S (Avg)

Temperature control accuracy

0.1℃

Temperature uniformity

±0.25℃

Temperature accuracy

±0.1℃

Number of temperature control areas

6

Excitation light source

Full-wavelength maintenance-free halogen tungsten lamp

Excitation light wavelength range

380nm~780nm

Number of excitation channels

5 (Can be extended to 6 channels)

Detector

-20℃ C CD

Detected light wavelength range

380nm~780nm

Detection channels number

5 (Can be extended to 6 channels)

Suitable dyes and probes

FAM/SYBR Green/LC Green/Fluorescein, VIC/HEX/TET/Cy3/Cy3.5/JOE/Yellow555, ROX/Texas Red, Cy5/Cy5.5

Confidence

It can effectively distinguish 5000 and 10000 copies with a 99.8% confidence degree

Software functions

Absolute quantification, Relative Quantification, Genotyping, Amplification

Hot cover

Electric hot cover

Automation platform

It can be used with an automatic workstation to improve work efficiency

Linearity range

10°-1010

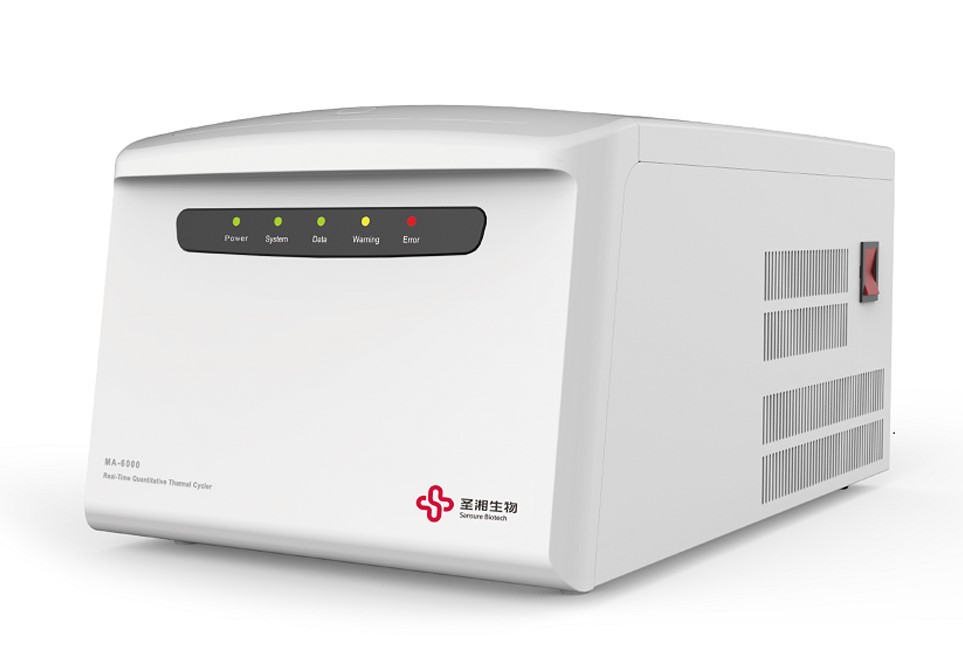

Images of MA-6000 Real-Time Quantitative Thermal Cycler
