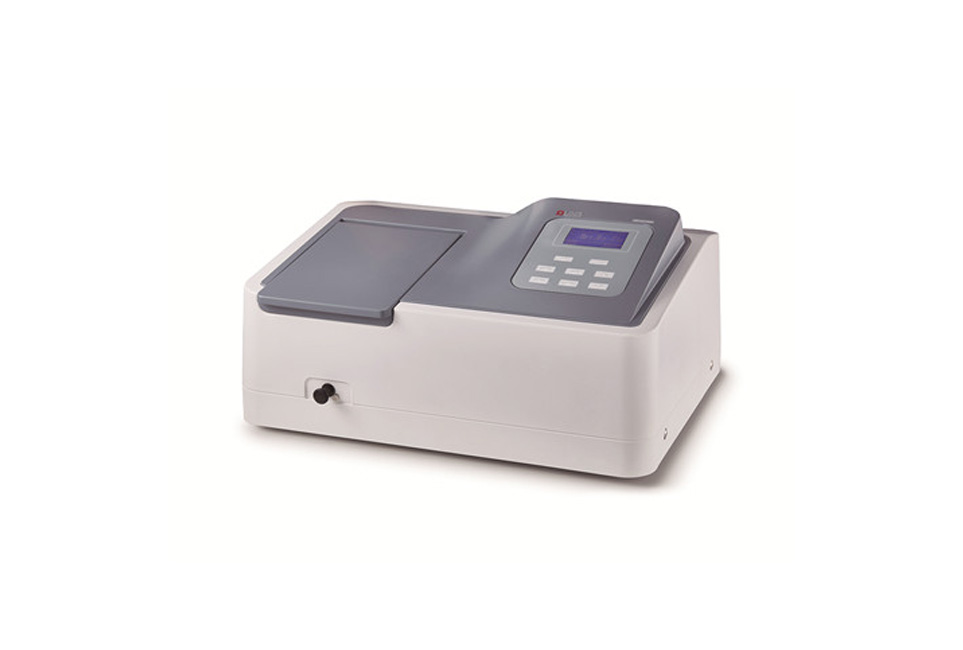

Laboratory Spectrophotometer SP-UV1100

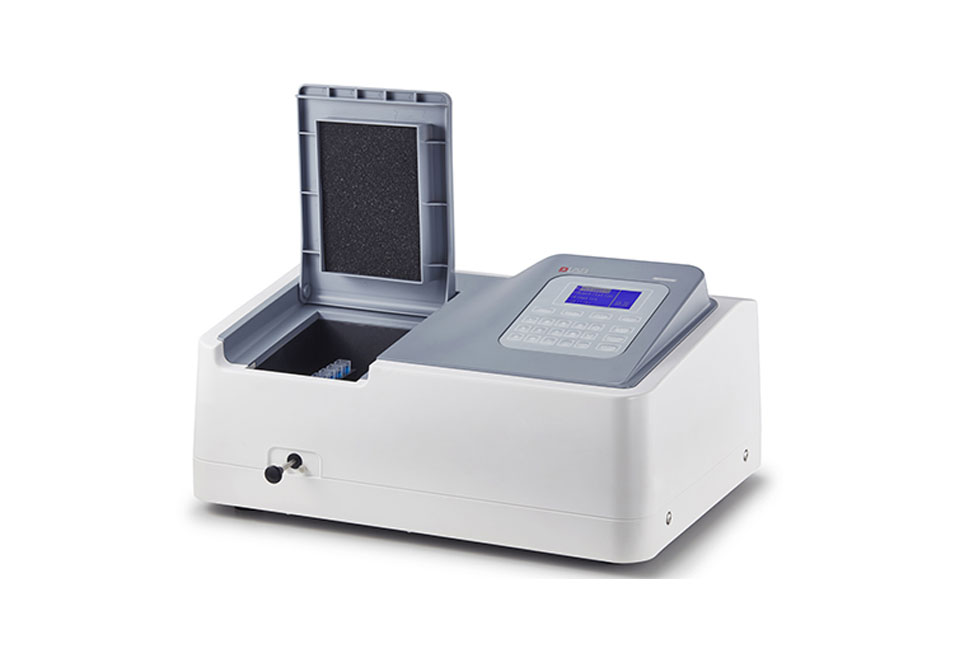

Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.

Key Features of Laboratory Spectrophotometer SP-UV1100


  • Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.

  • Automatic Switching: Tungsten& Deuterium lamp switching is automatic. Selectable from a wavelength range of 190 to 1100nm.


Product Parameters of Laboratory Spectrophotometer SP-UV1100


Specifications

SP-UV1100

Optical System

Single Beam

Light Source

Tungsten lamp & Deuterium lamp

Spectral Bandwidth

2.0nm

Wavelength Range

190-1100nm

Wavelength Accuracy

±0.5nm

Wavelength Repeatability

≤0.3nm

Photometric Range

-0.3-3.0A, 0-200%T

Photometric Accuracy

±0.002A@0.5A,
±0.004A@1.0A,
±0.3%T@100%T


Photometric Repeatability

≤0.001A@0.5A,
≤0.002A@1.0A,
≤0.15%T@100%T

Stability

≤0.002A/h @500nm
(after preheat 2 hours)

Stray Light

≤0.05%T@220&360nm

Sample Compartment

4-position, 10mm pathlength cuvette

Display

LCD

Output

USB Port & Parallel Port (Printer)

Power

110/220VAC, 50/60Hz, 120W

Dimension (L×W×H)

490×360×210mm

Weight

14kg
