  • Reverse Osmosis (RO) Water Treatment System

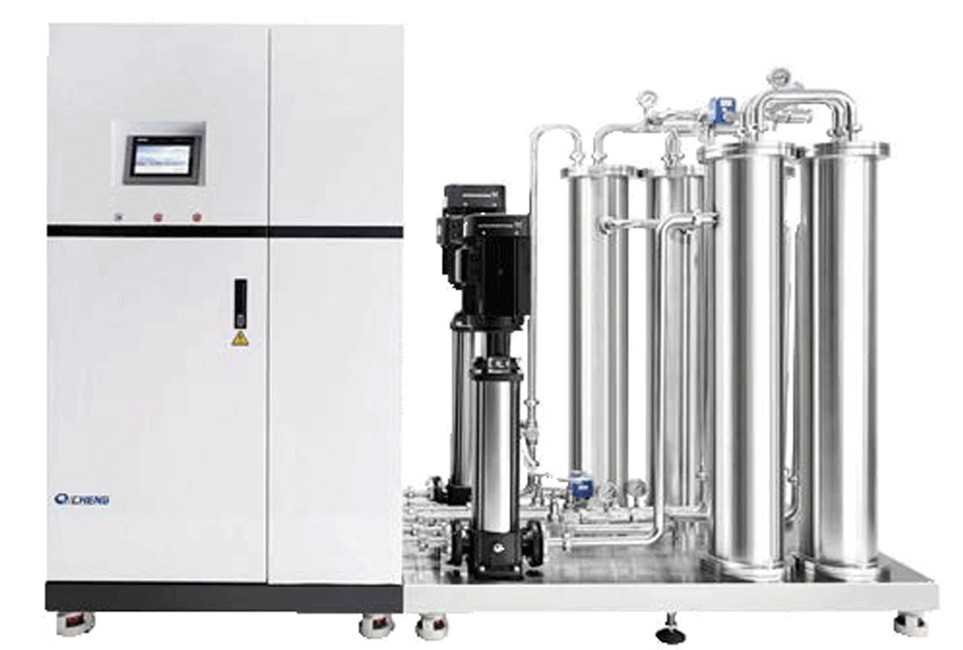

Reverse Osmosis (RO) Water Treatment System

  • Piping design in line with fluid mechanics

  • No dead chamber and shell structure

Features of Reverse Osmosis (RO) Water Treatment System


  • One touch cleaning and disinfection without manual intervention



Configuration of Reverse Osmosis (RO) Water Treatment System



No.


Subject

Model and Specifications

RO-JS1-250

RO-JS2-500

RO-JS2-750

RO-JS2-1000

RO-JS2-1500

RO-JS2-2000

1

Equipment main techniques

Pre-treatment + Double stage RO (directly connected) + Circulated pipes to all wards

2

Output water quality

Water quality meets the U.S. AAMI/ASAIO standard and latest dialysis water standard of YY0572-2015

3

Soluble salt removal rate

99.50%

4

Water flow(25oC water temperature)

250L/H

500L/H

750L/H

1000L/H

1500L/H

2000L/H

5

Total power

5KW

7KW

8KW

8KW

12KW

15KW

6

Installation site required

≥12m2

≥12m2

≥15m2

≥15m2

≥18m2

≥20m2

7

Host size (W×L×H)

1400×700×1720

1400×900×1600

1450×900×1600

1850×900×1630

1850×900×1630

1850×900×1630

8

Overall weight

520KG

770KG

1070KG

1430KG

1380KG

2130KG

9

Equipment operating   pressure

0.8~1.2 Mpa

10

Ratio of recycle

50~75%

11

Disinfection

Peracetic acid as chemical disinfection and heat disinfection as option

12

Control system

SIEMENS PLC programmable controller, software version 4.9084

13

Interface

SIEMENS touch screen

14

Power supply

AV 380V±10% three-phase-five-wire system, frequency:50~60HZ

15

Water inlet

City tap water meets standard of GB5749, temperature 5~40 degrees

16

Drainage and ground

Floor with drainage site and waterproof treated floor

17

Indoor environment of installation

Indoor air humidity≤80%
