  • KL-D Electric OT Table

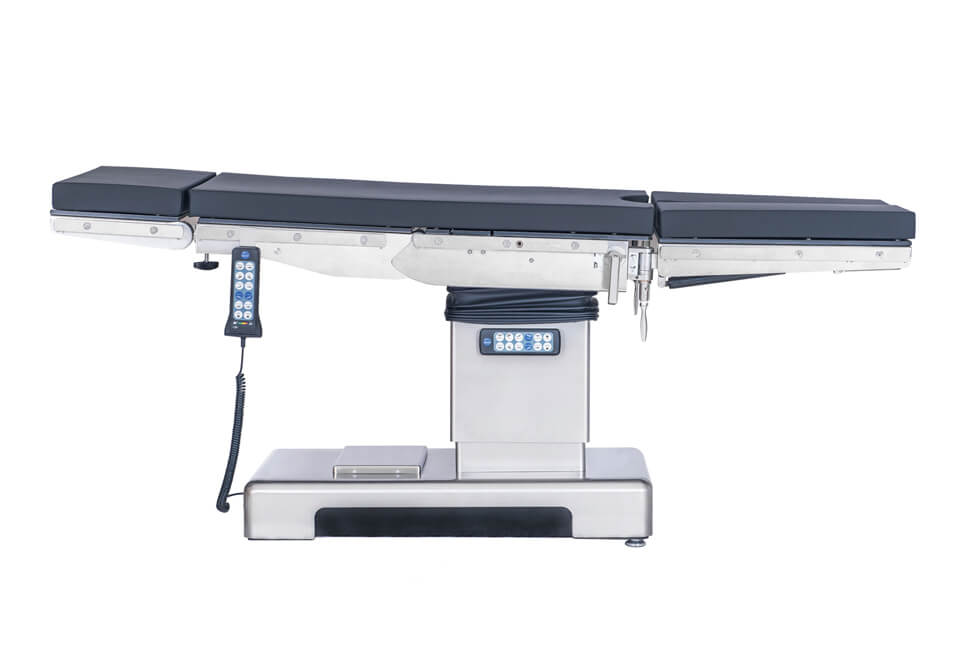

KL-D Series Operating Table

KL-D Series (KL-D·IA-I, KL-D·IA-II, KL-D·III, KL-D.III-I, KL-D·III-II, KL-D·III-III, KL-D·V) Electric Operating Table is a cost-effective, multi-performance mobile operating table that meets the requirements of different surgeons.

Key Features of KL-D Series Operating Table


  • Electro-hydraulic mode of operation is adopted. Two control modes (hand-held remote controller and panel) are available to control various movements. MCU processing is used.

  • Self-locking function is provided to avoid false triggering.

  • Quality stainless steel 304 is used for table support, base plate, column shield and rails on both sides of the table, easy for cleaning and sterilization.

  • The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.

  • Quality carbon steel plate is used for the table top, which is convenient for X-ray photography.

  • It has the function of auto-restoration. The table top can slide

  • Electric braking device, convenient for shifting the operating table.

  • Standard Accessories: A pair of shoulder and waist support frame, a pair of arms resting frame, a pair of leg support frame, a screen frame.



Specifications of KL-D Series Operating Table


Mode

KL-D·III

Table Length mm

2000±100

Table Width mm

520±20

Height Adjustment mm

(700~1100) ±50

Tilt (Left) / Tilt (Right)

≥18°

Trendelenburg / Rev-Trend

≥25° / ≥35°

Head board Upwards

≥50°

Head board Downwards

≥90°

Backboard Upwards

≥70°

Backboard Downwards

≥30°

Waist board lifting mm

100±20

Leg board Upwards

≥10°

Leg board Downwards

≥90°

Leg board Outwards

≥180°

Lumbar upper corner “∧” / Lumbar lower corner “∨”

≤150° / ≤110°

Horizontal and longitudinal movement mm

300±30
