  • YX932S Electric Suction Apparatus

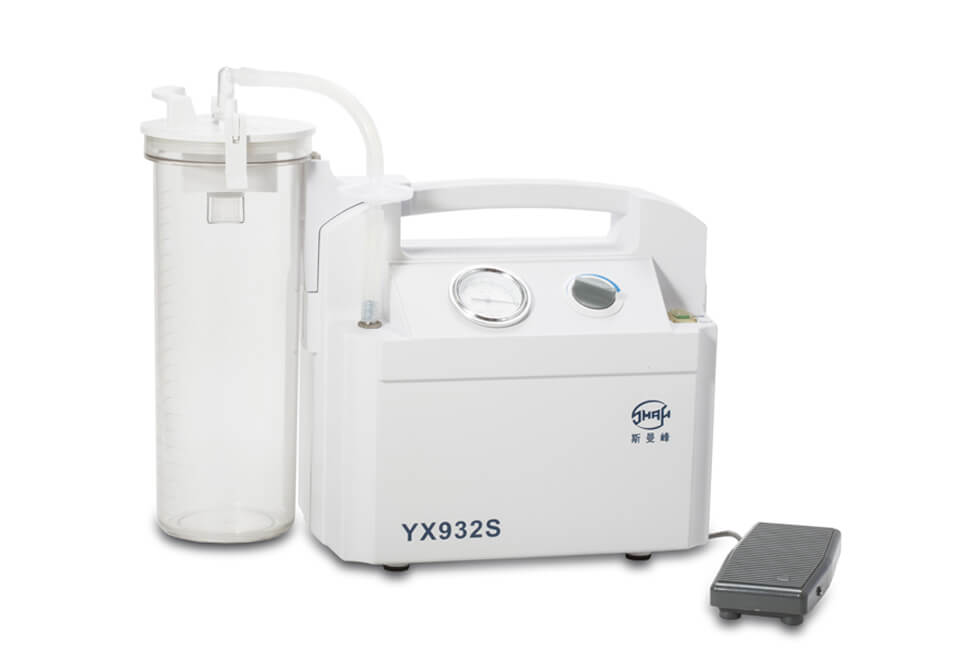

YX932S Electric Suction Apparatus

Model YX932S Portable Suction Apparatus offers high vacuum and high flow with double piston cylinders. It rapidly builds up a powerful vacuum within seconds. It provides a flexible and combinable container system to satisfy various applications in the clinic.

Key Features of YX932S Electric Suction Apparatus


  • Providing extremely efficient vacuum generation with maintenance- free and easy service.

  • The level of vacuum required is controlled by the vacuum regulator and showed on the vacuum meter.

  • The overflow protection device prevents liquid or solid particles from entering the intermediate tubing and pump; the bacterial filter for single use can eliminate airborne contamination.

  • Five kinds of jar configuration make it flexible to select, all jars available, made of polycarbonate (PC), are transparent, unbreakable and autoclavable.

  • A novel exterior, small size and light weight make it easy and comfortable to carry about.



Specifications of YX932S Electric Suction Apparatus


  • Max vacuum: ≥0.09MPa (680mmHg)

  • Adjustable vacuum range: 0.02MPa~0.09MPa

  • Flow rate: ≥32 L/min

  • Noise: ≤60 dB(A)

  • Jar: 2000mL* 1(PC) (standard configuration)

  • Power supply: AC220V 50 Hz

  • Input power: 150VA

  • Dimension: 545mm*260mm*375mm

  • G.W./N.W.: 7.5kg/5.5kg
