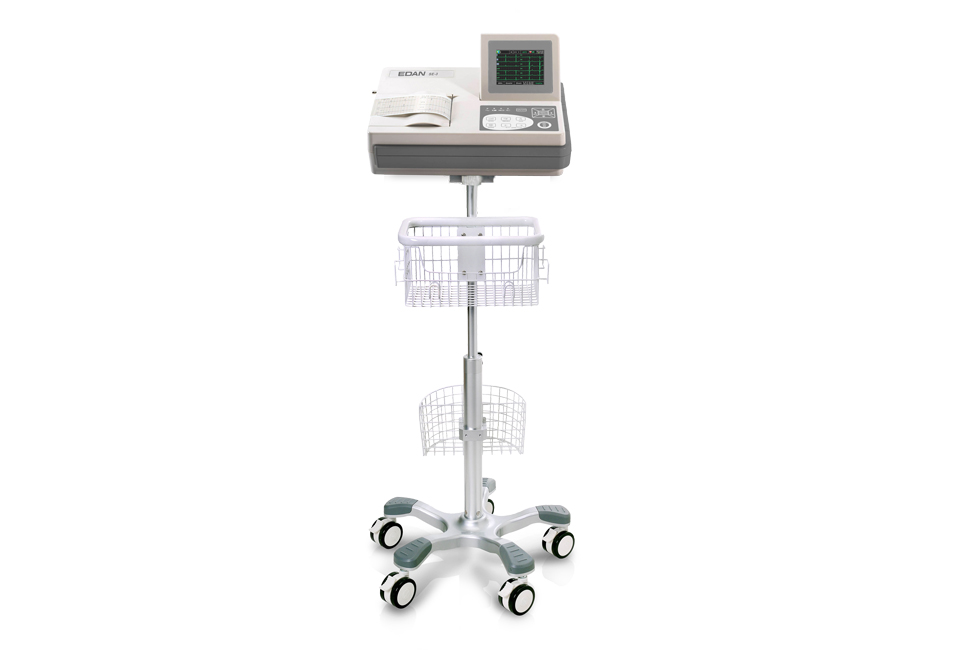

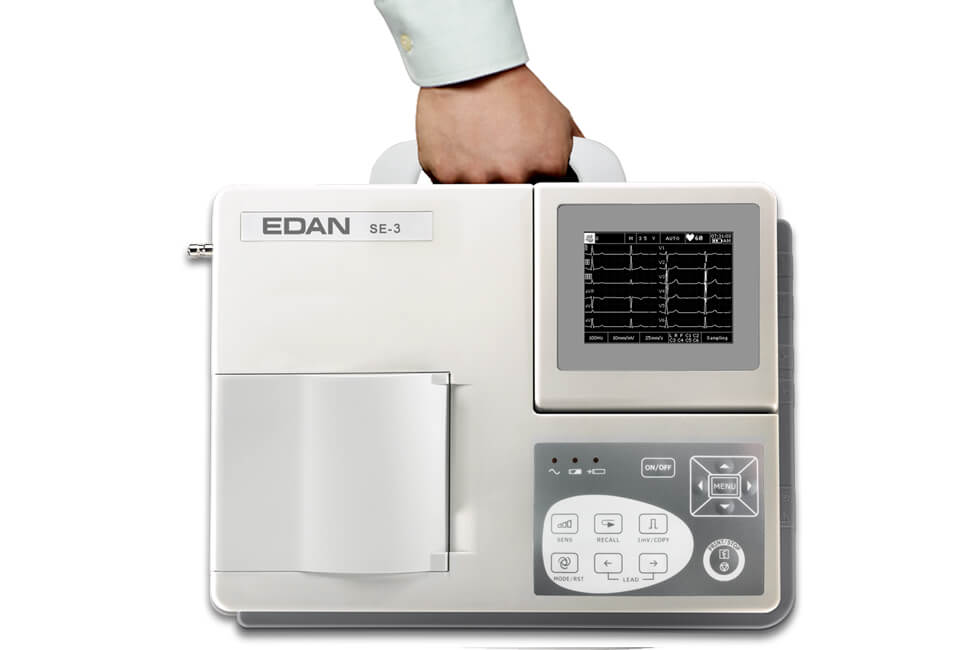

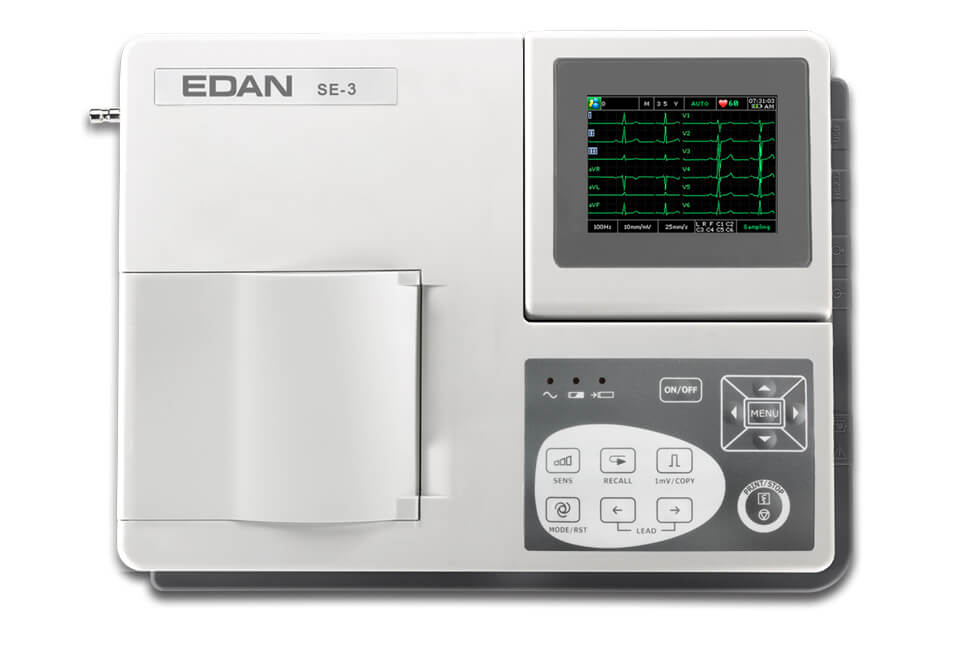

SE3 ECG

The SE-3 is a compact 3-channel ECG device that enables 12-lead simultaneous sampling and displaying. With the quick-start capability and one-button workflow, they can be your reliable assistant anytime on duty.

Key Features of SE3 ECG

  • User-friendly Interface

  • Accurate Sampling & Interpretation

  • Printing & Report Management

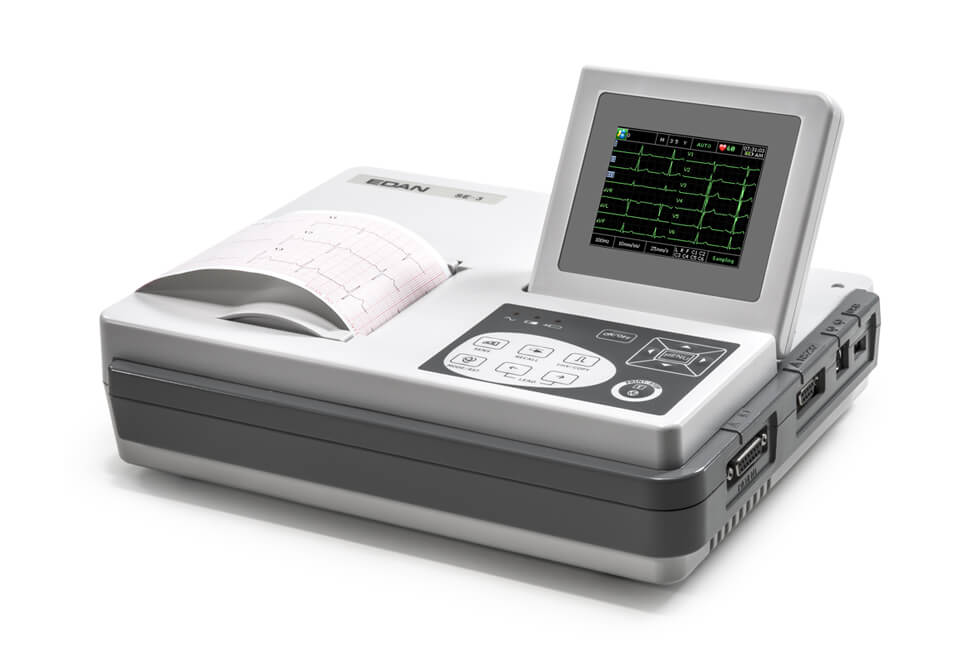

  • Foldable LCD screen, vivid waveform display

  • Built-in rechargeable Li-ion battery, AC/DC power supply

  • Support barcode scanner to simplify patient information input

  • One-button operation

  • Auto/Manual/Rhythm/Off work modes

  • Automatic baseline adjustment

  • Lead-off detection and alarm


Specification of SE3 ECG

Recorder:

Thermal dot-matrix recorder

Printing Density:

8 dots per mm / 200 dots per inch (amplitude axes)

40 dots per mm / 1000 dots per inch (time axes, @ 25 mm/s)

Recorder Paper:

Folded thermal paper, 80mm×70mm×200pages

Rolled thermal paper, 80mm×20m

Paper Speed:

5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s

HR Range:

30 BPM ~300 BPM

Accuracy:

±1 BPM

Leads:

12 standard leads

Acquisition Mode:

simultaneously 12 leads

A/D Converter:

12bits. (24 bits as optional)

Resolution:

2.52uV/LSB

Time Constant:

≥3.2s

Frequency Response:

0.05Hz ~ 150Hz (-3dB)

Gain:

2.5, 5, 10, 20, 10/5 mm/mV, AGC

Input Impedance:

≥50MΩ (10Hz)

Input Circuit Current:

≤0.05μA. (≤0.01μA as optional)

Input Voltage Range:

≤±5 mVpp

Calibration Voltage:

1mV±3%

CMRR:

≥110dB. (≥115dB as optional)

Sampling Frequency

1000Hz. (10000Hz for pacemaker as optional)

Amplitude:

±2mV ~ ±700mV

Width:

0.1ms ~ 2.0ms
