DF50 5-Part CBC Machine

  • Laser scatter + Chemical dye + Flow cytometry method.

  • 5-Part differentiation, 27 parameters, including 23 reportable parameters.

  • 3 Sample mode: whole blood, capillary whole blood and pre-diluted modes.

Key Features of DF50 5-Part Hematology Analyzer

  • Up to 60 tests per hour

  • Independent channel for Basophil measurement

  • 10.4 inches high-resolution TFT touch screen

  • Large storage capacity: up to 50,000 records

  • Support USB/LAN/bi-directional LIS

  • Support external inkjet and Laser Printer

  • 7 types of languages are available


Specifications of DF50 5-Part Hematology Analyzer

  • Detection Parameter: The detection items include 27 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Bas#, Eos#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, LIC%, LIC#, ALY%, ALY#.

  • 3 histograms for WBC, RBC, and PLT.

  • 3 DIFF scattergram and 1 BASO sacattergram.3 histograms, alarm for abnormal erythrocytes, leukocyte, and platelet.

  • Reagent: DIL-C Diluent, LYC-1 Lyse, LYC-2 Lyse, CLE-P

  • Throughput: 60 Sample/Hour.

  • Sample Volume: Minimum volume 15µL.

  • Principles: Impedance method for RBC and PLT counting.

       Cyanide-free reagent for a hemoglobin test.

       Flow cytometry (FCM) + Tri-angle laser scatter method for WBC 5-part differential analysis and WBC counting.

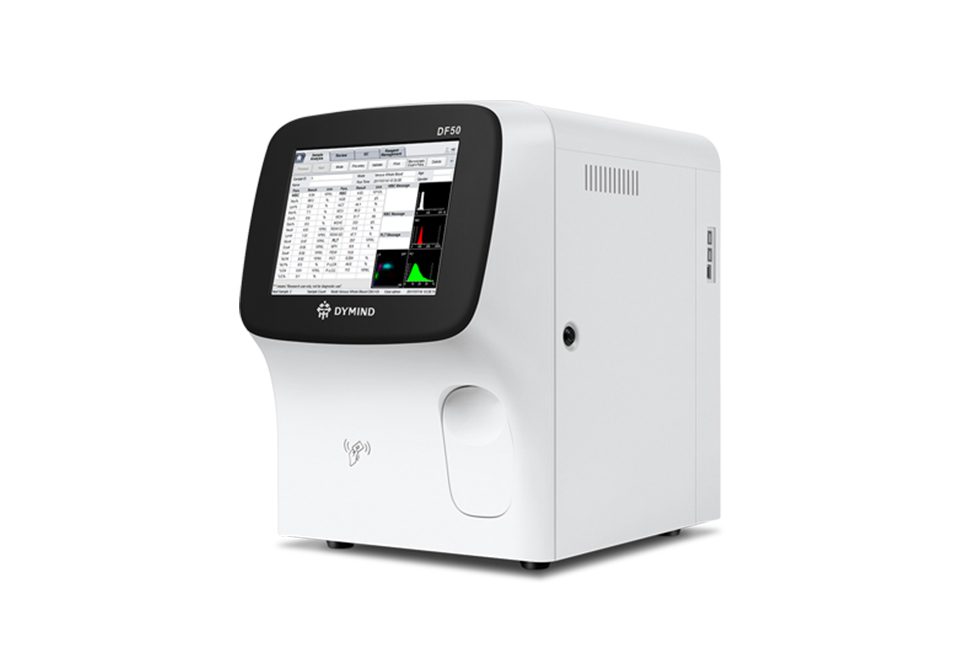

Images of DF50 5-Part Hematology Analyzer
