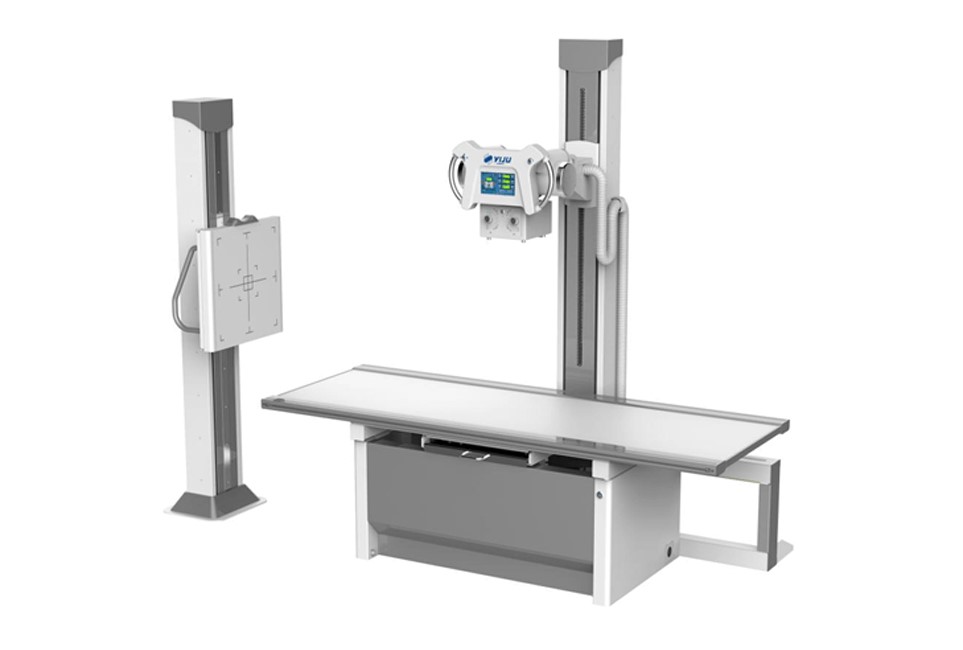

Analogue X-ray Machine

Since X-rays are absorbed in different degrees when passing through the human body, the amounts of X-rays passing through the human body is different, the density distribution of various parts of the human body is portable information, the intensity of the fluorescence or sensitization caused on the fluorescent screen or on the photographic film is quite different, so the fluorescent screen or on the photographic film (after development and fixation) will show shadows of different densities.

An Analogue X-ray Machine is suitable for photographing the head, limbs, thoracic cavity, waist and abdomen of the human body in wards, emergency rooms, operating rooms, ICUs, etc.

Key Features of Analogue X-ray Machine

  • Multibody parts, multi-position photography parameters for adults and children have been preprogrammed; easy to learn and operate even to new operators.

  • The compact design of the x-ray monoblock makes it much easier to install.

  • Self-protection and fault-code alarming function for much safer operating.

  • The bed can float freely, electromagnetic brake to make the photography position more accurate.

  • Standard: Bucky Stand: used for the vertical photography of head, chest, pelvis, limbs, and so on.

  • Standard: human graphical LCD touch screen control console makes compartment photography be possible.

  • High-frequency high voltage x-ray generator and high-frequency inverter power make excellent x-ray source, low skin dose, and more sharp image printed by x ray film printer.

  • Tableside human graphic color LCD touch screen for parameters setting, together with the remote control exposure method make the operation much safer and convenient.

  • Adopt the technology of kV closed-loop control and mAs digital closed-loop control to ensure the accuracy and reproducibility of the x-ray dose.


Specifications of Analogue X-ray Machine

Main Component                            Technical Spe.




X-ray generator

(including console)

Output Power

50KW

Power Voltage

380V±38V

kV range

40~150kV

mA range

10~630mA

mAs range

0.1 ~630mAs

Exposure time

0.002~6.3S


X-ray tube

Anode Heat Storage Capacity

240kHU

Small focus

0.6

Large focus

1.2

Anode speed

3000r/min


Collimator

Inherent filtration

1.0mm Al /75kV

Light Source

LED



Radiographic Table


Top Table Size

2100X800X650mm

Bucky Size

18X18inch

Table longitudinal movement

≥900mm

Cassette Movement Distance

≥500mm

Vertical Chest stand

Vertical moving range

≥1200mm


Images of Analogue X-ray Machine
