BYZ-810/BYZ-810D Infusion Pump

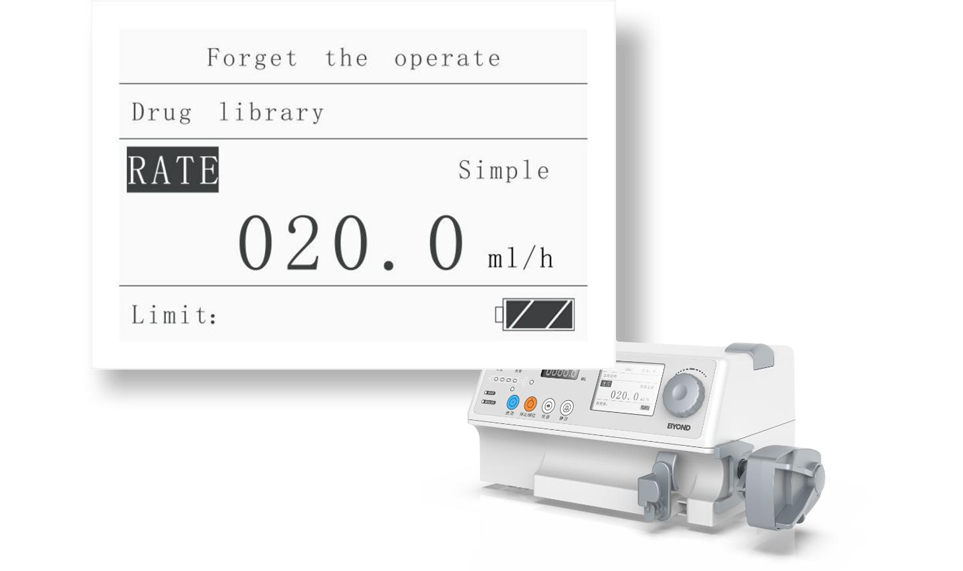

  • HD LCD Display, high capacity words, friendly user interface, dynamically display working status.

  • Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.

Key Features of BYZ-810/BYZ-810D Infusion Pump


  • Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;

  • Preset solution volume to greatly reduce the workload of nurses;

  • Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;

  • Three levels of occlusion: high, medium, and low;

  • KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h(0.1ml/h step);

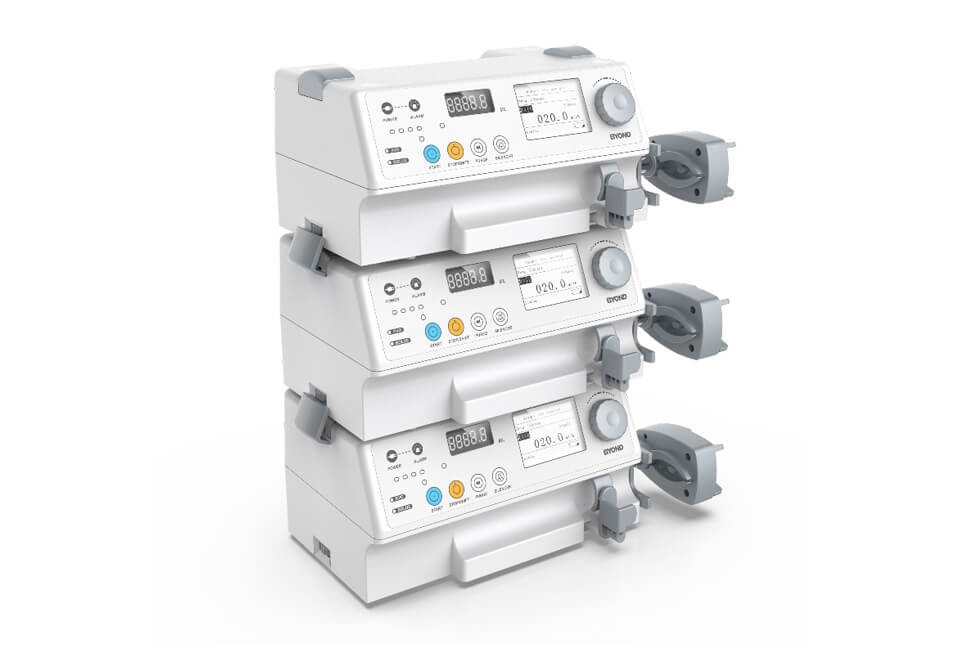

  • Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications.



Technical Specifications of BYZ-810/BYZ-810D Infusion Pump


Model

BYZ-810

BYZ-810D

Screen

HD LCD Display

HD LCD Display

Work modes

3 Work modes:
Rate mode
Time mode
Dosage weight mode

3 Work modes:
Rate mode
Volume time mode
Dosage weight mode

UI

English, Chinese, Russian can customize the language

Quick start, rapid installation

Auto-lock screen

Night mode optional

Syringe set

5ml, 10ml, 20ml, 30ml, 50/60ml

Syringe size detection

Autodetect syringe size

INFUSION rate range

0.1ml/h~1500ml/h (0.1ml/h step)

Volume to be infused (VTBI)

0.1---9999.9ml (0.1ml step)

Nominal flow rate accuracy

Within ±3%

Purge/Bolus

KVO, Bolus, Purge, Anti-bolus

KVO Rate

0.1~5ml/h (0.1ml/h step)

Obstruct pressure monitoring

3 Levels

CPU

Dual microprocessor controlled

Medicine Library

NO

1000 drugs

History

NO

2000 record

Power

100-240Vac, 50/60Hz; 4 hours backup time; DC 12V 2A optional


Model

BYZ-810

BYZ-810D


BYZ-810 1 Liter Syringe Pump


BYZ-810 1 Liter Syringe Pump

Screen

HD LCD Display

HD LCD Display

WiFi module

NO

NO

Communicate with Host

NO

NO

Work modes

3 Work modes:
Rate mode
Time mode
Dosage weight mode

3 Work modes:
Rate mode
Volume time mode
Dosage weight mode

Compatible dock station

NO

NO

UI

English, Chinese, Russian can customize the language

Quick start, rapid installation

Auto-lock screen

Night mode optional

Syringe set

5ml,10ml,20ml,30ml,50/60ml

Syringe size detection

Autodetect syringe size

INFUSION rate range

0.1ml/h~1500ml/h (0.1ml/h step)

Volume to be infused (VTBI)

0.1---9999.9ml (0.1ml step)

Nominal flow rate accuracy

Within ±3%

Purge/Bolus

KVO, Bolus, Purge,Anti-bolus

KVO Rate

0.1~5ml/h (0.1ml/h step)

Obstruct pressure monitoring

3 Levels

IP level

IPX2

Alarm

Audible and Visible Alarms

CPU

Dual microprocessor controlled

Medicine Library

NO

1000 drugs

History

NO

2000 record

Power

100-240Vac, 50/60Hz; 4 hours backup time; DC 12V 2A optional

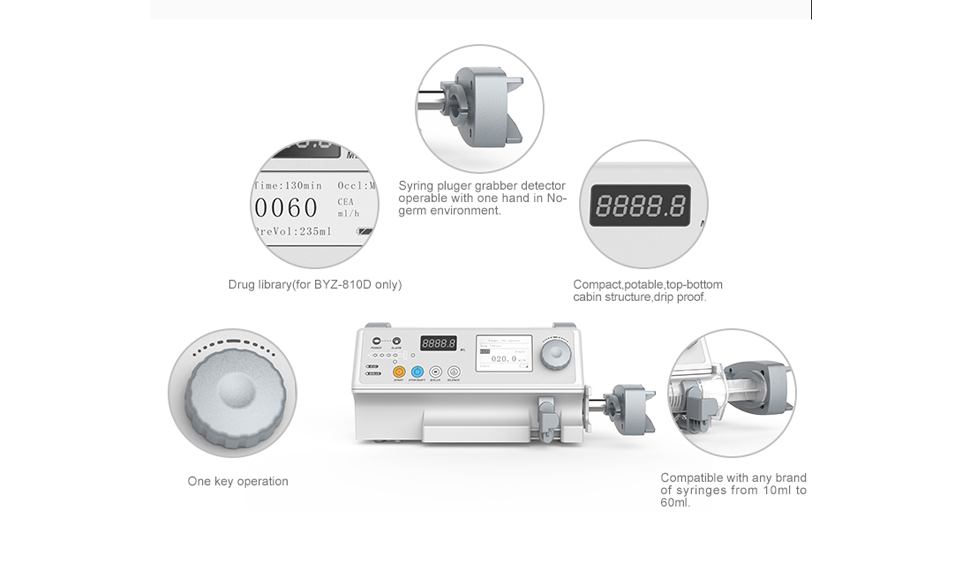

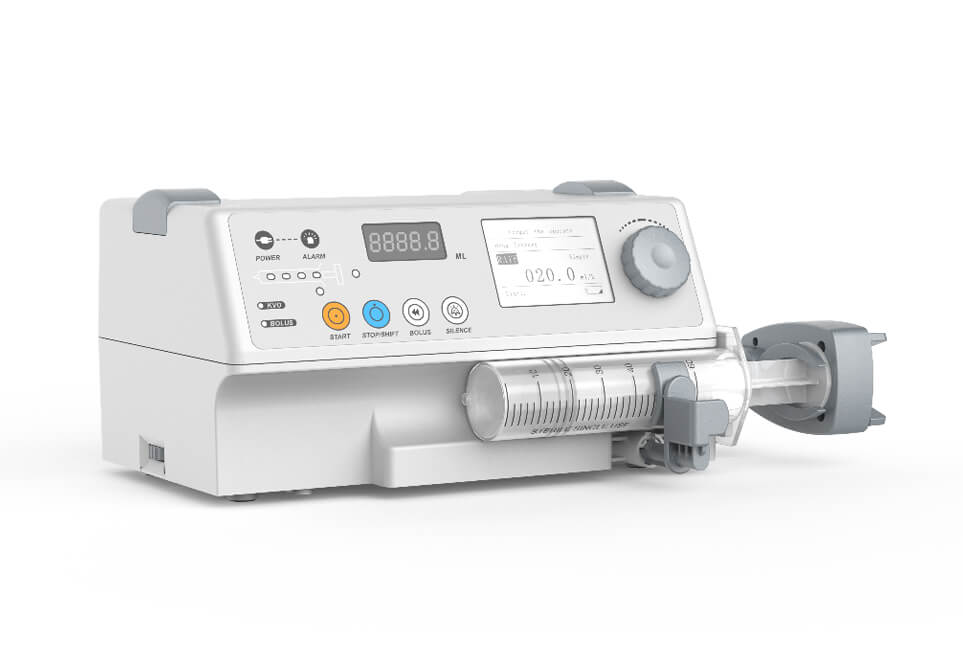

Image of BYZ-810/BYZ-810D Infusion Pump
