  • Hemoglobin Meter Kit

Hemoglobin(HB) Meter Machine

The hemoglobin machine produced by us, a professional HB meter manufacturer, is an IVD machine for detecting the hemoglobin content of the sample. Adopting an advanced photoelectric measurement system, with an automatic temperature compensation function, the proofreading memory of the HB digital meter machine has a one-time calibration automatic function, simple operation, convenient measurement, good stability, low cross-contamination, accurate measurement, small size, beautiful appearance, etc. We produce high-quality hemoglobin machine portable for sale, contact us now!

Hemoglobin(HB) Meter Machine Key Features

  • The hb hemoglobin testing system is intended for the quantitative determination of hemoglobin (Hb) and calculated hematocrit (Hct) in capillary and venous human whole blood.

  • The easy-to-operate system consists of a portable HB meter that analyzes the intensity and color of light reflected from the reagent area of a test strip, ensuring quick and accurate results.

  • The Hemoglobin Testing System provides results in less than 15 seconds and requires only a single drop of whole blood.

  • The meter can store up to 1,000 results and records can be transferred to a computer for further analysis using the USB port.

  • The meter can be operated by 3 AAA (1.5V) batteries or an optional AC adapter.


HB Hemoglobin Meter Technical Specifications

Feature

Specifications

Methodology

Reflectance Photometer

Test Time

<15 seconds

Measurement Range

3.0-25.6 g/dL, 30-256 g/L or 1.86-15.9 mmol/L

Sample

Whole blood

Sample Volume

10 μL

Power Source

Batteries: 3 x 1.5V, AAA(LR03)

Mini USB: 5 VDC, 50 mA, Use Only AC/DC adapter or PC certified and recommended.

Battery Life

100 hours or 1,000 tests

Units of Measure

g/dL, g/L, mmol/L

Memory

1,000 records

Automatic Shut Off

8 minutes after last use

Meter Size

142 mm × 70 mm × 27 mm

Display Size

50 mm × 50 mm

Weight

130 g   (without batteries)

Meter Storage Conditions

0 - 50℃ (32 -122℉); ≤90% RH; height ≤sea-level 2000m

Operating Conditions

2- 40℃(35.6 -104℉); ≤90% RH; height ≤sea-level 2000m

Analyzer Port

USB Port for Data Transfer or Power (optional)

Capabilities

USB Data Transfer Cable (optional)

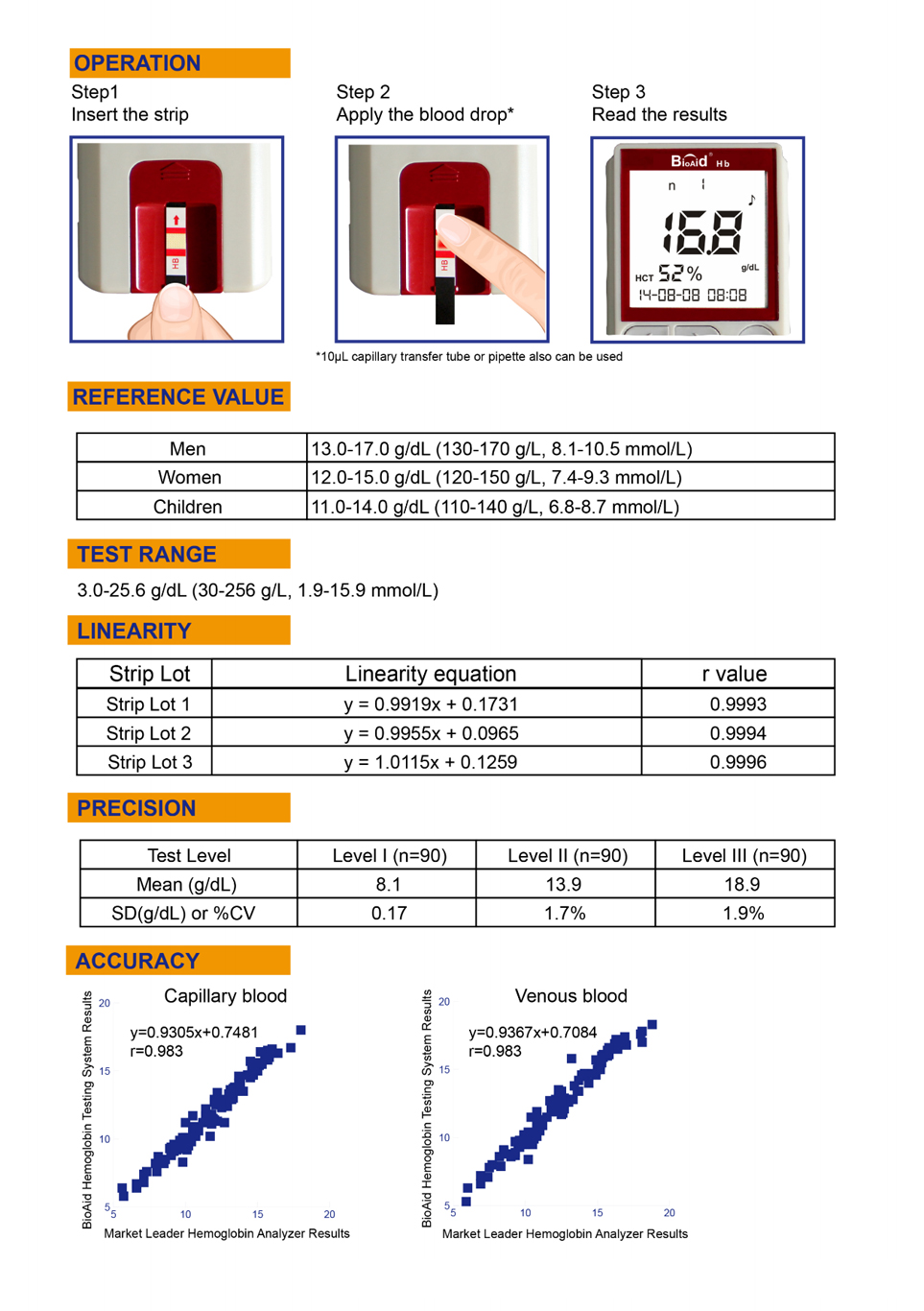

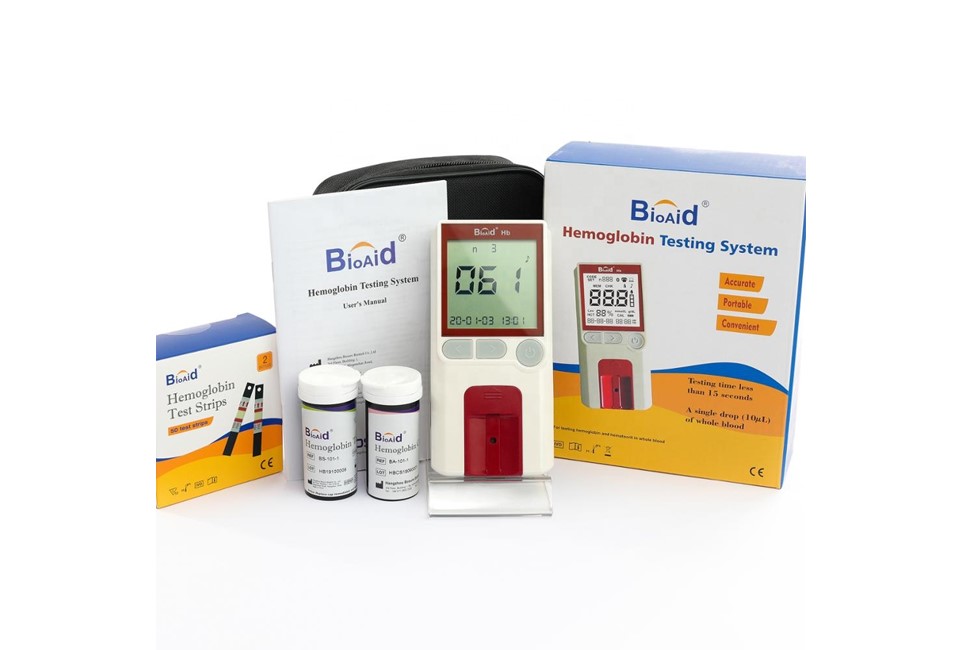

Hemoglobin Machine Images
