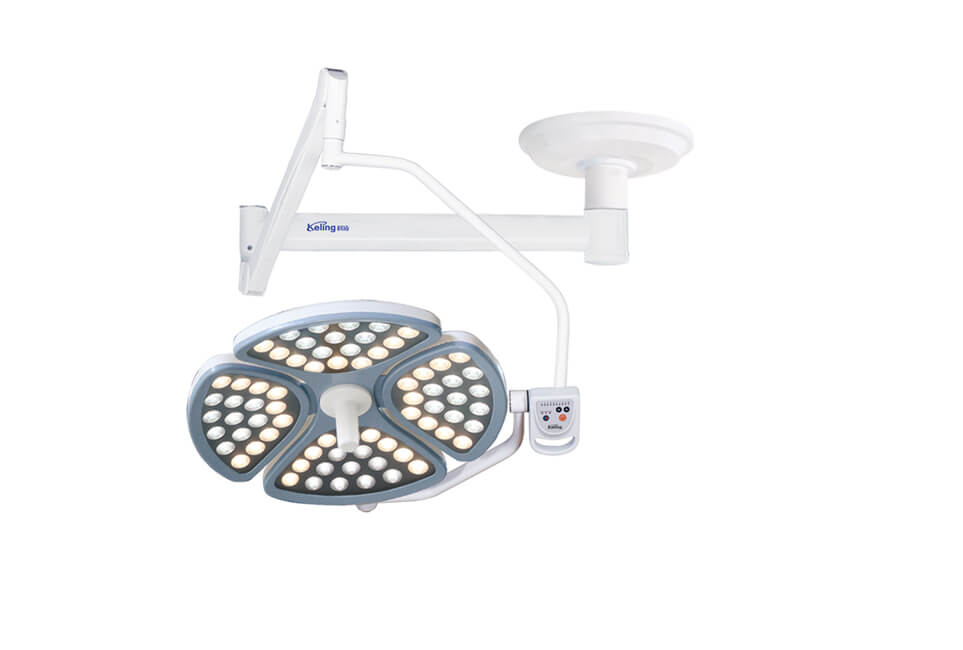

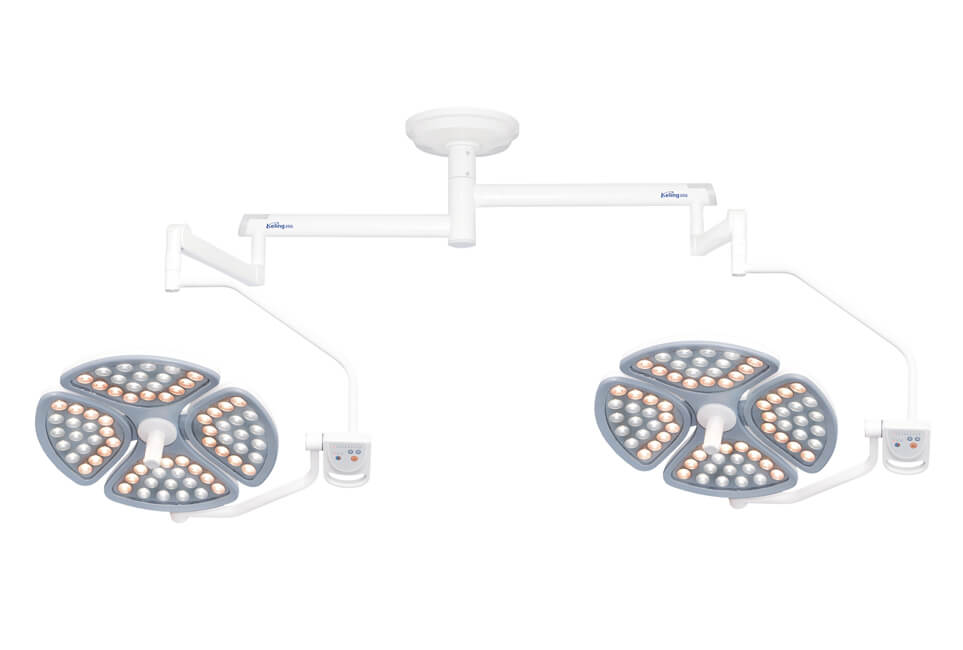

KL-LED·STZ4 Series Operating Light

KL-LED.SZ4 Series (KL-LED.SZ4/SZ4, KL-LED.SZ4, KL-LED.MSTZ4) LED Shadowless Operating Light is suitable for various operational needs. It is a modern ideal surgical lighting equipment operating room and purifies the operating room.

Key Features of KL-LED·STZ4 Series Operating Light


  • Adopt imported LED cold light source, white the ultra-thin optical lens.

  • Adopt digital means for stepless regulation of LED brightness.

  • Light field size can be adjusted by the handle.

  • The removable handle sheath can be disinfected at the high temperature of 135 ℃.

  • The service life of LED shadowless lamp is long (50,000h).

  • Adjust the diameter of light spot.

  • Removable handle sheath easy to clean and disinfect.

  • Flower-shaped super thin design light head Titanium alloy balance arm, no welding, never rust.

  • The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.

  • The no welding titanium alloy arm, imported spring arm is lifted and lowered easily and freely.



Specifications of KL-LED·STZ4 Series Operating Light


Mode

KL-LED·STZ4/STZ4

Diameter of lighthead (cm)

65

Lllumination at 1m(lux)

80000-160000 / 80000-160000

Light field diameter at 1m (cm)

10-28

D10(mm)

180±40/180±40

Diameter of spot D50(mm)

110±35/110±35

L1+L2 Depth of illumination(cm)

150

Color rendering index (Ra)

100≥Ra≥85

Optional color temperature(K)

(3500-4500)±500

Number of LED bulbs

72/72

Average bulb life (hours)

50000

Heat-to-light ratio (mW/m ²lx)

<6

Working distance(cm)

70-140

Power supply

100-240V, 50/60HZ

Input power (VA)

180

Ceiling height for installation(cm)

270-320
