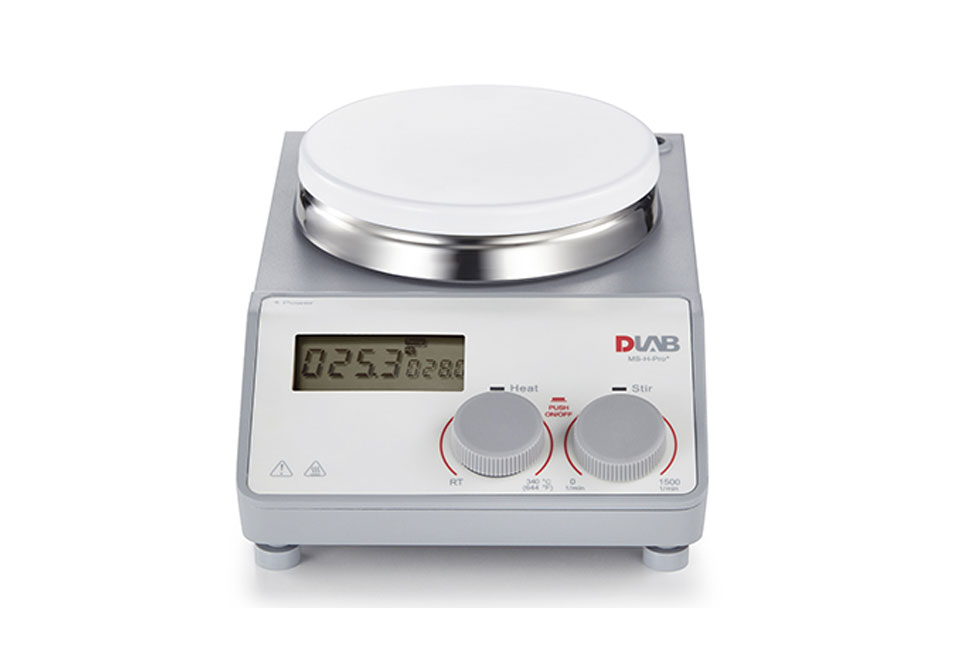

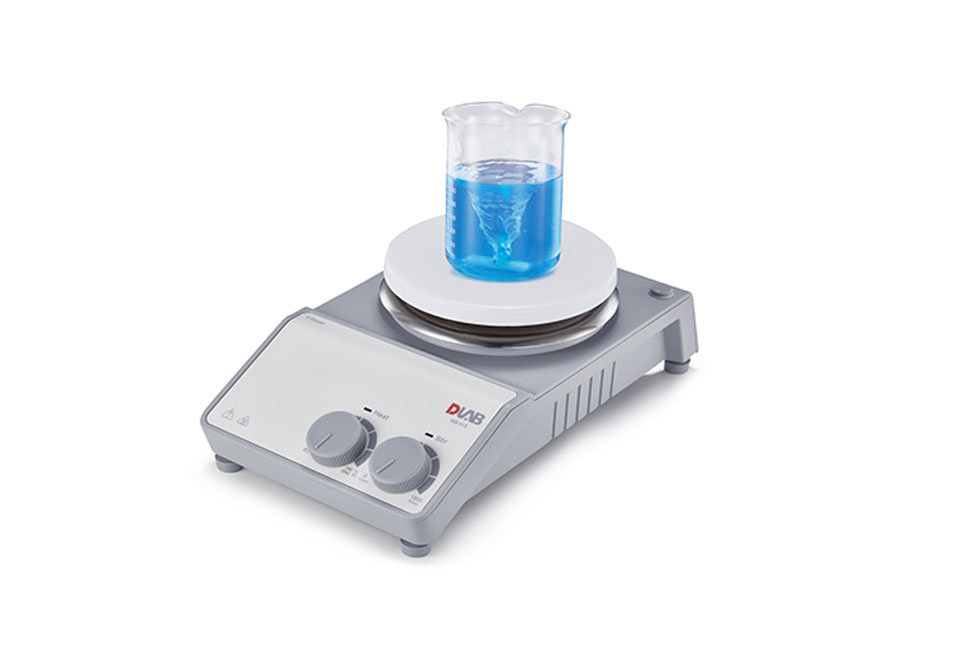

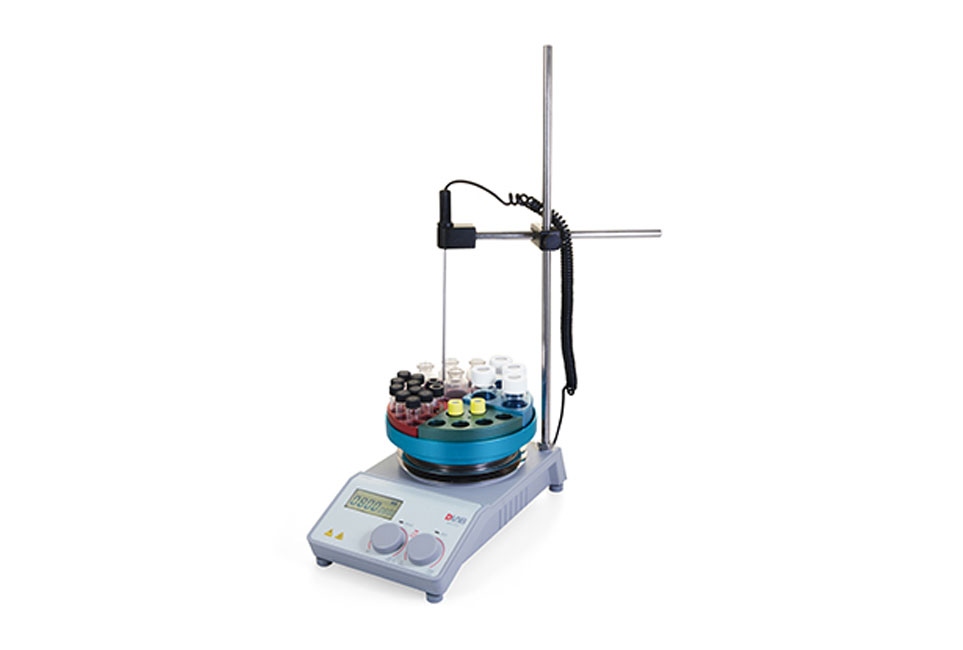

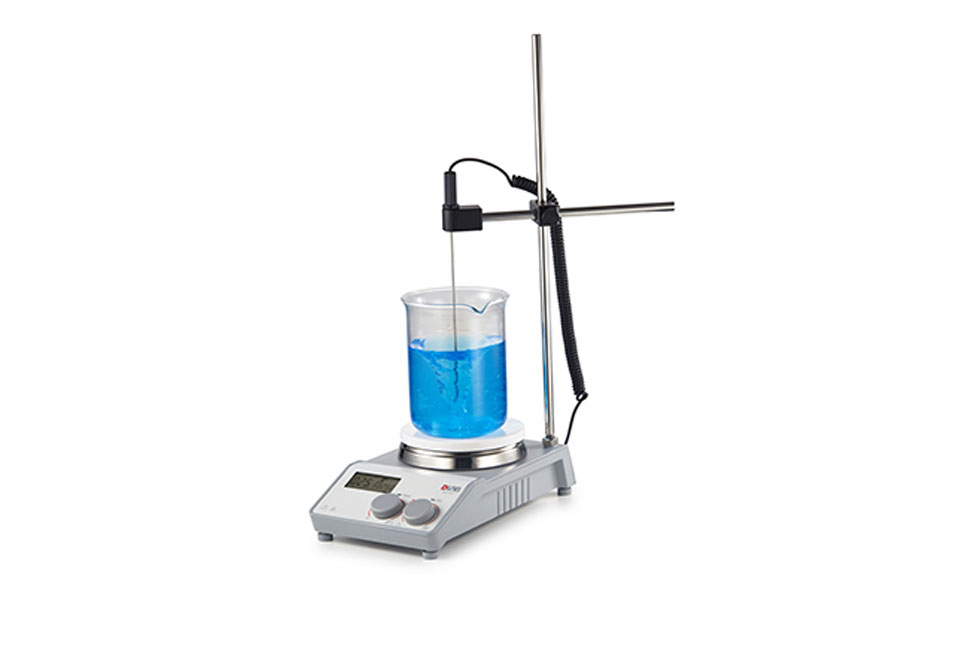

Laboratory Hotplate Stirrer MS-H-PRO+

  • Model: MS-H-PRO+, MS-H-PROT, MS-H-S, MS-H-PROA

  • Brushless DC motor is maintenance free and explosion-proof

  • Digital temperature control with max. the temperature at 340°C

  • Digital speed control with max. speed up to 1500rpm

Key Features of Laboratory Hotplate Stirrer MS-H-PRO+


  • Max. stirring quantity of H2O at 20L

  • Safety circuits provide overheating protection

  • The "HOT" warning will flash if the plate temperature is above 50°C even when the hotplate is turned off

  • High-resolution LCD display shows actual temperatures and speed

  • External temperature control is possible by connecting the temperature sensor with accuracy at ±0.2°C

  • Stainless steel work plate with ceramic coating provides good chemical resistant performance

  • Remote function provides PC control and data transmission

  • A wide variety of accessories are available



Specifications of Laboratory Hotplate Stirrer MS-H-PRO+


Specifications

MS-H-PRO+

Work plate dimension

φ135mm (5 inch)

Work plate material

stainless steel cover with ceramic

Motor type

Brushless DC motor

Motor rating input

18W

Motor rating output

10W

Power

550W

Heating output

500W

Voltage

100-120/200-240V 50/60Hz

Stirring positions

1

Max. stirring quantity [H2O]

20L

Max. magnetic bar[length]

80mm

Speed range

100-1500rpm
resolution±1rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room temp.-340°C, increment 1°C

Temperature control accuracy

±1°C(<100°c)>100°C)

Over temperature protection

420°C

Temperature display accuracy

±0.1°C

External temperature sensor

PT1000 (accuracy ±0.2)

"Hot" warning

50°C

Data connector

RS232

Protection class

IP42

Dimension [WxDxH]

160×280×85mm

Weight

2.8kg

Permissible ambient temperature and humidity

5-40°C, 80%RH
