  • Automatic Coagulation Analyzer

Coagulation Analyzer 02

This is an easy-to-use semi-auto coagulation analyzer with 2 independent working channels, small volume of sample and reagent is needed for tests to save cost, built-in printer is also available, for sure it is designed to meet the requirement of small lab or clinics.

Key Features of Coagulation Analyzer 02

  • Parameters: PT, APTT, TT, FIB, etc

  • Principle: Clotting, optical method

  • Disposable cuvette, no carry-over

  • Precise electronic pipette

  • Automatic start at reagent addition

  • Built-in thermal printer, auto & manual print


Technical Specifications of Coagulation Analyzer 02

  • 4 independent channels

  • Display: 5-inch screen

  • Cuvette incubation positions: 12

  • Reagent incubation positions: 5

  • Size: 345mm×325mm×145mm

  • Net weight: 4.4kg

  • Wavelength: LED 470nm

  • Memory: 10,000 results storage

  • Input: Keypad

  • Sample volume: 20-40μL

  • Reagent volume: 20-40μL

  • Electronic pipette: 20-200μL

  • Available dimensions: Seconds, mg/dL, g/L, U/L

  • Incubation temperature: 37.0±1.0℃

  • Relative humidity: ≤85%

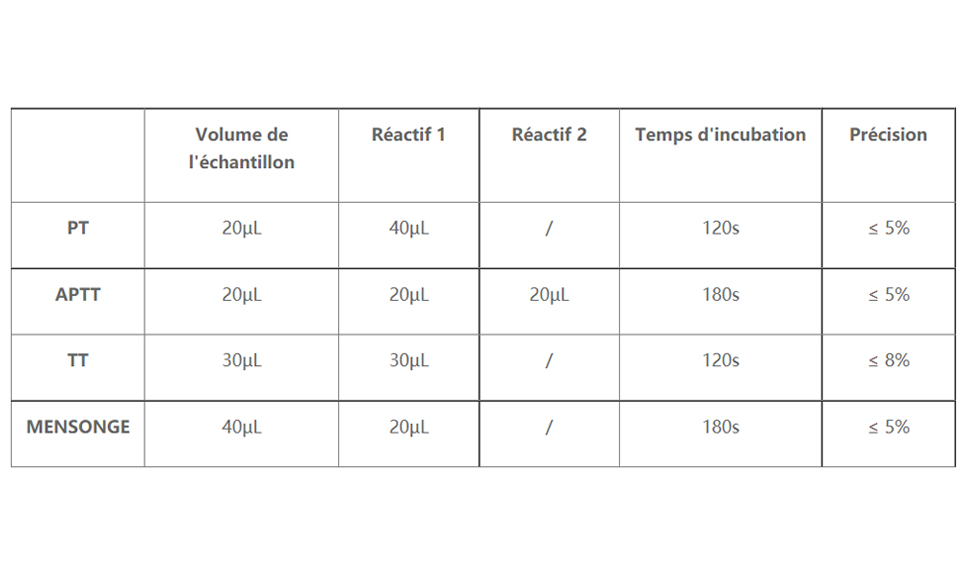

  • Precision: PT, APTT, FIB ≤ 5%; TT ≤ 8% (Normal sample)

  • The deviation between channels: ≤ 5%

  • Power supply: AC 100-240V 50/60Hz

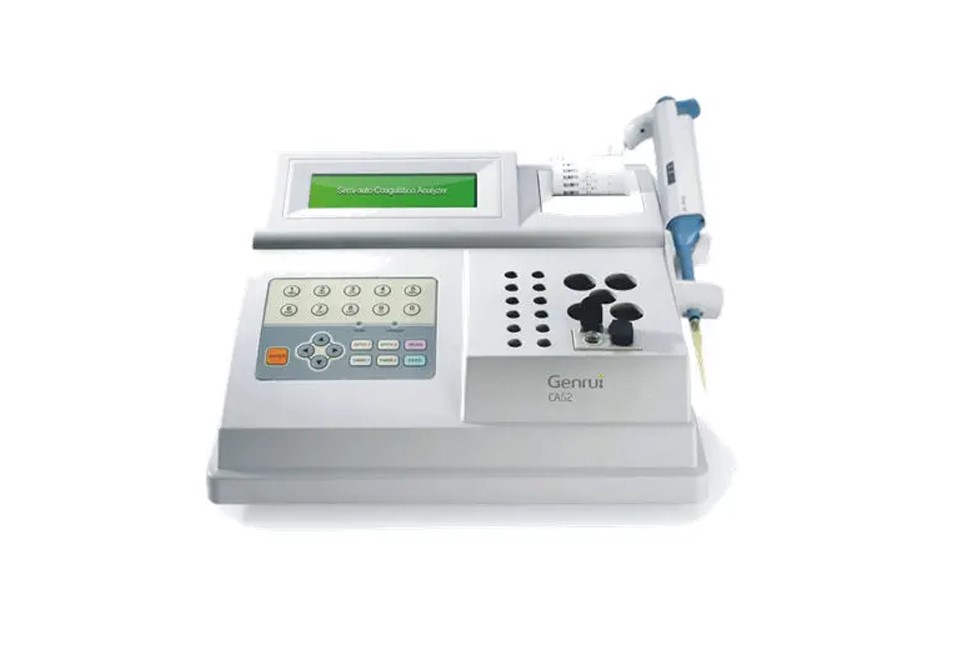

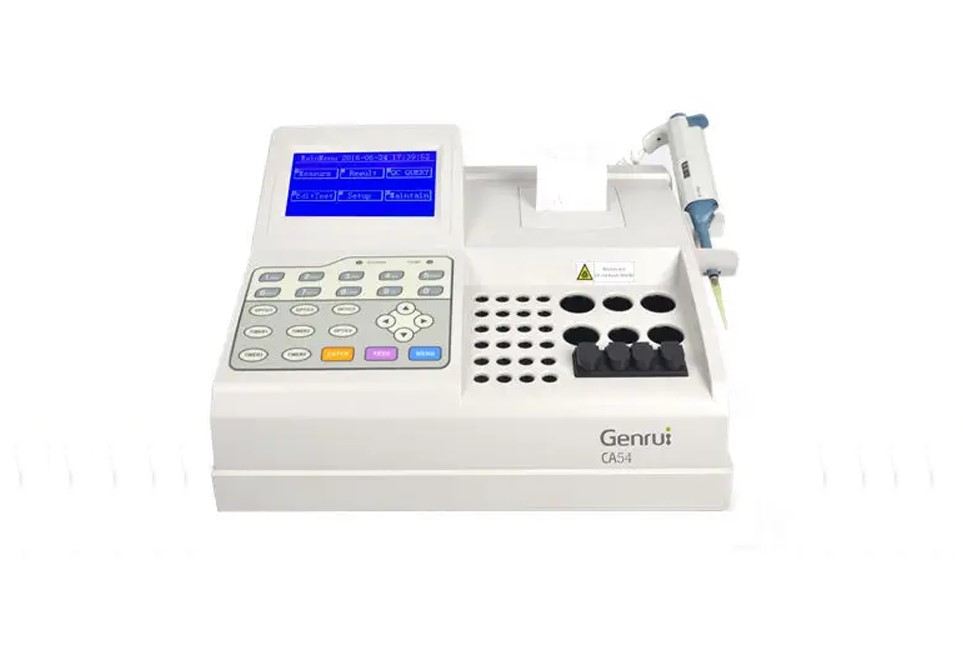

Images of Coagulation Analyzer 02
