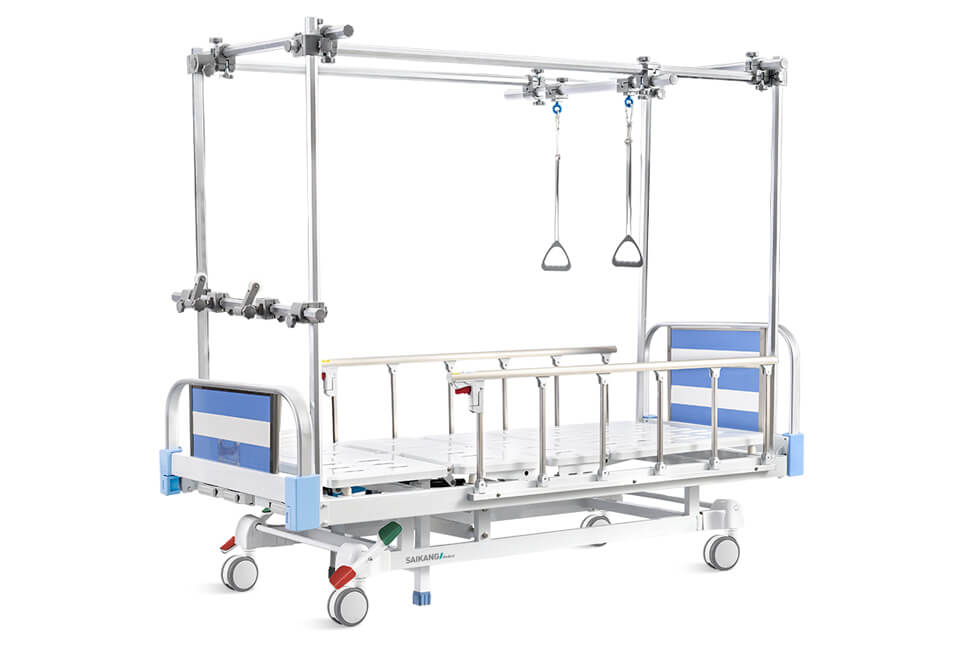

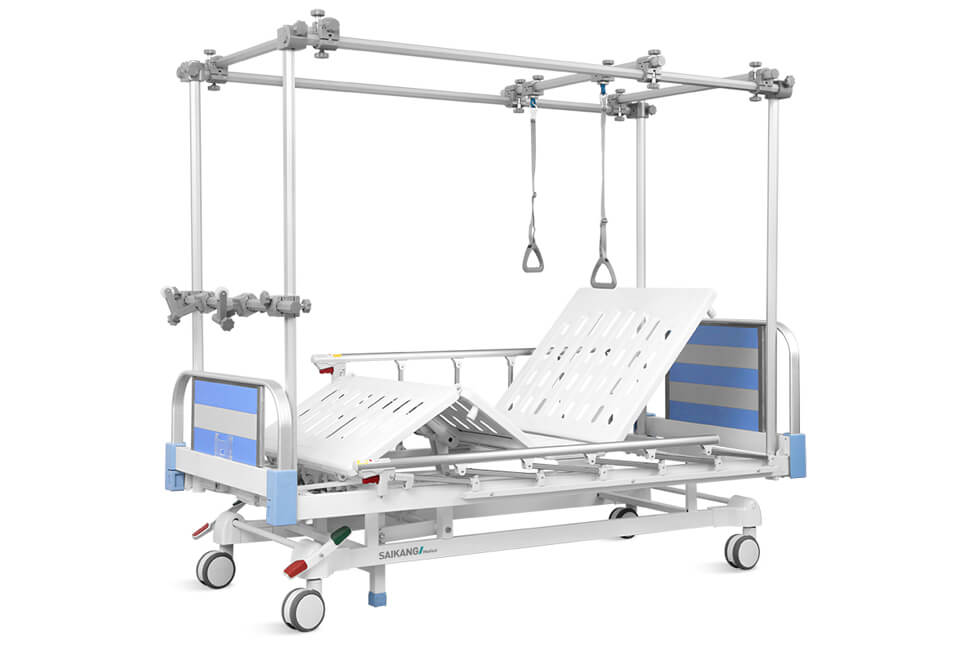

GT3k Manual Orthopedic Hospital Bed

  • Baosteel from Fortune Global 500. 11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact. The service life of this kind of orthopedic hospital bed can be well ensured.

  • Panasonic robotic ensure, 360° full smooth welding Solid bed base made of 5.0 mm stamped rotating plate.

Key Features of GT3k Manual Orthopedic Hospital Bed


  • Aluminum Balkan Frame, which can adjust the longitudinal, lateral, and height positions in all directions, and can accurately adjust the most comfortable posture of the patient.

  • Retractable hand crank, 100,000 times remaining intact. Extreme protection device sounds when tipped to the max position, strong pallets to increase the bed.

  • Reduce the impact of the collision, be safe and slinky, protect the bed and patient during transportation.

  • Stamping forming platform, smooth surface no welding scar, bearing 250KG load. Option ABS platform and resin X-ray translucent platform.

  • Aluminum alloy side rail, 6-staff, collapsed type with safe lock.

  • Aluminum alloy flat tube, MDF material fire-proof plate. size of the head & footboard can be customized

  • 3 functions manual



Technical Parameters of GT3k Manual Orthopedic Hospital Bed


External length

2270mm

External width

970mm

Bed height

500mm

Mattress platform

1925*830mm

Safe working load

250kg



Technical Configuration of GT3k Manual Orthopedic Hospital Bed


Manual cranks

3 pcs

5″ double side castors, central locking

4 pcs

Central locking pedal

2 pc

Aluminum alloy ABS head and footboard with safe lock

1 set

Aluminum alloy foldable side rail

1 set

IV pole

1 set

IV pole prevision

4 pcs

Drainage hook

2 pcs

Aluminum Balkan frame

1 set
