  • Steam Autoclave TM-XB Series

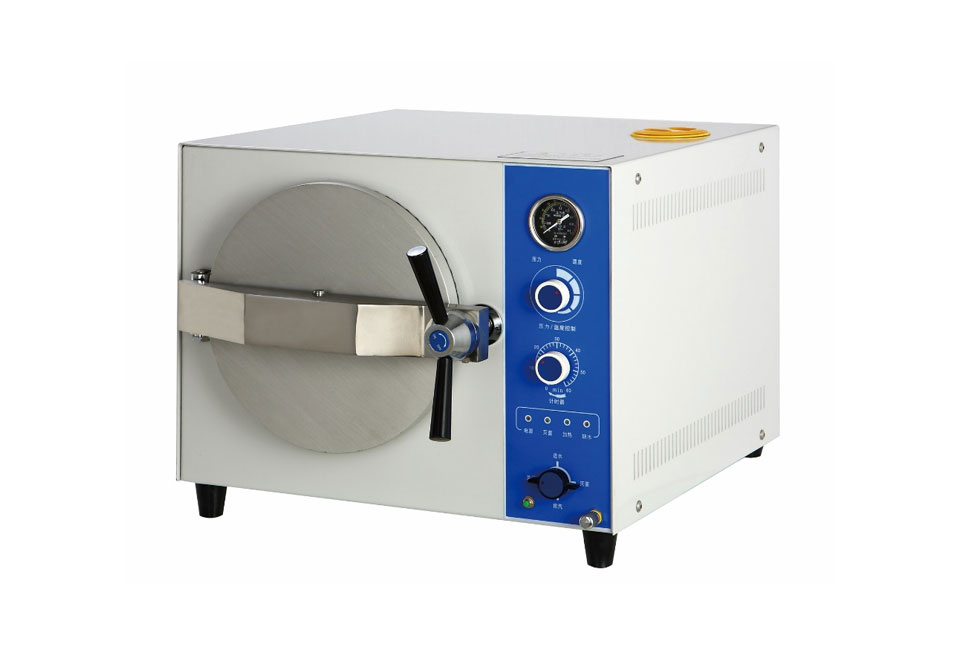

Table Top Steam Sterilizer TM-XB Series

The product utilizes saturated steam to rapidly and efficiently sterilize articles. It's application and function are similar to those of portable pressure steam sterilizer. Steam autoclave machine can be used in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions, substrata. It can also be used as a cooker in plateau areas and be used to make high-quality drinking water in industrial and mining enterprises.

Key Features of Table Top Steam Sterilizer TM-XB Series


  • Indicator light indicates a working state.

  • For 4~6 minutes rapidly sterilizing.

  • Sterilizing temperature and time can be preset.

  • Steam water inner circulation system no steam discharge, and the environment for sterilizing will be clean and dry.

  • Over-temperature &over pressure auto-protection.

  • Safe protection of water lacking.

  • Exhaust the cool air automatically.

  • With three stainless steel sterilizing plates.

  • The chamber of the sterilizer is made of stainless steel.

  • Automatically shut off with beep reminding after sterilization.



Product Parameters of Table Top Steam Sterilizer TM-XB Series


MODEL

TM-XB20J

TM-XB24J

Technical Data

Sterilizing chamber volume

20L φ250×420mm

24L φ250×50mm

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0-60min

Heat average

≤±1℃

Power

1.5KW/AC220V.50Hz(AC110V.60Hz)

Sterilizing plate

340×200×30(3piece)

400×200×30(3piece)

Dimension

480×480×384

580×480×384

Exterior package dimension

700×580×500

800×580×500

G.W/N.W

44/40Kg

50/45Kg
