  • Horizontal Autoclave

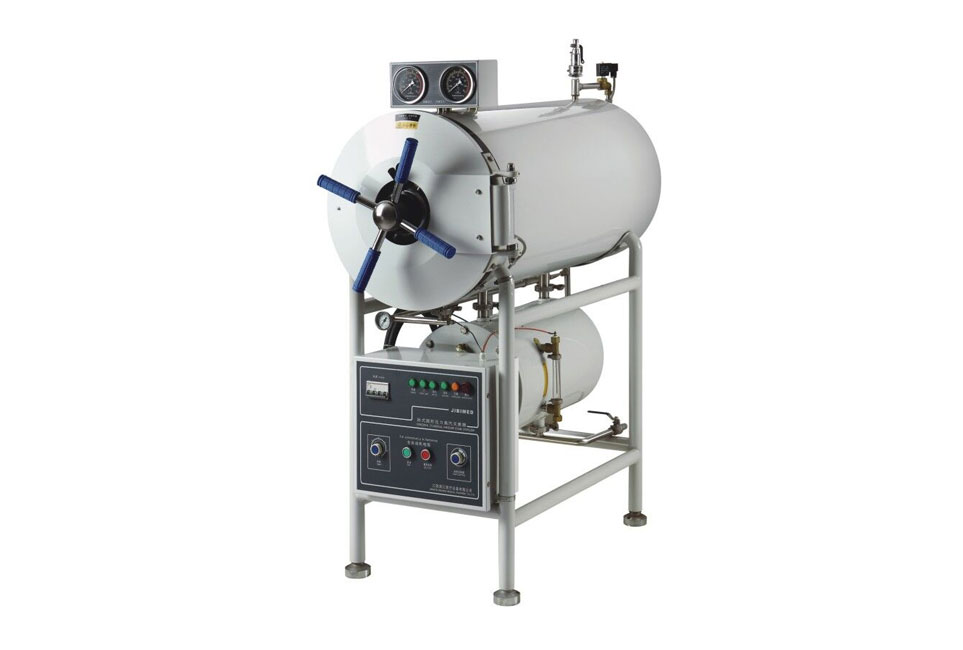

Horizontal Cylindrical Steam Sterilizer

The horizontal autoclave machine, which adopts the way of gravity exchange to release the cold air from the chamber more completely to ensure reliable sterilization. The control system automatically adjusts the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes, and other organizations to sterilize surgical instruments, fabric glassed, and the culture media, etc.

Key Features of Horizontal Cylindrical Steam Sterilizer


  • Automatically controlled the sterilizing process, easy to operate.

  • With drying function, suitable for the medical dressing drying.

  • With overtemperature, overpressure auto protect.

  • The door can't be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can't be started on if the door doesn't close well.

  • The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.

  • Automatically cut off the power if the water lack happened, and alarm at the meanwhile.

  • The chamber of the sterilizer is made of stainless steel.



Product Parameters of Horizontal Cylindrical Steam Sterilizer


MODEL

WS-150YDA

WS-200YDA

WS-280YDA

WS-400YDA

WS-500YDA

Technical Data

Sterilizing chamber volume

150L

φ440×1000

200L

φ515×1000

280L

φ600×1000

400L

φ700×1100

500L

φ700×1300mm

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

40℃-134℃

Time for

sterilization

0-60min

Time for drying

0-60min

Heat average

≤±2℃

Power

9kw/380V 50Hz

9kw/380V 50Hz

12kw/380V50Hz

18kw/380V 50Hz

18kw/380V 50Hz

Dimension(mm)

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830

1800×900×1820

Package dimension(mm)

1550×750×1850

1560×820×1850

1680×920×2100

1600×1050×2100

1850×1050×2100

G.W/N.W

320/240kg

350/260kg

465/365Kg

530/420Kg

580/470Kg
