  • Aeon7200A Anesthesia Machine

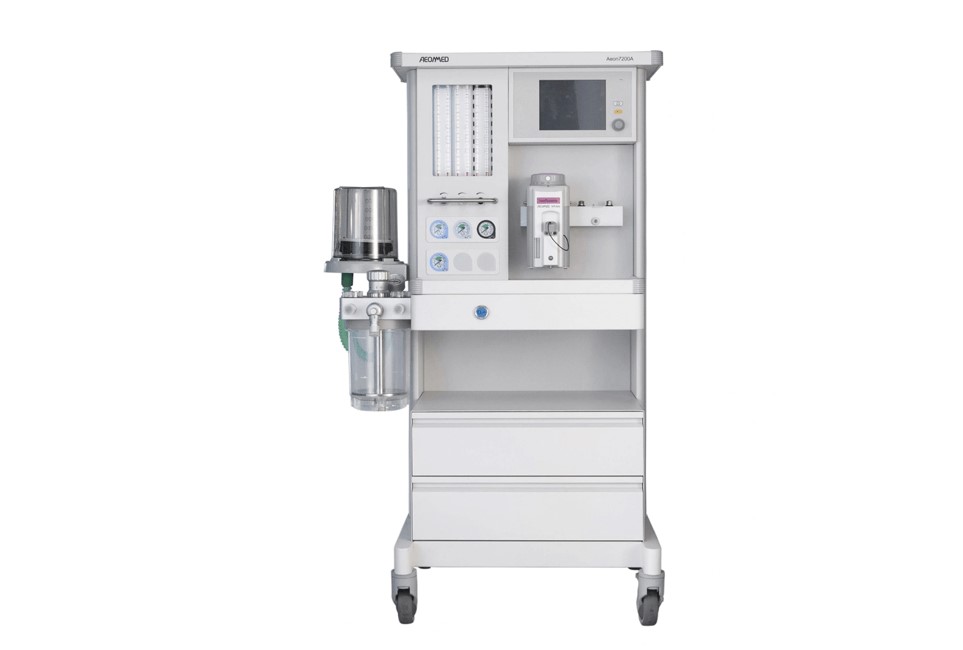

Aeon7200A Anesthesia Machine

  • With CE certificate, meets EU clinical safety requirement.

  • Large 8.4" LCD color touchscreen, monitoring of waveforms and parameters in different colors.

  • IPPV, Pressure, and SIMV modes can easily meet clinical requirements.

Key Features of Aeon7200A Anesthesia Machine


  • 6-tubes of flowmeters for 3-gas sources and suitable for various operation requirements

  • Spirometry loops, for easier interpretation of ventilation effectiveness

  • Optional multi-gas monitoring provides more reference for anesthesia

  • Optional AGSS provides more protection



Technical Specifications of Aeon7200A Anesthesia Machine


ANESTHESIA GAS SUPPLY MODULE

Gas supply

O2, N2O, AIR; 280j600kPa

Cylinder yokes

Optional: O2, N2O, AIR

Fresh gas flow indicator

Electronically display and virtual fresh gas flow tubes

Range of fresh gas flow indicators

O2, N2O (0~10.0 L/min), AIR (0~12.0 L/min)  (increments of 0.05)

O2 flush

25~75 L/min

Auxiliary common gas outlet (ACGO)

Optional

Anesthetic Gas Scavenging System (AGSS)

Optional

Agent

Sevoflurane, Halothane, Enflurane, Isoflurane

Installation mode

Selectatec® with interlock, optional standby vaporizer parking holder

Filling type

Pour-Fill, Key-Fill, Quik-Fil®

Volume of CO2 absorber

3 L for double-canister or 1.5 L for optional single canister

APL Range

Spontaneous breathing (SP) -70 cmH2O

Material

Autoclavable (except O2 cell and airway pressure gauge)

Heating system

32-40 ℃

CO2 bypass

Optional

VENTILATOR OPERATING SPECIFICATIONS

Ventilator

Pneumatically driven, Electronically controlled

Ventilator Monitoring & Alarms

Ventilation modes


l    Manual/Spontaneous

l    Volume control (IPPV)

l    Pressure control (PCV)

l    Pressure Controlled Ventilation Volume   Guaranteed (PCV-VG)

l    Synchronized Intermittent Mandatory   Ventilation in Volume (SIMV-VC)

l    Synchronized Intermittent Mandatory   Ventilation in Pressure (SIMV-PC)

l    Pressure support (PS) with Apnea Backup

Breathing frequency (Freq)

2~100 bpm

Positive end expiratory pressure (PEEP)

OFF, 3~30 cmH2O

Inspiration/expiration ratio (I:E)

4:1~1:8

Tidal volume (Vt)

20~1500 ml in Volume Control

Inspiration pause

OFF, 5%~60%

Inspiratory time

0.2~5.0 s

Inspiratory pressure (PTARGET)

5~70 cmH2O

Pressure support level (ΔP)

3~50 cmH2O

Pressure limit (Pmax)

10~70 cmH2O

Trigger

1~15 L/min

Inspiratory Slope Time (TSLOPE)

0~2s

Compensation

Compliance and Leak compensation,

fresh gas compensation,

altitude compensation

Ventilator monitoring & alarm

Monitoring


Continuous monitoring of inspiratory O2 concentration, breathing frequency, tidal

volume, minute volume, peak airway pressure, PEEP, mean or plateau pressure,

CO2 concentration (optional), anesthetic gas   concentration (optional), paramagnetic oxygen sensors (optional)

Compliance

0~100 mL/cmH2O

Control screen

12.1" TFT color touch screen

Graph Display

Waveform of P-t, F-t, V-t, CO2-t (option), P-V Loop, V-F Loop

Alarm

MV high/low limit, FiO2 high/low limit, Paw high/low limit, Power failure, High Freq, Negative pressure, Continuous airway pressure, Apnea alarmAlarm Silence (120seconds)
