C50/C80/C86 Patient Monitor

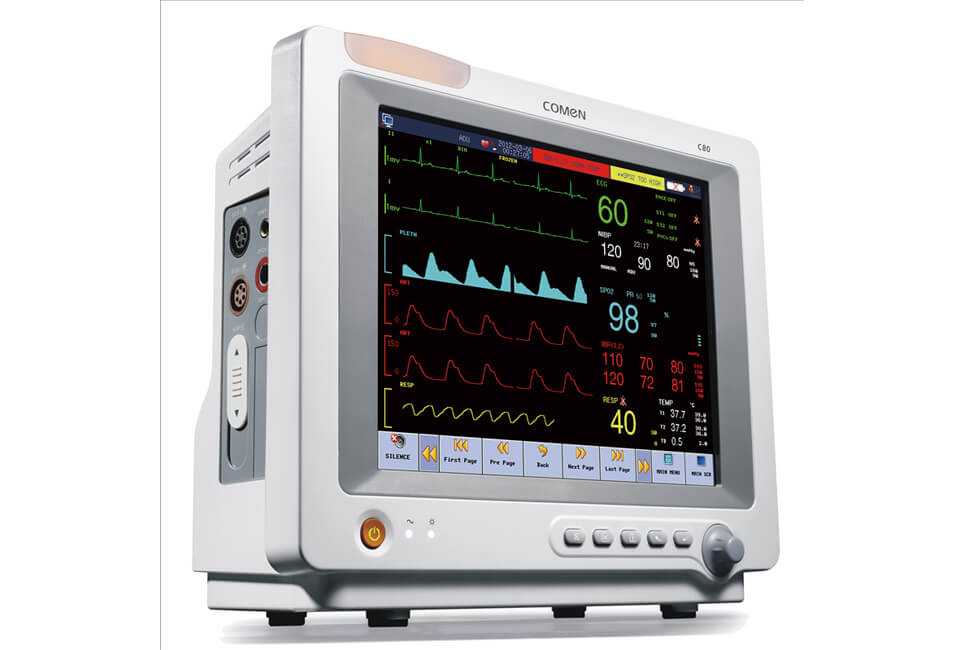

C80 is the new generation of intensive care patient monitor designed & developed by Comen. It's especially designed for ICU/CCU/Operation room and trauma care. C80 is equipped with 12.1'' LED touch screen, handwriting pen, SD card port, USB port, convenient handle, multiple mounting solutions, IPX1 level waterproof cabinet design & sturdy housing to withstand rough handling. C80 fulfills the hardware requirements for intensive care monitoring in multiple environments, efficiently caring for human life every second.

Key Features of C50/C80/C86 Patient Monitor

  • Color TFT display, touch screen

  • Various interface: Standard display, Big font display, 9 waveforms display, Trends graph display, OxyCRG display, Dual-view display

  • Multi-language and handwriting support

  • Special NIBP socket dust shield

  • 3, 5, 7, or 12-lead ECG analysis

  • EtCO2 socket reserved, supports hot-plugging

  • Arrhythmia, S-T segment analysis, drug dose calculation

  • Pacemaker detection, Anti- defibrillate

  • External monitor connector (VGA output)

  • 120 hours trends graph recall, 120 hours trends table recall, 1000 groups of NIBP list, 500 alarm events

  • 3-level audio/visual alarm, alarm limit display

  • AC/DC power supply, pluggable built-in rechargeable battery, power-off data protection

Specifications of C50/C80/C86 Patient Monitor

  • Standard Configuration: 5-lead ECG, RESP, Temp (Single Channel), SpO2, NIBP, HR

  •  Optional Configuration: Dual-IBP, EtCO2, AG, ICG, C.O., BIS, Nellcor/Masimo SpO2, 3/12-lead ECG, Thermal Recorder, Dual-Temp, Suntech NIBP, Trolley, Wall mount, Ground wire

  • Display:

  • C50: 10.4" LCD Touch Screen

  • C80: 12.1" color TFT Touch Screen

  •  C86: 15" color TFT Touch Screen

  • 30 min Full Disclosure Waveform Review

  • 120 Hr Graphic and Tabular Trend of all Parameters

  • Rechargeable Lithium-Ion battery (4000mAh)

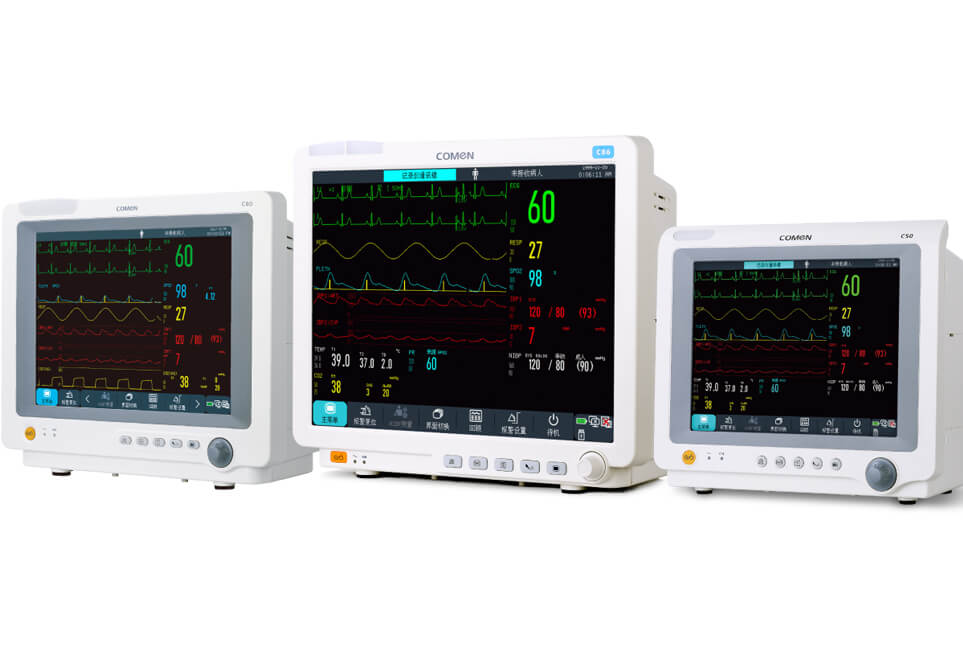

Image of C50/C80/C86 Patient Monitor
