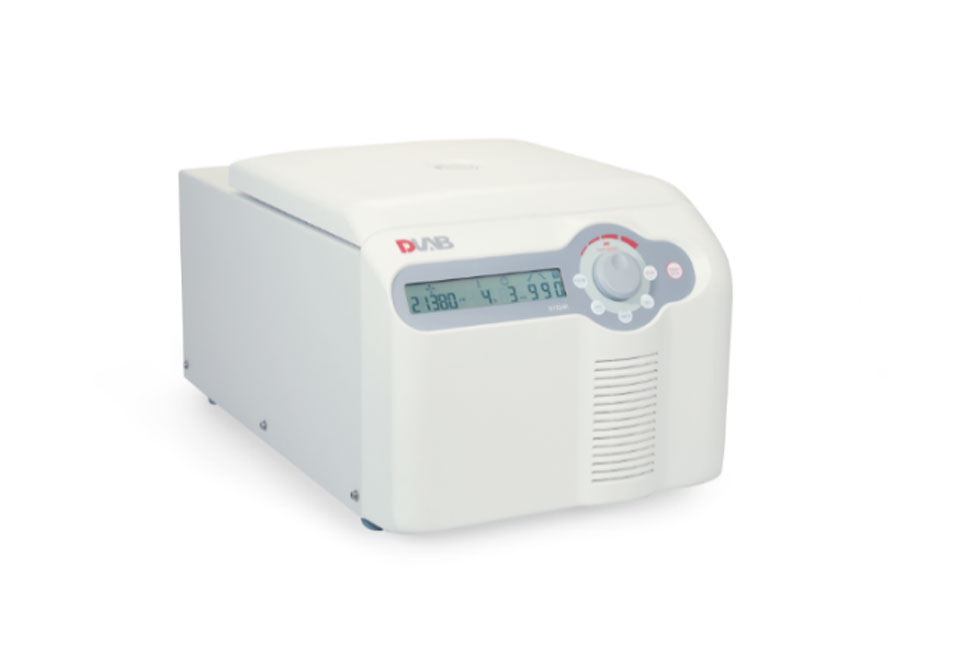

Centrifuge D1524R

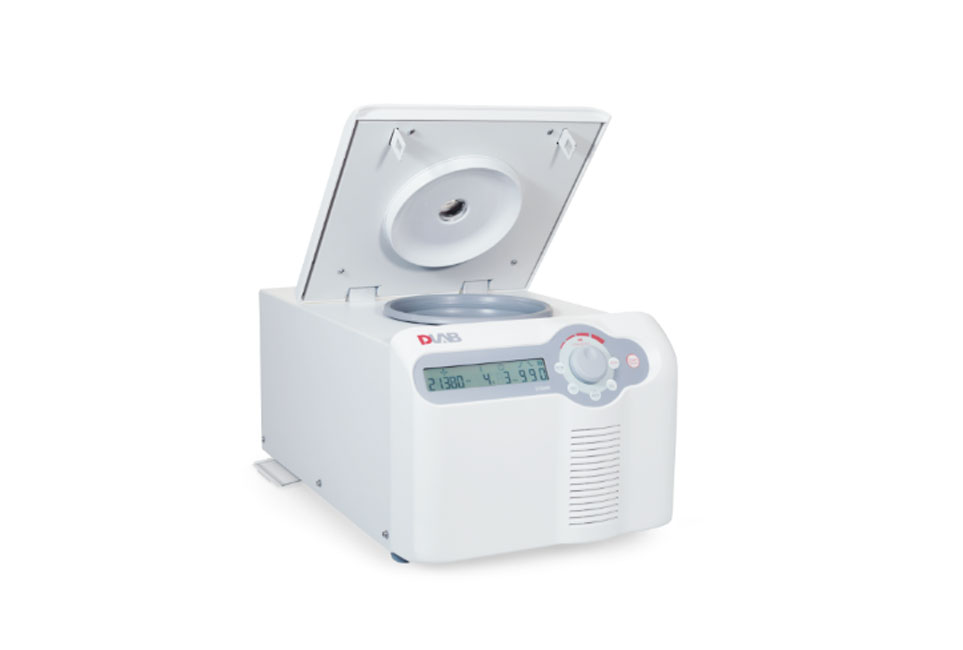

  • Centrifuge chamber doors with automatic adsorption door lock design can be closed with a single finger.

  • Precooling, the compressor will automatically start cooling as long as the set temperature is lower than the ambient temperature.

  • Sound indicator to prompt that the upper cover is closed to maintain the temperature inside the chamber, after centrifugation.

Key Features of Centrifuge D1524R


  • Advanced R290 fluorine free refrigerant, low carbon and environmental protection.

  • Maximum rotation speed can be achieved even at 4℃.

  • Up to 9 program storage capacity according to experimental needs.

  • Biosafety rotor, three-layer seal for biosafety.

  • High-strength aluminum alloy, three layered biosafety to withstand numerous high temperature and high pressure sterilizations.

  • Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity.

  • An external condensation tank prevents condensate within the centrifuge chamber.



Product Parameters of Centrifuge D1524R


Specifications

D1524R

Max. Speed

15,000rpm (200-15,000rpm) in 100rpm increments.

Max. RCF

21,380×g, step: 10×g

Capacity

1.5/2mL×24, 0.5mL×36, PCR8×4, 5mL×12, 5mL×18.

Temperature setting

-20℃- 40℃

Timing

30s-99 min; HOLD (continuous running)

Motor Type

DC brushless motor

Safety Performance

Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.

Power Requirements

Single phase, 200-240V, 50Hz, 500W

Dimensions(mm)

332(Width) × 553(depth) × 283(height)

Weight

30kg

Acceleration and deceleration time

25s↑25s↓

Noise

≤56dB

Other functions

Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Acceleration/ deceleration in 9 steps, program storage capacity.
