  • Y8y Full Electric Hospital Bed
  • China Fully Electric Hospital Bed

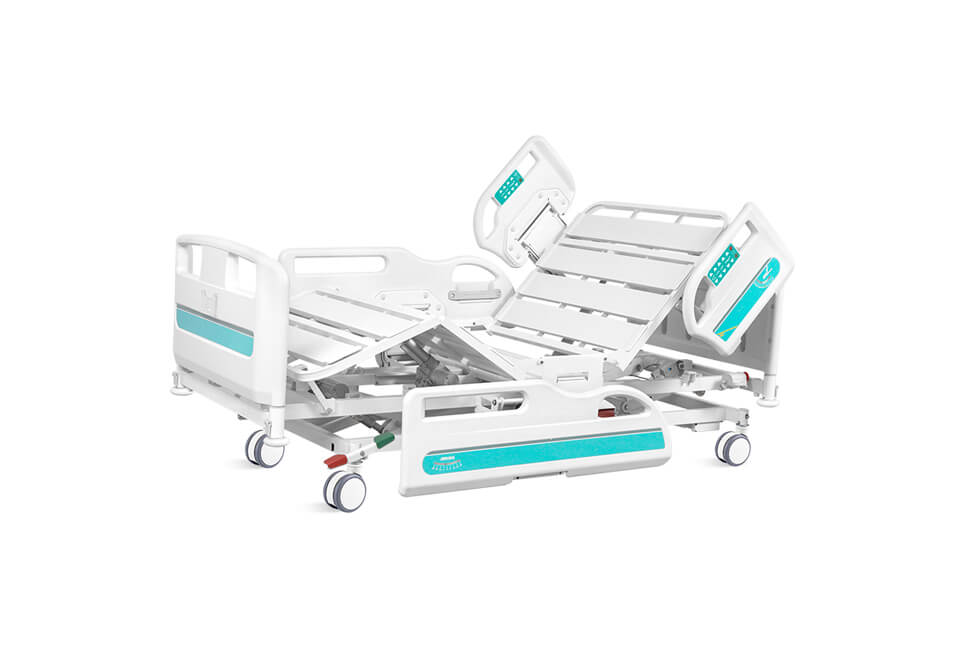

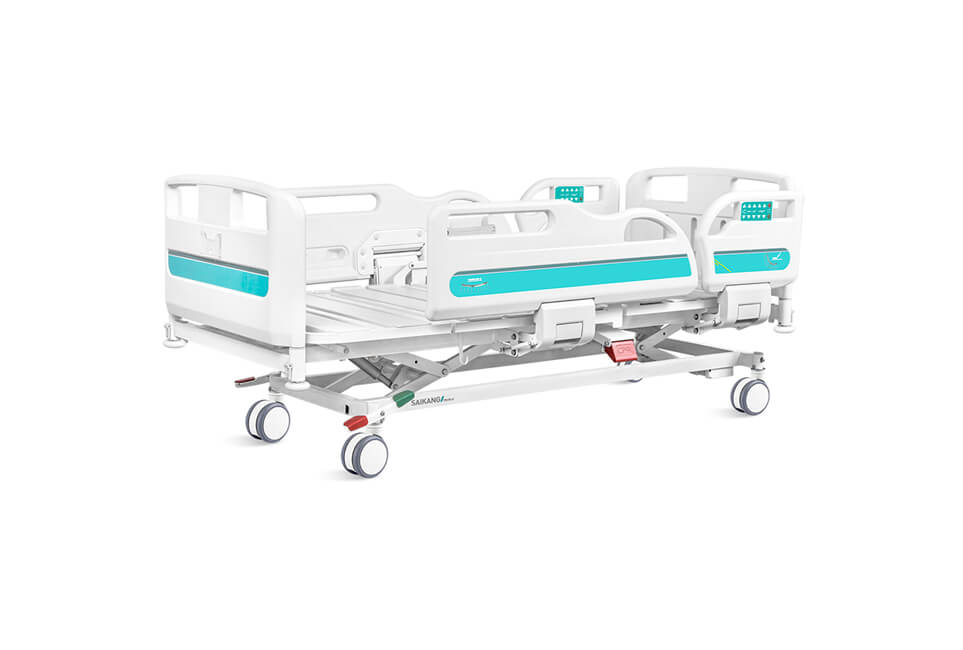

Y8y Electric Hospital Bed

  • Double auto-regression function for bed platform

  • Super-low bed position 365mm

  • PP bed platform, Removable & washable

  • Inserted-type PP head footboard, one step quick release with patent safe lock

Key Features (Optional) of Y8y Electric Hospital Bed


  • Weighing System

  • Bed extension 200mm

  • Back up battery

  • Nurse Control Panel

  • Emergency Stop Button

  • Cardiac Chair Position

  • Directional wheel function

  • 5th and 6th Extra side rail for full protection

  • Monkey Pole

  • Balkan Frame

  • Linen Holder



Technical Parameters of Y8y Electric Hospital Bed


External size (LxWxH)

2030x1050x350-800 mm

Mattress platform

1925x880 mm

Safe working load

250 kg

Back-rest adjustment

0-75° (±10°)

Knee-rest adjustment

0-35° (±10°)

Reverse Trendelenburg

0-12°

Trendelenburg

0-12°

Angle indicator

0-90°

Bed extension

200mm

Auto-regression

100+60mm

Position line

30°

Voltage and frequency

100-240 V · 50/60 Hz



Technical Configuration of Y8y Electric Hospital Bed


Linear motor

4pcs

5'' double-side castors, central locking system

4pcs

ABS oasis side rail extra height

1set

ABS oasis bed ends with safe lock

1set

PP bed platform, removable & washable

9pcs

Plastic socket inside PP guardrail for phone or glasses

2pcs

Patent angle indicator for back-rest and Trendelenburg position

4pcs

100mm wall bumper wheel

4pcs

Central locking pedal

2pcs

ABS mattress stopper

2pcs

Hand controller

1pc

I V pole

1set

I V pole prevision

4pcs

Drainage hook

2pcs
