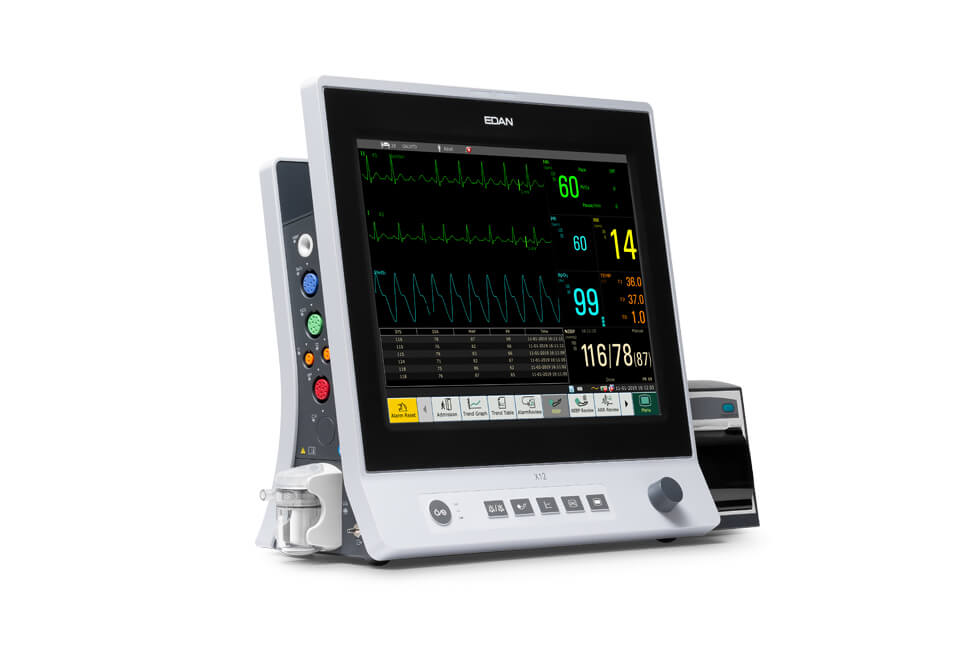

X Series Patient Monitor

Based on its expandability of monitoring parameters, and stunning ultra-slim design, the X12 fulfills your primary clinical requirements in various scenarios, including Emergency Rooms, General Wards, Rehabilitation Department, Cardiac Units, and In-hospital Transfer, covering all patient types, realizing from neonatal to adult monitoring.


Key Features of X Series Patient Monitor


  • In certain emergent cases in which you'd need a quick ECG placement without all leads, the X series can understand you better and will only pick up the ECG leads you placed.

  • A unique 6-lead system with automatic chest lead identification is also introduced, making cardiac monitoring more flexible.

  • Islam ECG monitoring algorithm with 33 types of arrhythmia detections. SEMIP® ECG diagnosis algorithm with 208 findings.

  • EDAN G2 CO2 technology is employed in the X series. This proprietary technology combines an exquisite water trap and a state-of-the-art algorithm iCARBTM, eliminating both moisture and pseudo waves, presenting accurate and immediate readings on a minimum sampling rate.

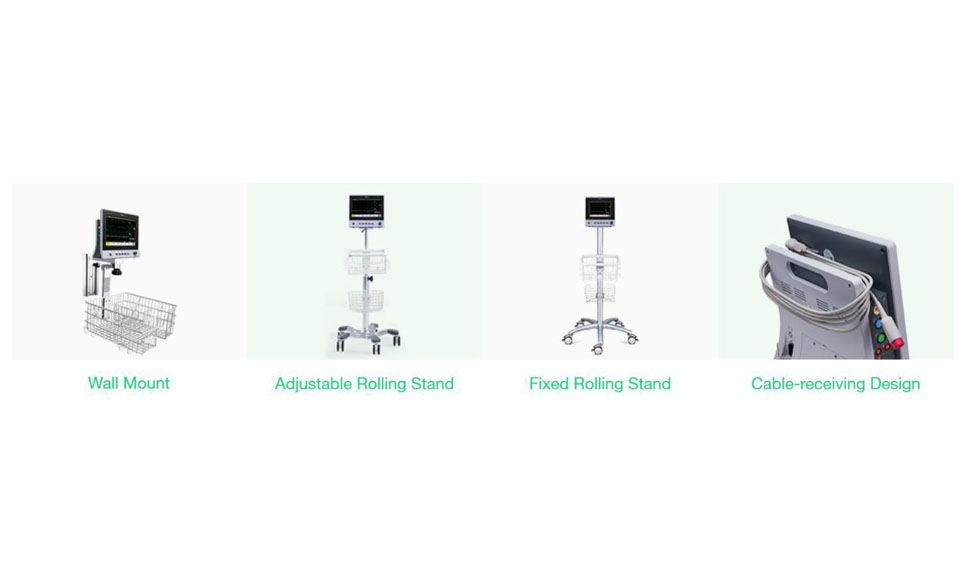

  • Two types of mounting solutions are available for regular monitoring applications.

  • Due to the no-fan design, the energy consumption is minimized, the devices could work as long as 8 hours only with battery support.



Specifications of X Series Patient Monitor

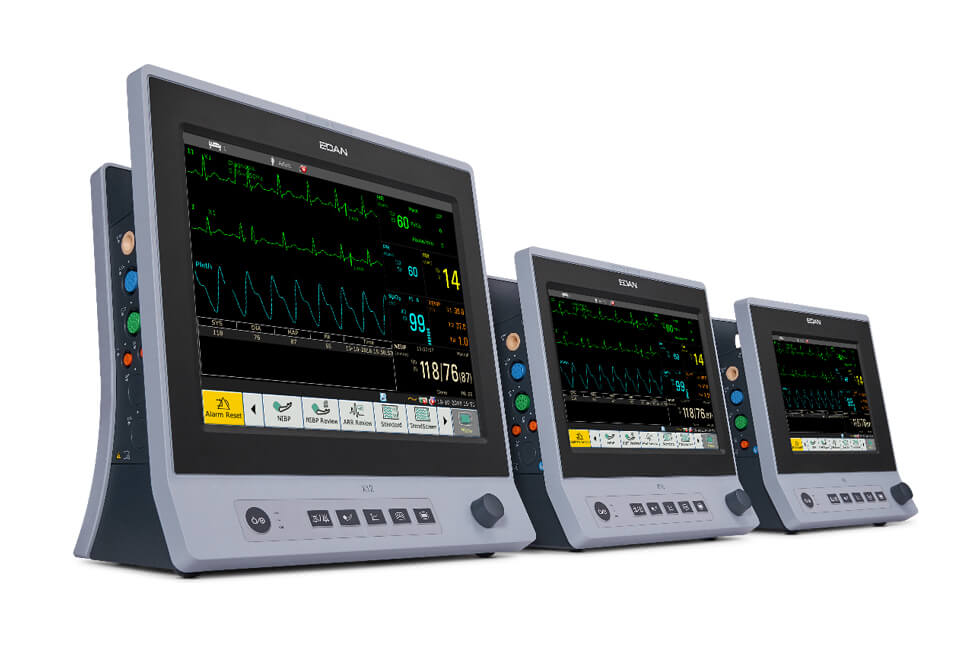

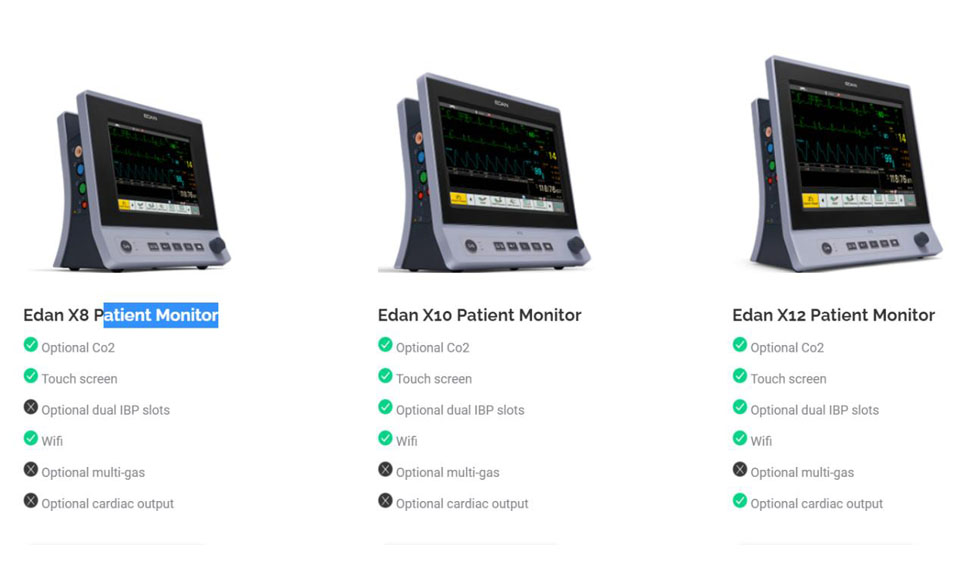

  • 8 inch (X8),10.1 inches (X10), and 12.1 inches (X12) color TFT Screen, touch screen available

  • Light weight<3.5kg

  • Standard Parameters: 3/5-lead ECG, RESP, EDAN SpO2, EDAN NIBP, 2-channel TEMP

  • Optional Parameters: 6/12-lead ECG, 2-channel IBP, C.O., EDAN G2 CO2

  • Trend graph/trend table review

  • 3 hrs, at 1 Second Resolution

  • 120 hrs, at 1 min. Resolution

  • Alarm/Monitoring Event data: Up to 200 sets

  • NIBP Measurement Review: 1200 sets

  • Arrhythmia events: Up to 200 sets

  • 12-lead analysis Review: Up to 50 sets

  • Standard Configuration:

  • (1) Adult Reusable NIBP Cuff

  • (1) NIBP Tubing

  • (1) Skin Temperature Probe

  • (1) Adult Reusable SpO2 Sensor

  • (1) Rechargeable Battery

  • (10) Snap Electrodes

  • (1) Grounding Cable



Image of X Series Patient Monitor
