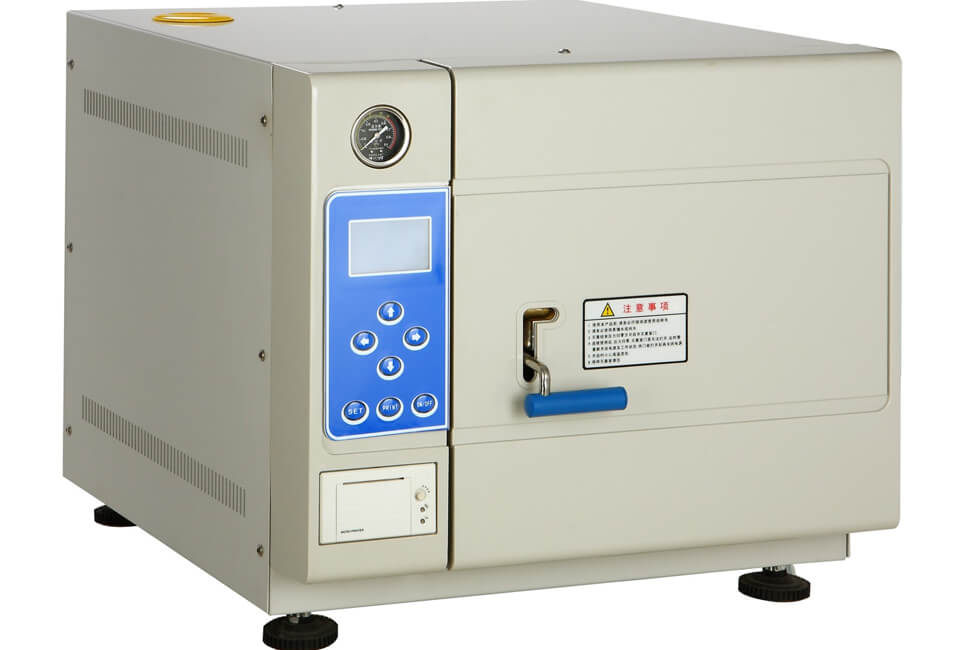

  • TM-XD Dental Sterilizer Machine

TM-XD Series Dental Autoclave 01

The table type sterilizers are safely auto controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.

Key Features of TM-XD Series Dental Autoclave 01


  • Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instruments less than 0.2%.

  • LCD display working status, touch keys.

  • The vacuum data can reach -0.8bar, it fits various instrument, including package, unpackaged, solid, hollow, multi apertures and inset pipes. It makes sure the instrument can be sterilized completely.

  • Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.

  • It is installed with BOWIE&DICK which measures the penetration of water steam.

  • It has vacuum test which can make sure the ability of vacuum testing. Fast and independent steam generator.

  • Built-in mini printer which can record the sterilizing information.

  • Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system.

  • It inactivates the HIV, HBV, BSE, and bacillus efficiently.



Technical Specifications of TM-XD Series Dental Autoclave 01



MODEL

TM-XD35DV

TM-XD50DV

TM-XD90DV

Technical Data

Sterilizing chamber volume

35L, φ300×500mm

50L, φ340×550mm

90L, φ400×720mm

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0-99min

Heat average

≤±1℃

Power

AC220V 50Hz/2.7KW

AC220V 50Hz/4KW

Machine Dimension (mm)

730×550×510

770×600×540

1000×690×610

Package dimension (mm)

810×680×650

880×730×700

1070×740×700

G.W/N.W

115/93Kg

130/106Kg

200/180Kg
