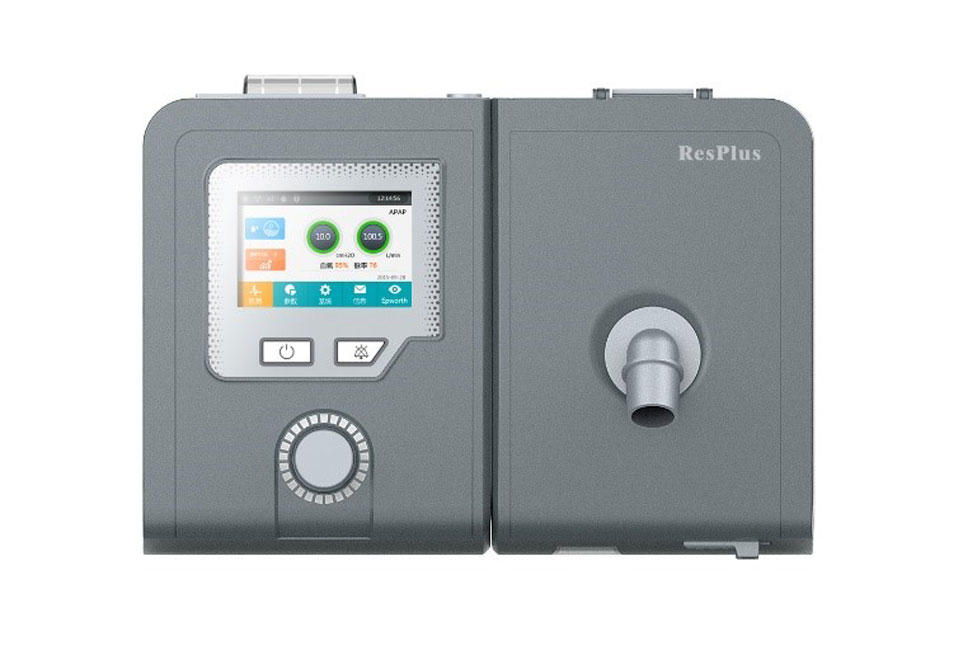

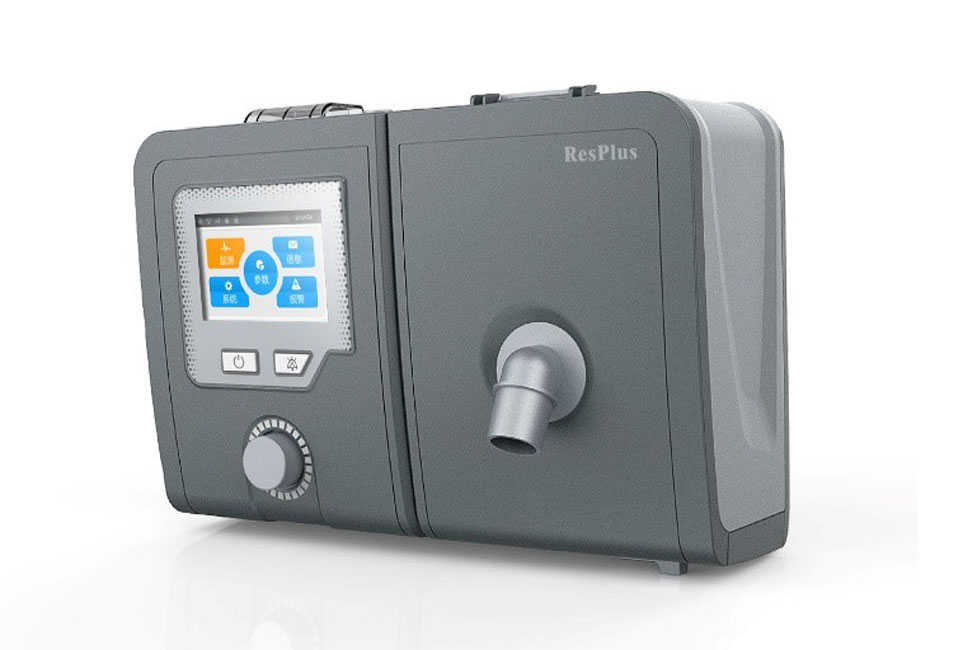

ResPlus Series CPAP & BIPAP System

CPAP & BIPAP System is a device that can replace, control or change people's normal physiological breathing, increase lung ventilation, improve respiratory function, reduce respiratory work consumption, and save heart reserve capacity. It continuously provides patients with oxygen through a given pressure, so as to solve the problem of patient's lack of oxygen during sleep.

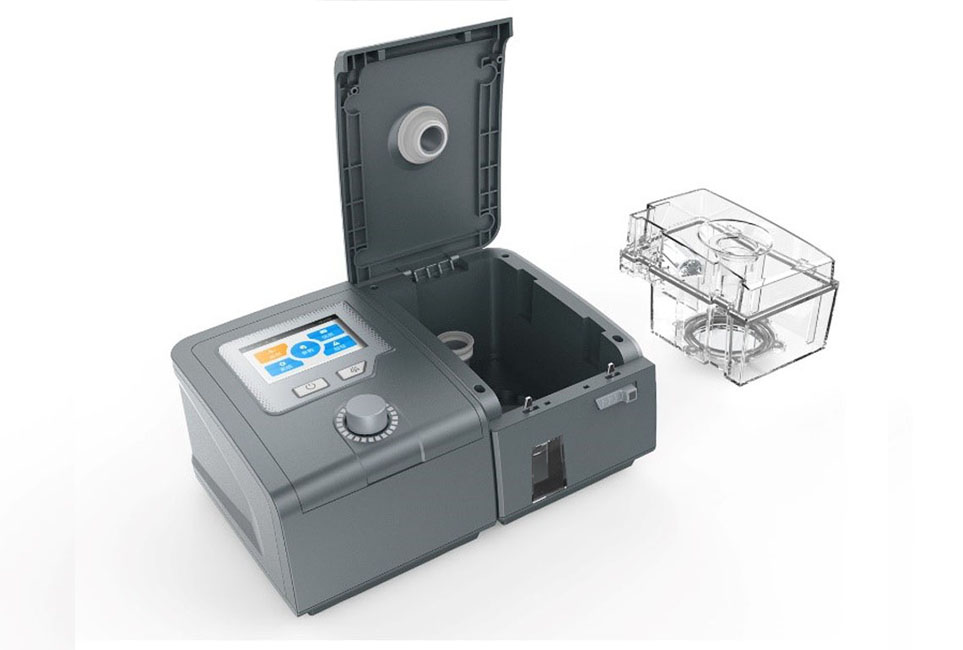

  • Humidifier detachable, the host can be used alone

  • Berlex function (Pressure release technology, similar to ERP or PEEP)

  • 8G TF card for data storing

Key Features of ResPlus Series CPAP & BIPAP System


  • Quiet design: noise less than 30dBA

  • SPO2/Pulse Rate monitor (optional)

  • Scope of application: Anti-snoring, SAHS (sleep apnoea hypopnea syndrome), OSAHS



Technical Specifications of ResPlus Series CPAP & BIPAP System


Screen

3.5-inch color TFT

User Interface

One Cursor key operation

Pressure

4-20cmH2O

Accuracy

±0.5cmH20

Berlex

2-4cmH2O makes the expiration more comfortable

Ramp

0-60min

Noise

<30dB

Auto shut off

Yes

Leakage compensation

Yes

Altitude compensation

Yes

Humidifier

0-5 level, water chamber separable

SPO2 port

Optional

Parameter monitor

Flow/Press/SpO2(Optional)/PR(Optional)

Realtime Alarm

Power failure/Low voltage/Airway Block/High Leakage/humidifier failure/TF card full

Data download

TF card 8G

Data report

available

Self-diagnostic questionnaire

Yes, makes the patient understand the potential breathing apnoea by himself.
