Emergency Ambulance

Perfect use of space combined with ergonomic design for rescue personnel and patients following the highest requirements in security and technology.

Key Features Of Emergency Ambulance

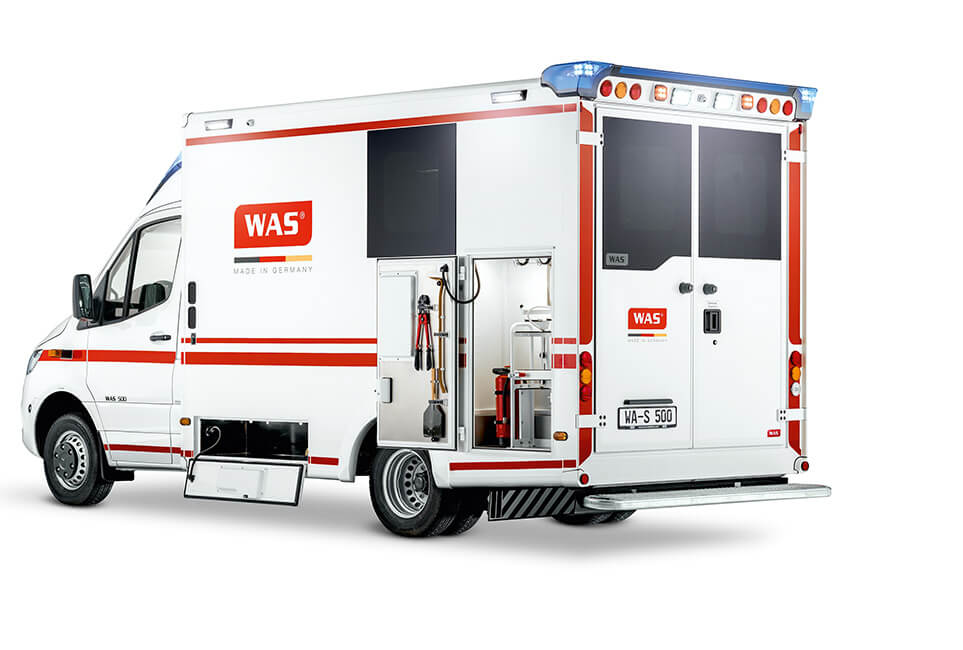

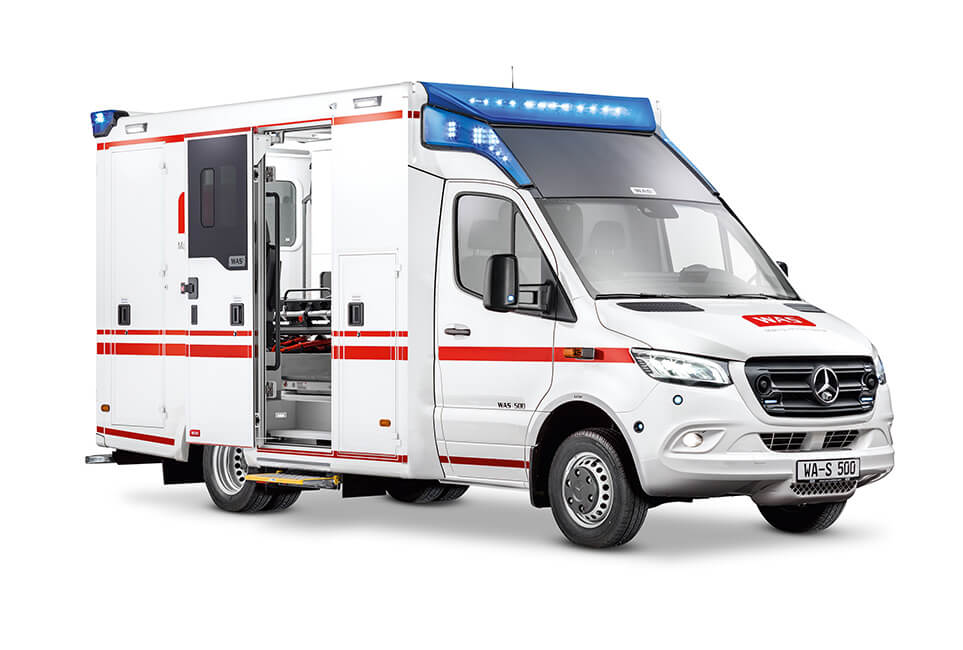

  • The new ambulance on a Mercedes-Benz Sprinter chassis presents all established standards.

  • The patient compartment offers optimal working conditions and enough space for comfortable treatment of the patient.

  • A new generation of furniture with large rounded edges and handle-free fronts as well as illuminated grab handles facilitate the daily work of the rescue service personnel.

  • The low-level storage compartment at the front right provides storage for two emergency kits or backpacks, which are accessible easily and can be removed quickly.

  • The integrated LED warning system in the new design with improved visibility from the front and the side is the basis for the box body design and ensures even greater safety.

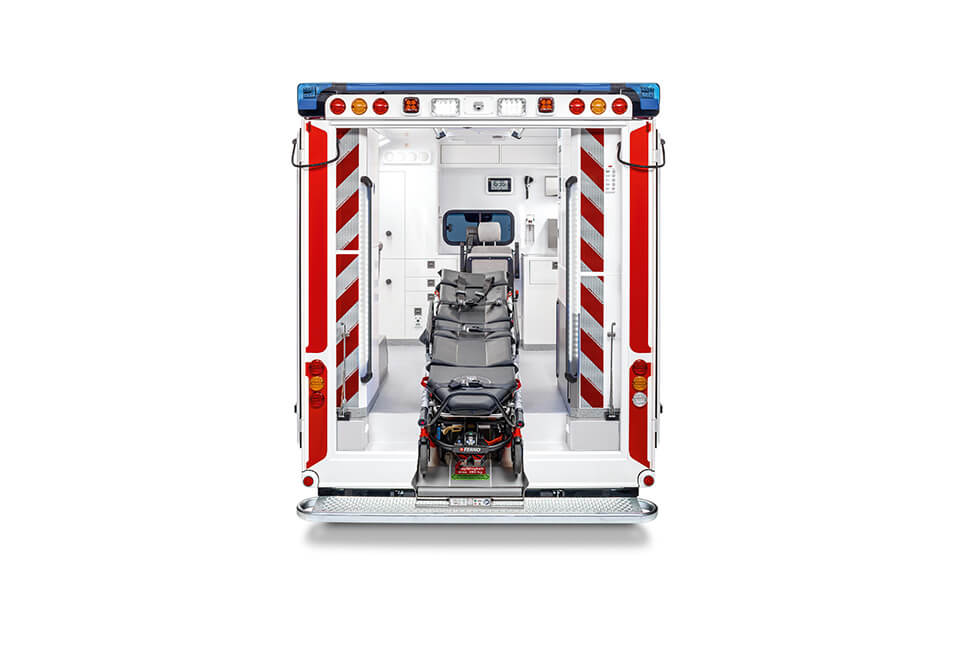

  • The back-friendly move-in assistance Multi-Load Assist has been developed for all common roll-in stretcher systems.

  • Oxygen supply and rescue tools in the large exterior storage compartment. The underfloor compartment offers additional storage space.

  • The rotating and foldable attendant seats featuring three-point belts offer maximum safety and are easy to clean and disinfect thanks to their seamless surfaces.

  • The noise reduction inside modern vehicles has the consequence that it becomes more difficult for road users to recognize rescue vehicles.



Technical Specification Of Emergency Ambulance


  • EXTERIOR: LED working lights Latest front and rear LED warning system WAS New Design LED flashers integrated into the side view mirrors Intersection lights Warning system integrated into the bumpers 2 x 2 pressure air horn siren mounted under the bumpers, with special snow covers LED rear warning system LED lighting at driver's and co-driver doors Rear lights in LED technology Rear view camera in rear console 360° eagle eye vision camera Exterior and interior body panels made from polyester-coated aluminum.

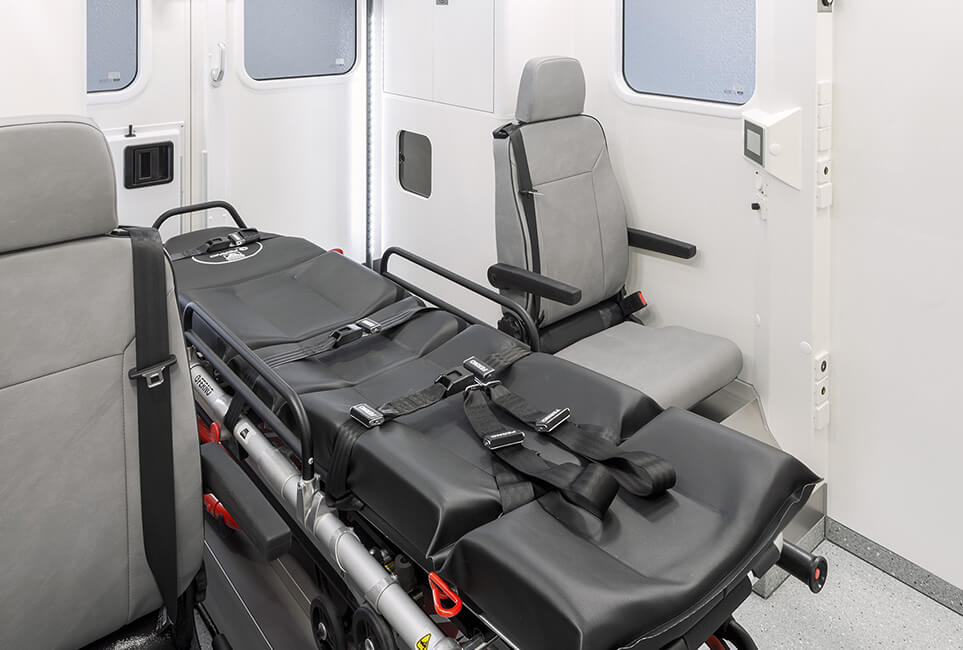

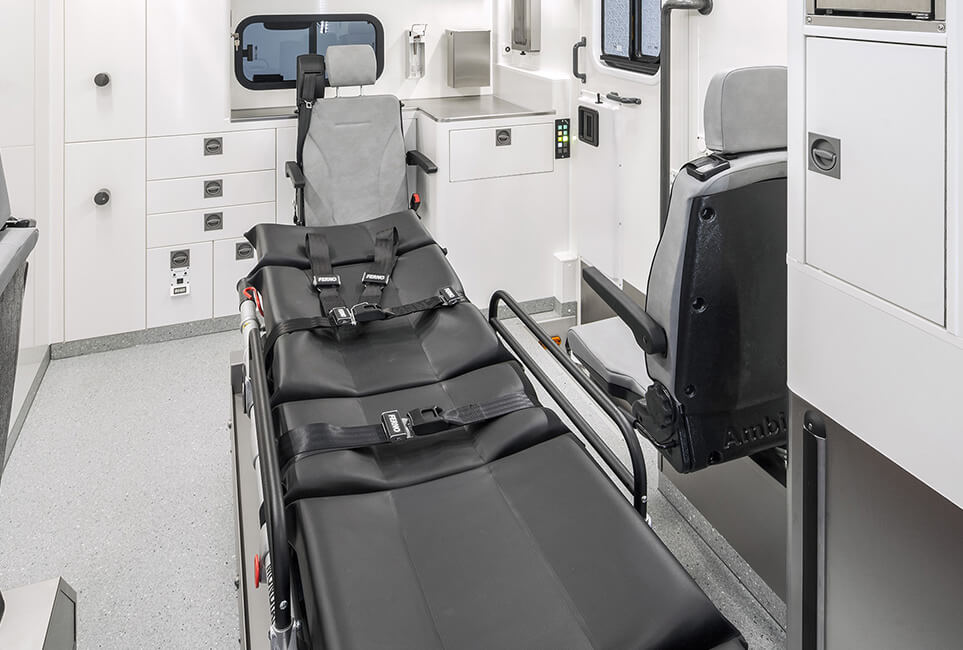

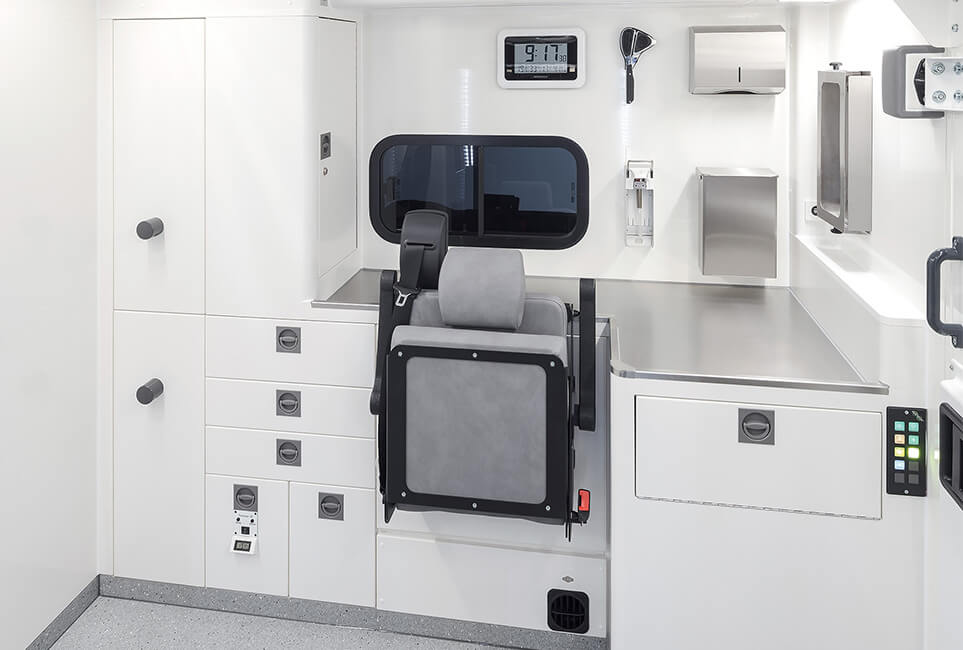

  • INTERIOR: Multi-Load Assist, move-in assistance for all conventional roll-in stretcher systems Hydraulic ambulance table type Hydropulse Comfort Medicine pull-out cupboard, in two parts, with heavy-duty drawers Medicine cupboard next to the medicine pull-out cupboard Drawer compartment with five drawers on the partition wall Attendant seat on the partition wall Additional storage unit under the attendant seat Storage compartment for two emergency cases or bags, with additional shelf above the storage compartment Working surfaces tub-shaped with stainless steel coating Roof storage compartment above bulkhead window with push-to-open-technology and integrated LED lighting Compartment for oxygen cylinders, with access flap to open and to read the pressure reducer All access doors and compartment doors with stainless steel protection cover Storage compartment above the oxygen cylinder compartment, with double hinged doors 2 LED medicine spot lights in the ceiling center 2 attendant seats with integrated three-point seat belts, mounted on the fully coated wheel houses LED interior lighting with emergency light and integrated blue trauma light Illuminated grab handles Automatic climate control for AC system and auxiliary heating Oxygen outlets 12 V outlets 230 V outlets, with power supply during transport.

  • BOX BODY: Model Emergency Ambulance Type C Internal Dimensions Length: 3590 mm Width: 2080 mm Height: 1975 mm Doors • Side sliding door on the right, 770 mm wide, with sliding window • Rear double hinged doors Compartments • Large access compartment door front right side, for two emergency cases or bags • Underfloor compartment at the front, left side • Rear access compartment, left side, for oxygen cylinders and rescue tools • Extra large rear access compartment, right side, for carrying chair, spine board, scoop stretcher.

  • BASE VEHICLE: Model Mercedes Benz Sprinter Vehicle type 516 CDI, 120 kW, 4 x 2 Transmission 7 gear automatic transmission Wheel base 3665 mm Max. total weight, 5000kgs.
