  • DL Simple Ot Table

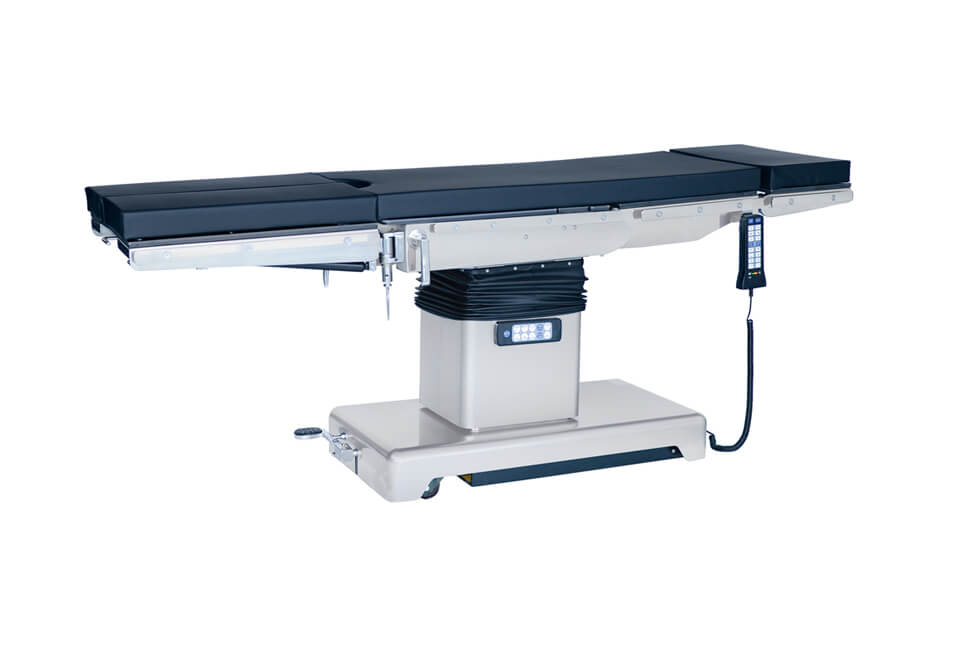

DL Series Operating Table

DL Series (DL·A, DL·C-I) Electric Operating Table features with integrated multi-function can fulfill the needs of various operations.

Key Features of DL Series Operating Table


  • The bed surface adopts imported carbon plastic plate, the table can be moved vertically which can fulfill the needs of C type arm whole body examination.

  • Every action of the motor is controlled according to electric motor working principle and by remote controller.

  • Both sides of the bed rail for the high quality 304 stainless steel.

  • The mattress is once foam molded by polyurethane with homogeneous force.

  • Imported brand motor without noise and with long life-span.

  • The base seat and upright column covering are made of high quality 304 stainless steel which can be easily cleaned and sterilized.

  • Foot treadle brake device which is easy for moving operating table.

  • Standard Accessories: A pair of shoulder and waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame.


Specifications of DL Series Operating Table


Mode

DL·A

Table Length mm

2000±100

Table Width mm

520±20

Height Adjustment mm

(750~1000) ±50

Horizontal and longitudinal movement mm

350±30

Backboard Upwards

≥70°

Backboard Downwards

≥15°

Trendelenburg / Rev-Trend

≥18°

Tilt (Left) / Tilt (Right)

≥15°

Head board Upwards

≥40°

Head board Downwards

≥90°

Leg board Upwards / Leg board Downwards

≥15°/ ≥90°

Leg board Outwards

≥180°

Waist board lifting mm

100±20

Lumbar upper corner “∧”

≤150°

Lumbar lower corner “∨”

≤120°
