SONTU300-MARS Digital Medical X-Ray Radiography System

  • Sontu300-Mars hospital X ray machine for sale has 10 inches G-sensor touch-screen; The metrics such as SID, FID distance, and tube rotation angle will be measured during the rack operations.

  • Four functions including freely chosen for APR, image preview, and back-end optimization for rack performance.

  • Aluminum column mold-opening technology is introduced for the first time in the healthcare industry that ensures the top-standard rack, feasible and compact structure, highly reliable and durable, with elegant appearance.

Key Features of SONTU300-MARS DR X-Ray Machine

  • Fixed-bed with four-way horizontal floating tabletop and electromagnetic lock;

  • The high-voltage generator from SONTU ensures a stable performance and excellent technical supports;

  • Easy exposure parameters settings, and various advanced image processing system options available;

  • Meet the needs of all body parts, one machine meets all clinical applications. Faster, safer, and more accurate than CR;

  • The advanced APR control system can save countless shooting parts and shooting conditions in advance according to different user requirements, making the operation even easier.

  • This hospital X ray machine cost is very reasonable.


Specifications of SONTU300-MARS Digital Medical X-Ray Radiography System

  • Flat Panel Detector: Wired a-Si Flat Panel Detector; Amorphous Silicon (a-Si) Photodiode; Images size: 430mm x 430mm (17" * 17")

  • High Frequency Generator: 50kW, 50kHz, 40~150kV, 1kV step, 100~630mA, mAs range: 0.5mAs-1000mAs

  • X-ray Tube: Toshiba Brand; Focus: 0.6/1.2mm; Voltage: 150kV; Anode type: Rotating; Anode heat capacity: 230kHU

  • Collimator: Control: Manual; The average brightness of the light field:>150lux; Input power: 10A 150W, AC24V


Configurations of SONTU300-MARS Digital Medical X-Ray Radiography System

No.

Product Name

Quantity

1

Flat Panel Detector

1

2

DXRay Diagnostic Workstation

1

3

High-Frequency Generator

1

4

X-Ray Tube

1

5

Floor-mounted system

1

6

Bucky Stand

1

7

Collimator

1

8

Grid

1

9

High Voltage Cables

2

10

Paper report printer

1

11

Microphone/Speaker

1

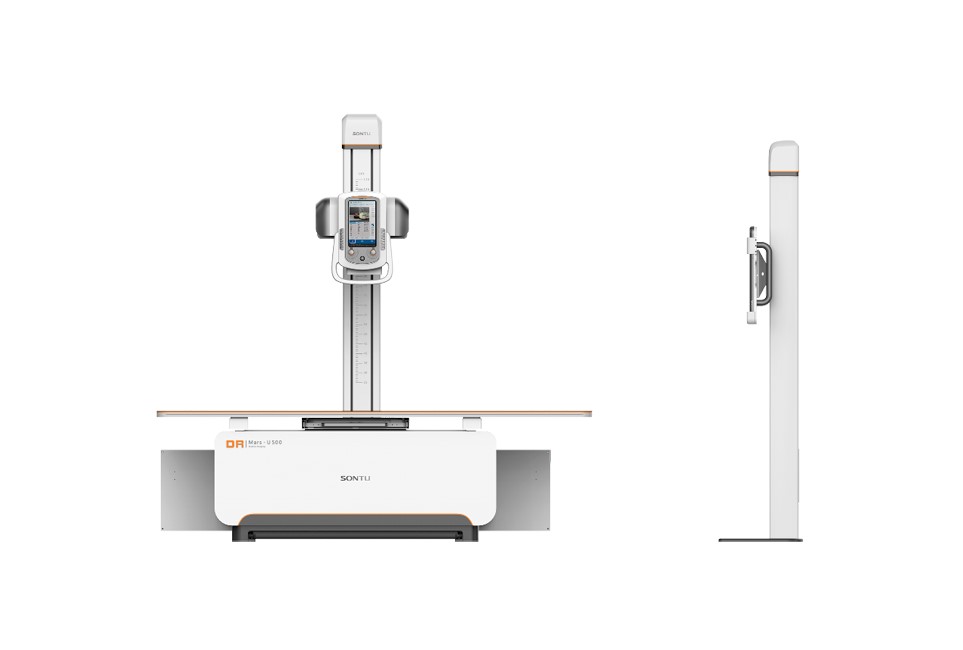

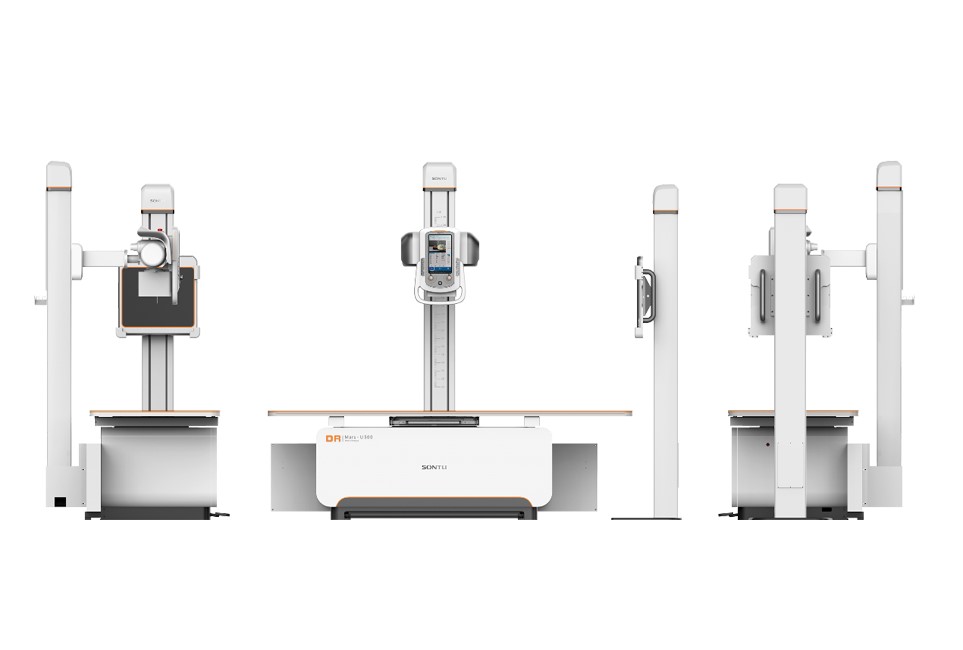

Images of SONTU300-MARS Digital Medical X-Ray Radiography System
