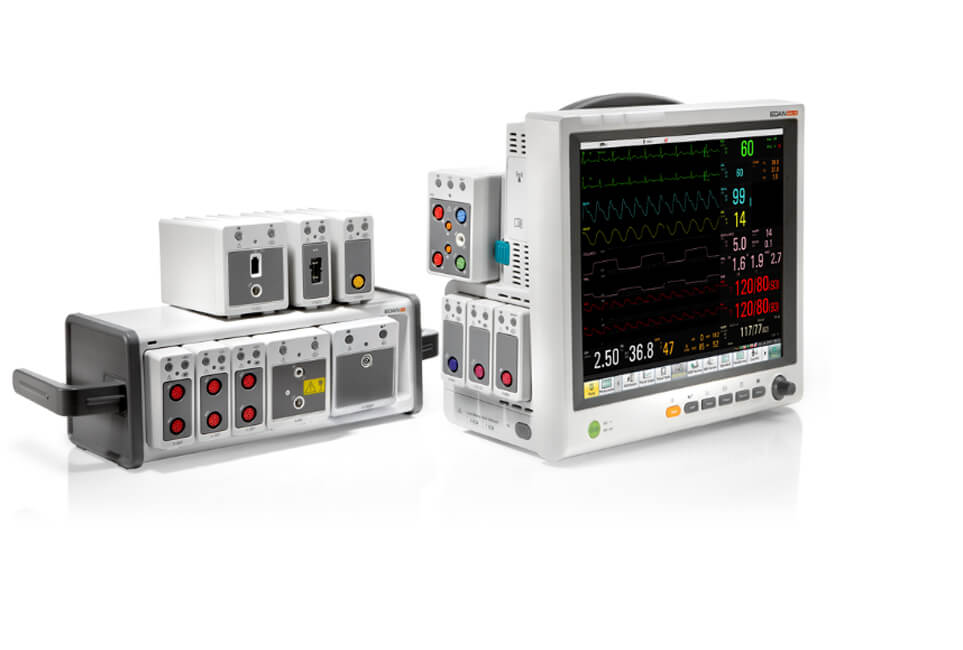

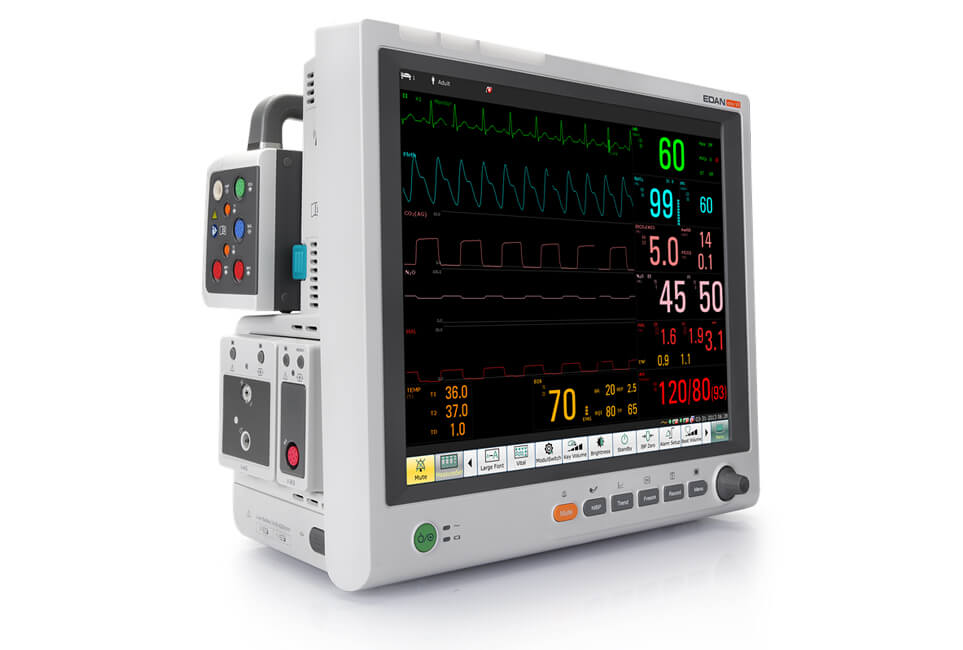

Elite V Series (V5 V6/V8) Modular Patient Monitor

  • The elite V Series Modular Patient Monitor combines the world's leading monitoring technologies in a single platform that seamlessly connects bedside patients to the central monitoring station.

  • Designed as a full modular monitor, the elite V Series is designed to provide comprehensive healthcare solutions, especially for critical care divisions. Using it together with iM20, you may build a seamless connection for patients coming from ambulances to inside the hospital.

Key Features of Elite V Series (v5 V6 / V8) Modular Patient Monitor

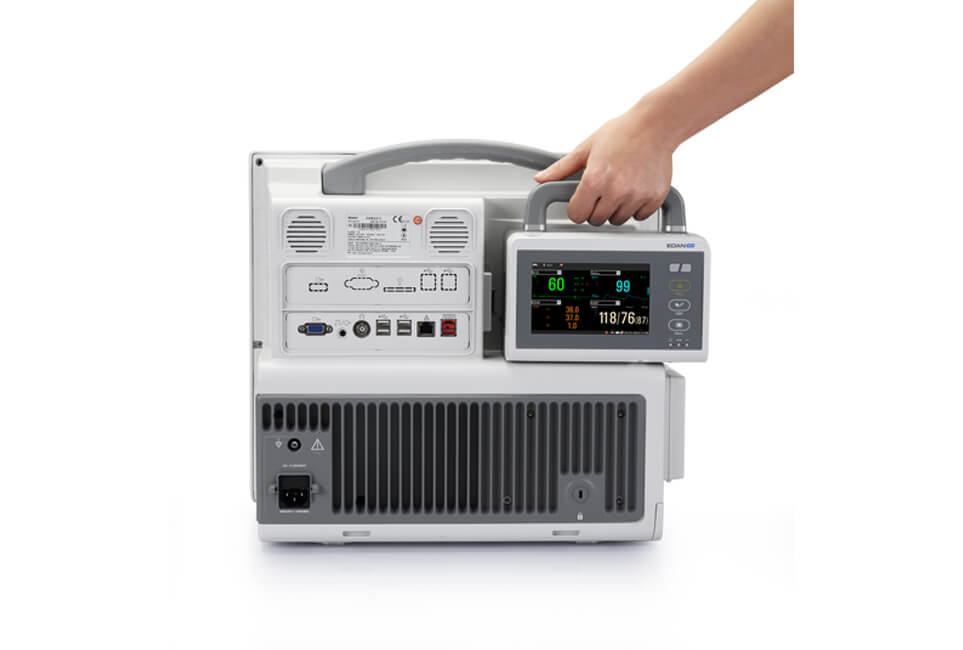

  • A transport monitor iM20 is available, connecting data across different applications, delivering an uninterrupted monitoring during patient transfer.

  • To provide comprehensive cares in high acuity applications, the elite V series can expand many advanced technologies and external devices/systems.

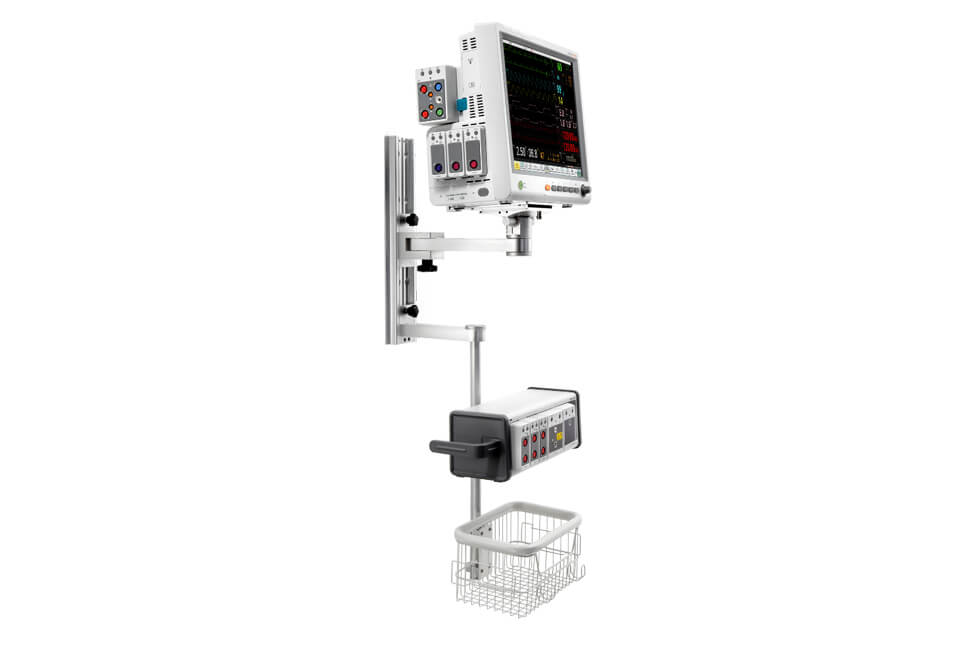

  • A full set of mounting solutions are provided to meet the needs in critical cares.

  • With its plug-and-play modules, the elite V series is able to monitor a wide range of parameters simultaneously, adapting from critical cares to anesthesia monitoring.

  • Various connection options are also employed for the elite V5 to work with other hospital facilities using a nurse call system and the central monitoring station.

  • The proprietary technologies and algorithms that comprise the foundation of the elite V series are scientifically validated and optimized, including iSEAPTM ECG monitoring algorithm with 33 types of arrhythmia detections, SEMIP® ECG diagnosis algorithm with 208 findings, iMATTM SpO2 algorithm, iCUFSTM NIBP algorithm, and G2 CO2 technology.



Specifications of Elite V Series (v5 V6 / V8) Modular Patient Monitor


  • 3/5-Lead ECG, RESPN, NIBP, SpO2, 2-TEMP, PR.

  • HL7 compatible with built-in Wi-Fi capability.

  • Works with other hospital facilities like defibrillators, nurse call system, central monitoring system, and more.

  • 150-hour graphic and tabular trends of all parameters.

  • 720 seconds full-disclosure waveforms review.

  • Arrhythmia, S-T Analysis, OxyCRG, Large font display.

  • V5: 12.1", V6: 15", V8: 17" color TFT LCD touch screen enables top-class quality display of waveforms and measurements.

  • Wireless Connection: Optional.

  • WiFi Compliant: Optional.

  • PC Link Option: Yes.

  • Battery Life: 120 min - 90 min.

  • Optional configurations include: Parameter amplifier mainframe, 12 lead ECG, Thermal recorder, CO2 (Sidestream / Mainstream), 8-IBP, C.O., Anesthesia Gas (Sidestream / Mainstream, and two units of battery.
