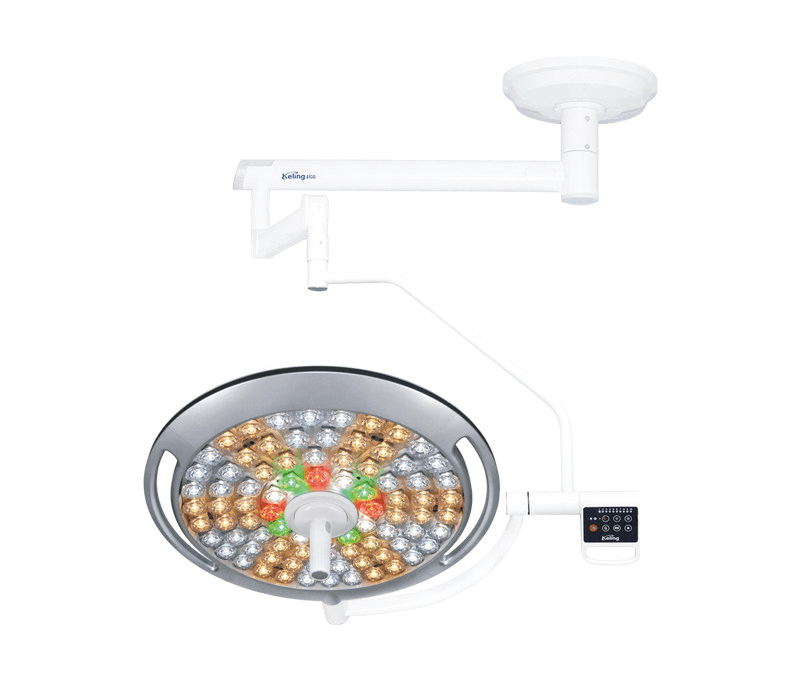

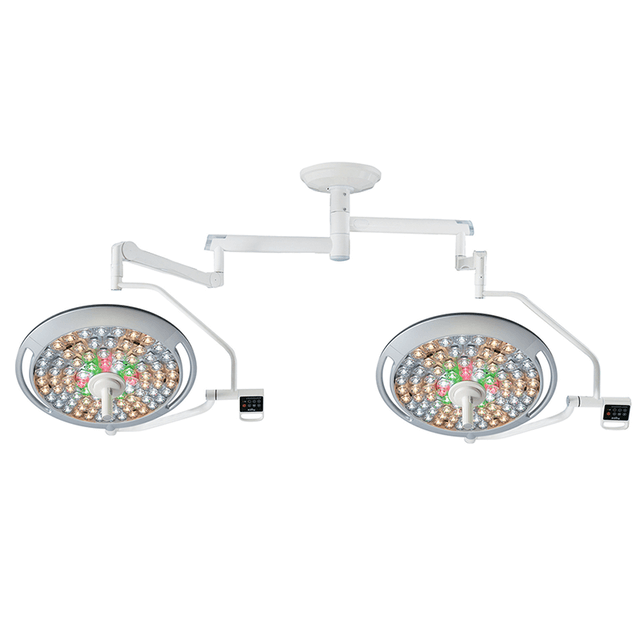

KL-LED·DTR78 D78 Series Operating Light

KL-LED.DTR78 D78 Series (KL-LED.DTR78/DTR78, KL-LED.DTR78, KL-LED.D78/D78, KL-LED.D78) LED Shadowless Operating Light is suitable for various operation needs. It is a modern ideal surgical lighting equipment operating room and purify the operating room.

Key Features of KL-LED·DTR78 D78 Series Operating Light


  • Adopt imported LED cold light source.

  • Nano coating and die-cast aluminum enclosure creating a streamlined excellent cooling effect. Intelligent touch control screen.

  • The removable handle sheath can be cleaned and disinfected.

  • The no welding titanium alloy arm, imported spring arm is lifted and lowed easily and freely.

  • The imported switch power supply is adopted to control the voltage, making the working voltage permanently stable.

  • Adjustable temperature, R9 features that enhance the red color rendering index.

  • The service life of LED shadowless lamp is long (50,000h).

  • The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.

  • The no welding titanium alloy arm, imported spring arm is lifted and lowered easily and freely.



Specifications of KL-LED·DTR78 D78 Series Operating Light


Model

KL-LED·DTR78/ DTR78

Illumination at 1m(lux)

160000/160000

Illumination at 1m on Endo model(lux)

15000

Light field diameter D10

180±40/180±40

D50 mm

110±35/110±35

Depth of illumination L1+L2 mm

150

Color rendering index (Ra)

100≥Ra≥85

Red color index

R9≥97

Optional color temperature(K)

6700K ≥Tc≥3500k

Number of LED bulbs

84/84

Average bulb life (hours)

50000h

Heat-to-light ratio (mW/m ²lx)

<6

Power supply

110-240V

Input power (VA)

150W/150W

Ceiling height for installation(cm)

2.7-3.2m
