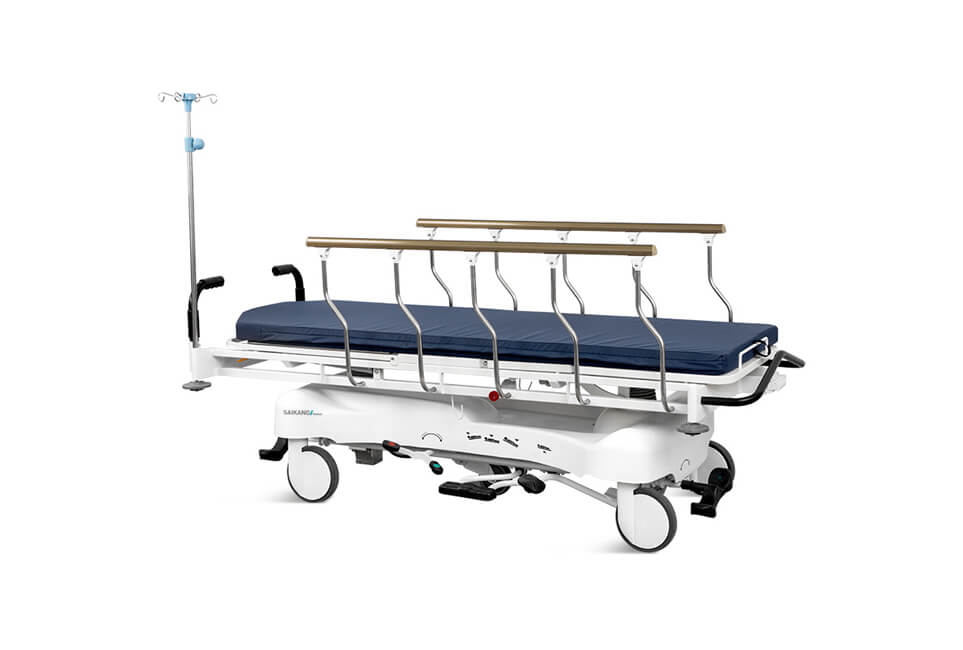

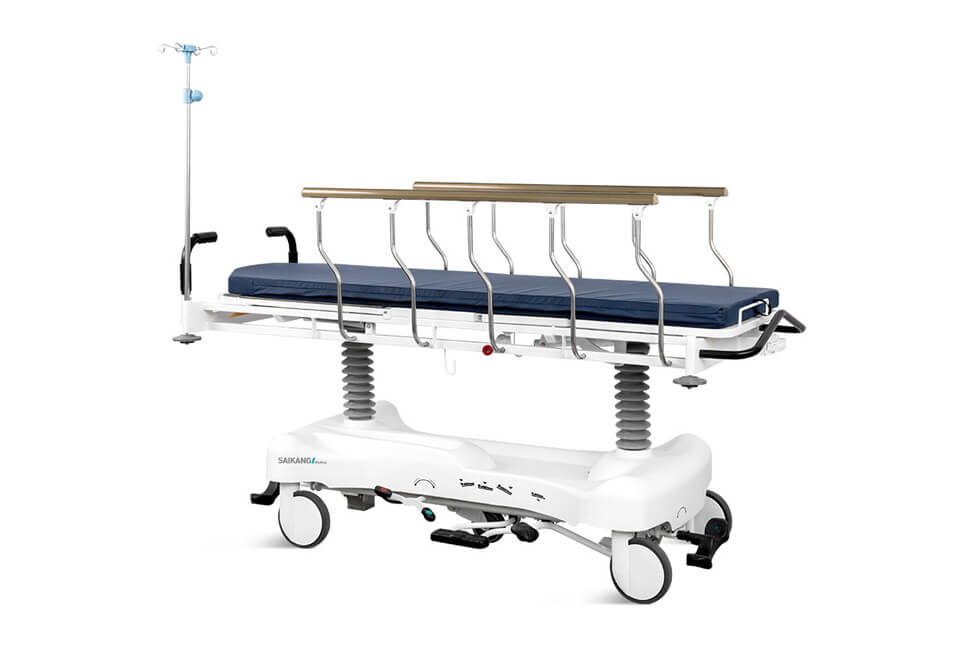

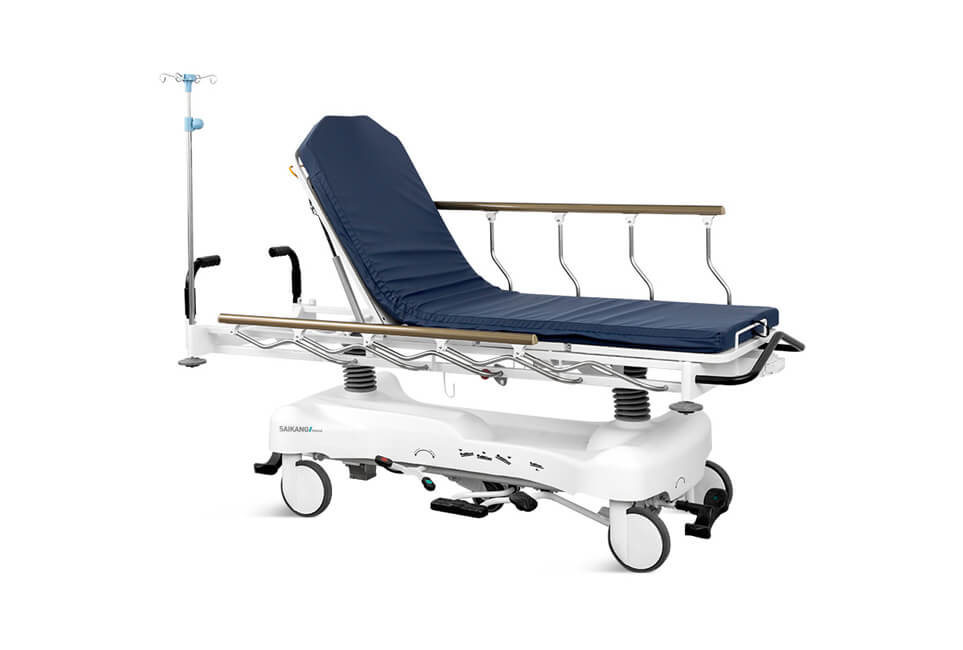

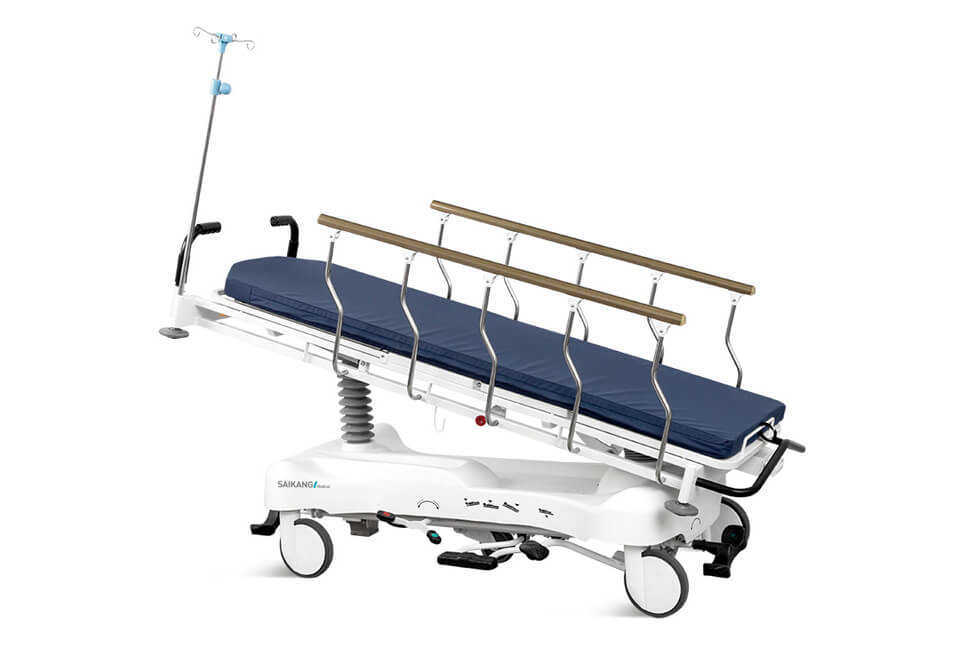

SKB041-3 Patient Stretcher & Transfer

  • Baosteel from Fortune Global 500. Panasonic Robotic ensure 360° full smooth welding.

  • Environmental plastic can be sterilized in 100°C, tensile up to 30MPa.

  • 11 process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact.

  • Break spring keep qualified after 10,000times uninterrupted break.

Key Features of SKB041-3 Patient Stretcher & Transfer


  • 4 functions: backrest by qualified air spring, height adjustment, Trendelenburg and revised Trendelenburg through two USA hydraulic pumps.

  • Can be engaged to facilitate direction control, enabling users to navigate the stretcher easily in hectic and dynamic environments.

  • Four double side casters of 6inch diameter, simultaneously lockable by the step pedal at both sides.

  • Modern design, versatile, ergonomic, providing a comfortable experience for the patient.

  • Mattress: 60mm thickness fire-retardant high-density foam with PU cover.

  • 5 functions manual hydraulic.



Technical Parameters of SKB041-3 Patient Stretcher & Transfer


External size (LxW)

2100x850x(630-930)mm

Backplate adjustment

0-75°(±10°)

Reverse trendelenburg

0-15°

Trendelenburg

0-15°

Knee-rest adjustment

0-45°



Technical Configuration of SKB041-3 Patient Stretcher & Transfer


USA hydraulic pump

2pcs

Crank system

1set

Backrest air spring

2pcs

8" German castors, central Locking

2pcs

Emergency push handle

1set

Directional wheel

1pc

Folding side rail

1set

Φ74mm wall bumper wheel

4pcs

IV pole previsions

4pcs

Mattress

1pc

IV pole

1set

Central locking brake pedal

2sets

Directional wheel release pedal

2pcs

X-ray translucent bed platform

1set
