  • C3A&C6A Video Colposcope

C3A&C6A Video Colposcope

Considering different clinic position, we provide two types of colposcopes, C3A&C6A respectively. C3A&C6A is equipped with work station, which combines monitor and keyboard. As for C3A&C6A, diverse stands are provided for doctors to choose from, such as rolling stand, swing arm stand basic, swing arm stand with PC tray, swing arm stand with monitor arm and swing arm stand full set.

Key Features of C3A&C6A Video Colposcope


  • With its bright LED cold lighting system, high-resolution camera, and electronic green filter, C3A/C6A Video Colposcope realizes a full-screen display of precise cervical examination, offering crucial and accurate information for clinical decision making to the gynecologist.

  • LED cold lighting system reproduces an original view of the tissue.

  • An advanced and fast auto-focusing system ensures a clear image.

  • Remote capture control and user-friendly keyboard layout for easy operation.

  • An electronic green filter enhances vascular image display without compromise of illumination.

  • Acetic acid and iodine reaction test timer to capture the right and precise image.

  • Real-time display of magnification.

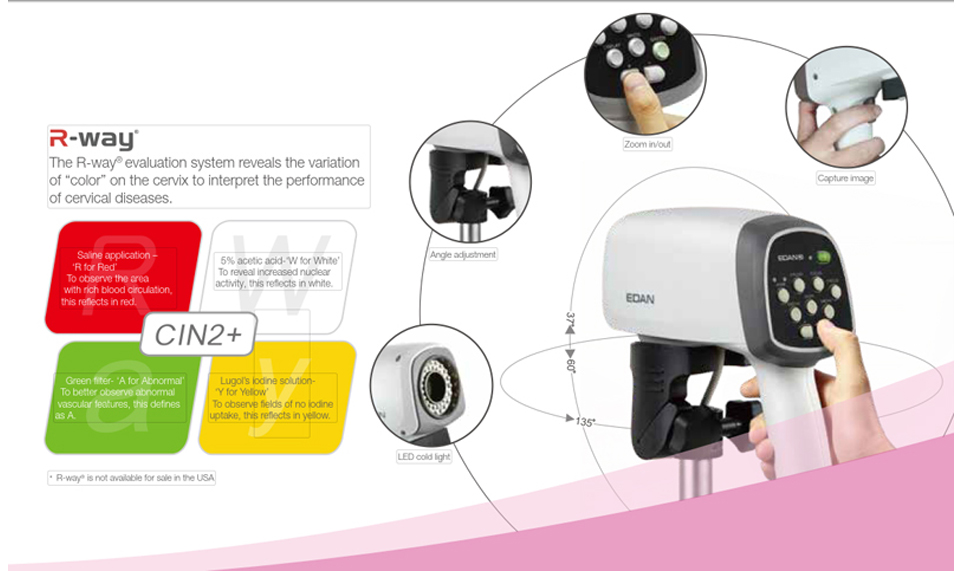

  • The R-way® evaluation system reveals the variation of "color" on the cervix to interpret the performance of cervical diseases.



Specifications of C3A&C6A Video Colposcope


  • Pixel: 440000(PAL); 380000(NTSC)

  • Focus Mode: Manual, Auto

  • Output Signal: S-Video

  • Illumination: ≥1600lux / ≥2500lux

  • Magnification: 1~28X / 1~36X

  • Operation Distance: 200mm~300mm

  • Field of View: 3X≥∅100mm (275mm) OR>20.5° / 18X≥∅15mm (275mm) OR>3°

  • System Resolution: ≥500TVL

  • Space Resolution: ≥10lp/mm

  • Image Geometric Distortion: ≤3%

  • Camera Light Source White: loop group LED light

  • Imaging Mode: White light (3 levels), Electronic green filter (3 levels)

  • Capture Box: 3-pin&4-pin aviation interface, USBB & DB9 interface, Power switch, DC port

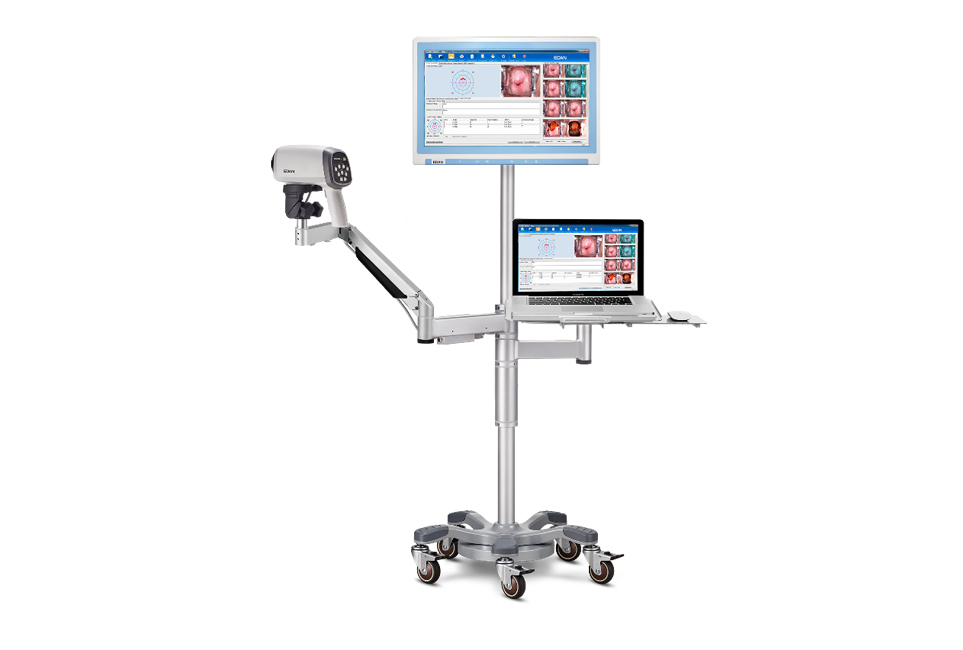

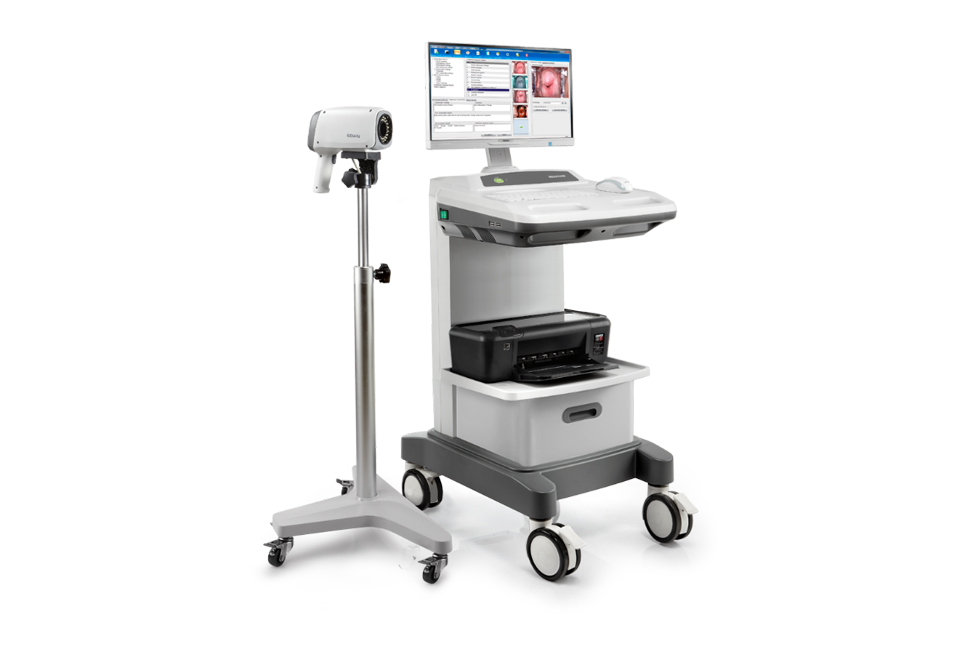

Image of C3A&C6A Video Colposcope
