  • TI-2000 Transport Incubator

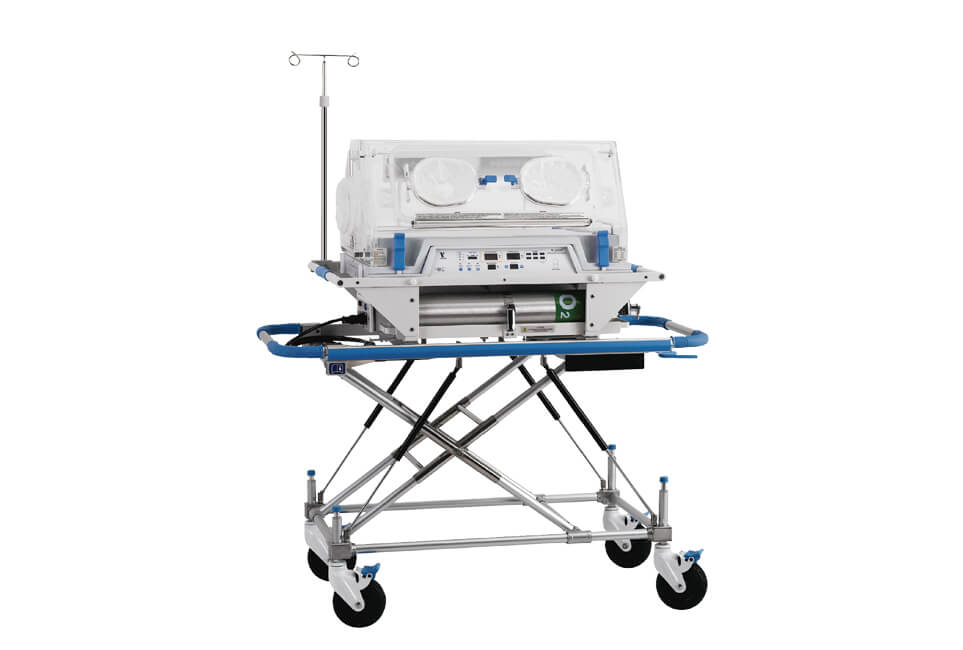

TI-2000 Transport Incubator

TI-2000 is a neonatal transport incubator/isolette used for short-distance transportation of premature infants. Taking comfort and convenience as the main design concept, while maintaining a constant temperature, provides a more convenient transfer operation process and creates a comfortable transfer environment.

Key Features of TI-2000 Transport Incubator


  • Two temperature control modes: Air mode and Baby mode controlled by micro-computer;

  • Use AC Power and DC Power alternatively, DC 12V or DC 24V Power on the ambulance;

  • Set temperature, Air temperature, Baby temperature and Internal battery capacity can be displayed separately;

  • Multiple failure alarm indications;

  • ">37℃" temperature set function as optional configuration;

  • Double wall acrylic glass hood with side door so that the bassinet can be pulled out from it;

  • Passive humidification;

  • The height of whole unit can be adjusted;

  • Oxygen supply system;

  • Observation lamp.



Technical Specifications of TI-2000 Transport Incubator


  • AC Power supply: AC220V-230V/50Hz or AC110-120V/50-60Hz

  • DC Power supply: DC12V/10A or DC24V/6A

  • Input power: 400VA

  • Mode of control: Air mode and baby mode controlled by micro-computer

  • Air temperature control range: 25°C-37C (Override mode 37-38℃)

  • Baby temperature control range: 34℃-37℃(Override mode 37-37.5°℃)

  • Skin temperature sensor accuracy: ±0.3℃

  • Temperature variability: ≤1.0℃

  • Temperature uniformity: ≤1.5℃(mattress is on the horizontal position)

  • Noise inside hood: ≤ 52 dB(A)

  • Failure alarm: over-temperature alarm, temperature deviation alarm, sensor alarm,

  • Motor Fan Failed Alarm, Power failure Alarm and so on

  • Operating at temperature equilibrium: 90min (Set Temp 36C-Ambient 15℃)
