  • Science Lab Microscope BM1000

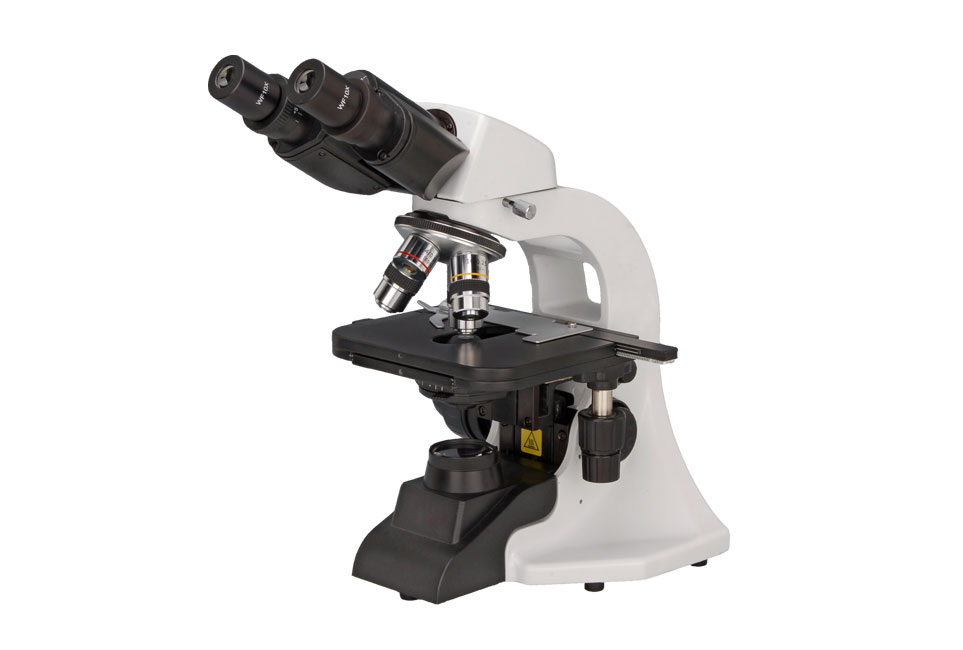

Biological Microscope BM1000

  • The BM 1000 is a biological microscope with beautiful appearance and excellent cost performance.

  • It is ideal for use in the biological and medical fields.

Key Features of Biological Microscope BM1000


  • It can be used in health institutions, laboratories, research institutes, colleges and universities for biological and pathological education and professional research, clinical experiments and routine medical tests.



Product Parameters of Biological Microscope BM1000


Viewing Head

Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm

Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm

 Eyepiece

WF10X/18

WF16X/11

 Objective

Achromatic Objective 4X, 10X, 40X, 100X

Plan Achromatic Objective 4X, 10X, 40X, 100X

Infinite Plan Achromatic Objective 4X, 10X, 40X, 100X

 Nosepiece

Quadruple Nosepiece

 Focusing System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

 Stage

Double Layers Mechanical Stage132X142mm, Moving Range 75X40mm

 Condenser

Abbe Condenser NA1.25 with Aperture Diaphragm

 Illumination

S-LED Illumination, Brightness Adjustable

12V/20W Halogen Lamp, Brightness Adjustable

Kohler Illumination

 Optional

Photo Attachment, Video Attachment, Dark Field Condensor
