  • B4w Manual Crank Hospital Bed

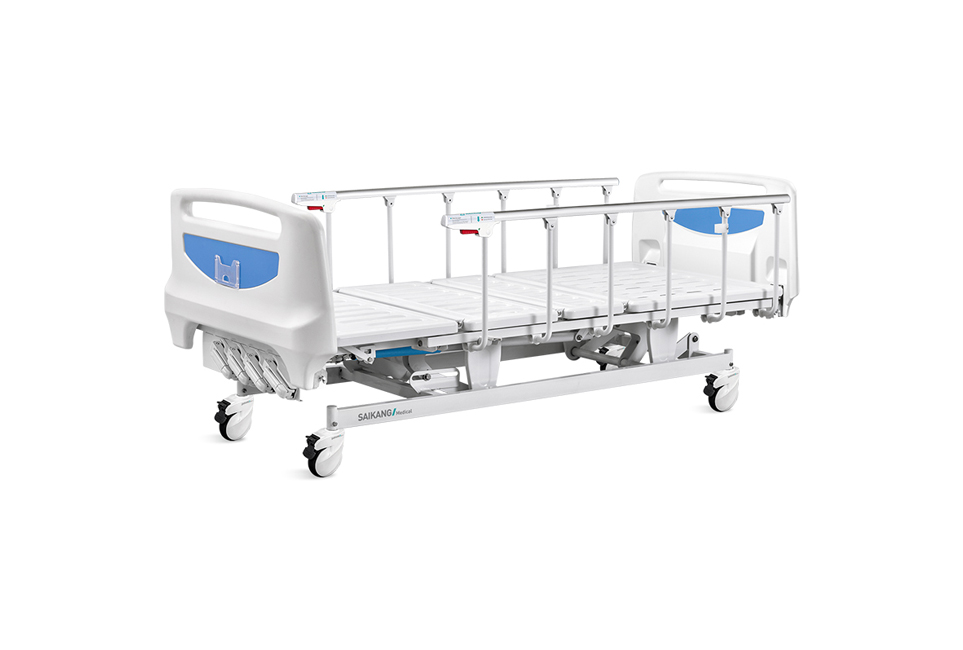

B4w Manual Hospital Bed

  • Modern design. Use a new and strong inserted ABS fire-proof panel to avoid off. Easy to be cleaned and installed.

  • L-shaped foldable guardrail (Patent), bent tube, solid installing, 0 shakings, anti-pinch, ensure patient's safety.

Key Features of B4w Manual Hospital Bed



  • Baosteel from Fortune Global 500. 11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact.

  • Stamping forming platform, smooth surface no welding scar, bearing 250KG load. Option ABS platform and resin X-ray translucent platform.

  • TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts.

  • Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500 times.

  • Extreme protection device sounds when tipped to the max position.

  • Strong pallets to increase the bed height adjustment (460-720mm).



Technical Parameters of B4w Manual Hospital Bed


Size (LxWxH)

2180x960 mm

Bed height adjustment

460-710 mm

Mattress platform

1925x830 mm

Safe working load

250 kg

Back-rest adjustment

0-75° (±10°)

Knee-rest adjustment

0-35° (±10°)

Reverse trendelenburg

0-12°

Trendelenburg

0-12°



Technical Configuration of B4w Manual Hospital Bed


Manual crank

4 pcs

5" hardshell castors with brake

4 pcs

Foldable side rail with ProErgo-Handle™

1 set

ABS bed ends with safe lock

1 set

IV pole

1 set

IV pole prevision

4 pcs

Drainage hook

2 pcs
