  • A6k Motorised Hospital Bed
  • A6k Motorised Hospital Bed

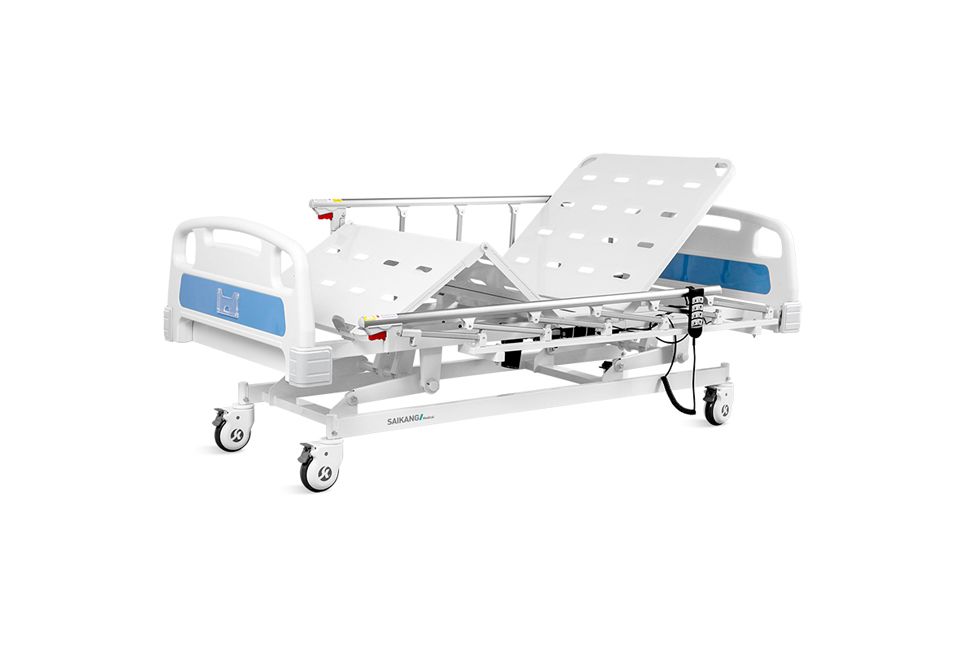

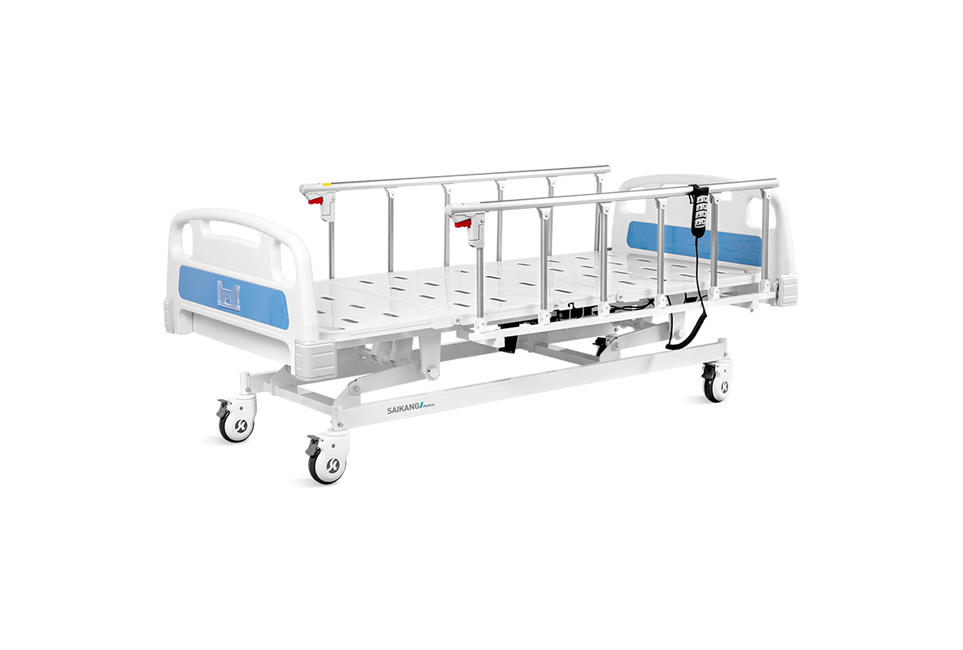

A6k Electric Hospital Bed

  • Baosteel from Fortune Global 500.11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12 mm, brightness 60°, paint can resist 50kg impact.

  • Environmental plastic can be sterilized at 100°C, tensile up to 30MPa Virgin ABS material.

Key Features of A6k Electric Hospital Bed


  • Linear motor, with UL/ROHS/EN standard. Noise under 50 dB, with lifetime 20,000 times movement.

  • Modern design. Using a new and strong inserted ABS fire-proof panel avoids off. Easy to be cleaned and installed.Net weight is over 3.6kg.

  • Stamping forming platform, smooth surface no welding scar, bearing 250 kg load. Option ABS platform and resin X-ray translucent platform.

  • 5" covered casters. TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts. Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500 times.



Technical Parameters of A6k Electric Hospital Bed


External size (LxWxH)

2110x960x(400-710)mm

Mattress platform

1925x820mm

Safe working load

200kg

Back-rest adjustment

0-75°(±10°)

Knee-rest adjustment

0-35°(±10°)

Voltage

100-240 V

Frequency

50/60 Hz



Technical Configuration of A6k Electric Hospital Bed


Linear motor

3pcs

Hand controller

1pc

5" covered castor

4pcs

Foldable side rail

1set

ABS bed ends with safe lock

1set

IV pole

1set

IV pole prevision

4pcs

Drainage hook

4pcs

ABS mattress stopper

2pcs
