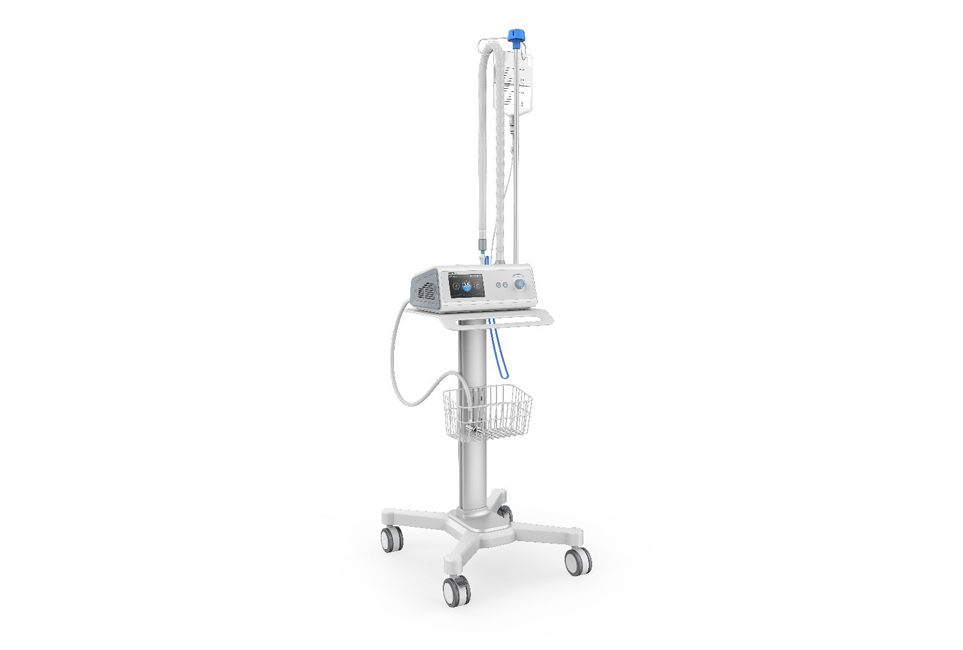

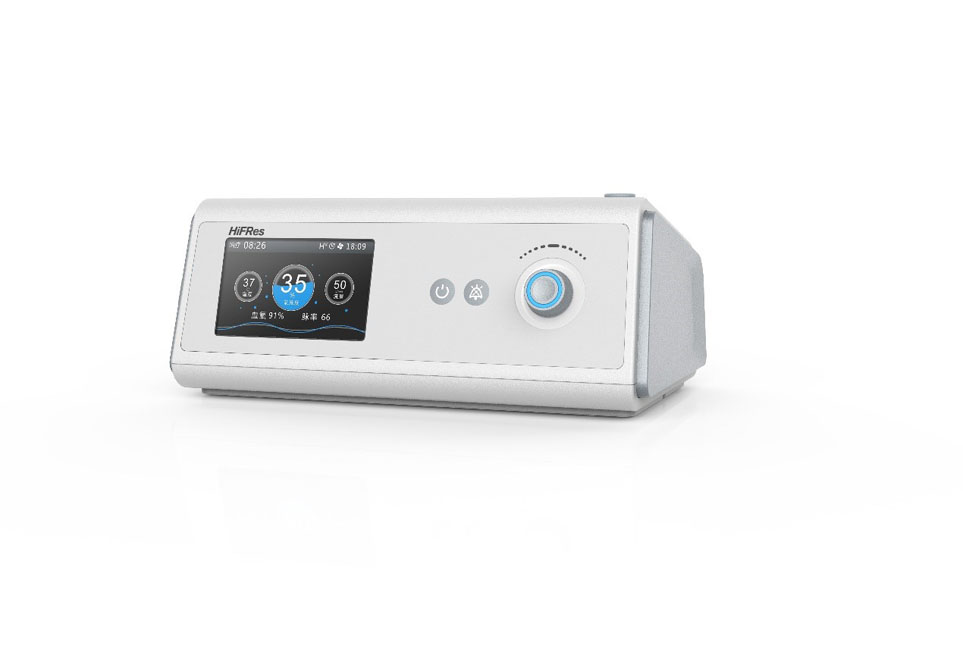

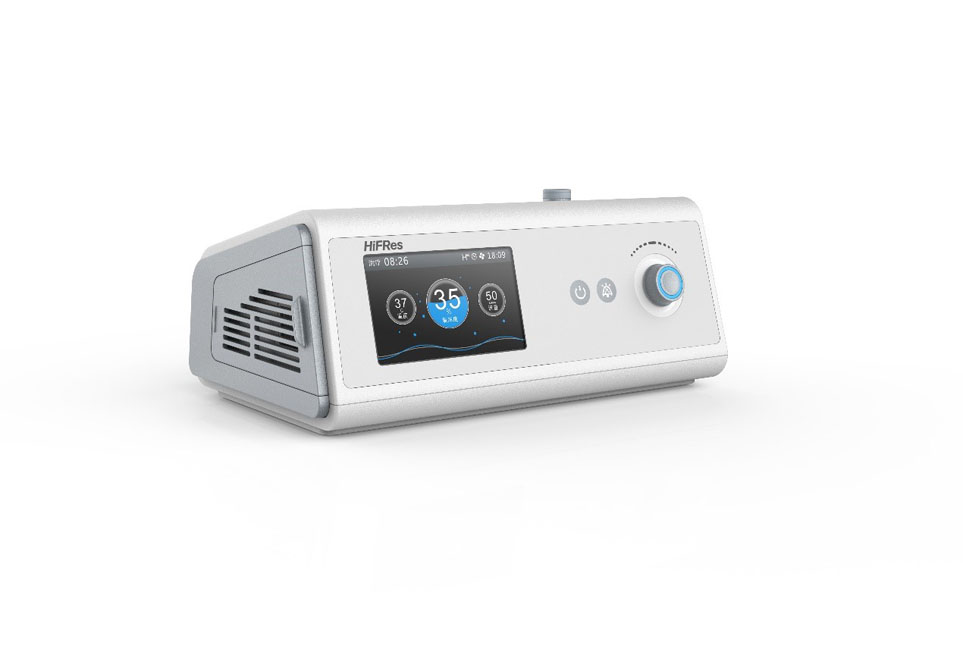

High Flow Heated Respiratory Humidifiers

  • Auxiliary oxygen: Maintain a stable high inhaled gas oxygen concentration, improve oxygenation, reduce blood oxygen deficiency, and increase effective alveolar ventilation.

  • Positive airway pressure: Produce low end-expiratory positive pressure (PEEP), reduce breathing power consumption, improve breathing frequency; promote the alveolar opening, conducive to the diffusion of oxygen.

Description of High Flow Heated Respiratory Humidifiers


  • High flow heated respiratory humidifiers is mainly used to provide humidified and heated air-O2 mixed gas to the nasal cavity directly through a nasal congestion catheter without sealing, which is higher than the peak inspiratory flow rate of the patient. The oxygen concentration is accurate and adjustable, which makes the breathing more comfortable. It is an effective respiratory therapy that is suitable for invasive or non-invasive patients with spontaneous breathing, not for life support.

  • Applicable department: Respiratory medicine, ICU, Emergency room, Neurology, Neurosurgery, Cardiothoracic surgery, Pediatrics (≥3 kg), Rehabilitation ward, Geriatric ward, etc.



Key Features of High Flow Heated Respiratory Humidifiers


  • Reduce dead space: Reduce the dead space of mouth, nose and pharynx, promote the conversion of oxygen and improve ventilation efficiency.

  • Airway humidification: Gas is heated and humidified to improve mucous membrane cleaning function, promote sputum humidification and elimination, and reduce the chance of infection.

  • As many as 12 alarms to ensure that use errors are detected in real time and keep the treatment process safe and effective.



Technical Specifications of High Flow Heated Respiratory Humidifiers




Functional items

Models

HF8

HF7

HF6





O2 control

Measurement of O2 concentration

O2 Limit alarm

Settable range

21%-100%

21%-100%

Oxygen Accuracy

±5%

±5%


O2-Air Control mode


Software


Software


Buoy flowmeter

control


Flow control function

Settable range

2-80L/min

2-70L/min

2-60L/min

Flow Accuracy

±5L/min(High flow mode:25L/min~80L/min)

±2L/min(Low flow mode:2L/min~25L/min)

Measurement


Temperature control   function

Settable range

31℃~37℃

7 levels

31℃~37℃

7 levels

31℃~37℃

7 levels

Temperature Accuracy

±2℃

±2℃

±2℃

Measurement

Review function

History Review




Timing function

Accumulated therapy time

Total use time

Preset signal therapy

duration

Night Mode

Note: ● indicates with this configuration; — indicates no such configuration.
