Natch CS Fully Automated Nucleic Acid Extraction System

Natch CS is a full-automatic nucleic acid extraction system. Powered by a professional liquid handling station, designs a top-throughput, top-precision, top-efficiency system that allows a complete workflow of sample pretreatment and nucleic acid extraction. Through combining precise micro pipetting, highly efficient paramagnets technology, and comprehensive contamination control in one, Natch CS is really easy to operate. Its one-button operation can furthest free your hands.

Key Features of Natch CS Fully Automated Nucleic Acid Extraction System

  • 96% samples throughput<130 min. (Fast HBV, Fast HPV, etc at less than 40 min.)

  • 3 batches (96% samples/batch x3) per day per unit

  • Room temperature lysis avoiding heating aerosol contamination

  • 1 time washing for organic & inorganic together

  • No elution of the heads

  • >25% consumables saved compared to all others

  • As many as 16 panels including kits on magnetic beads like HBV, HCV, etc. and kits on One-tube platforms like fast HBV, HPV, etc

  • As many as 6 parameters simultaneous process (STDs, HPV, etc)

  • As many as 14 PCR thermocyclers' validation with Natch CS including ABI, Agilent, Biorad, etc


Technical Specifications of Natch CS Fully Automated Nucleic Acid Extraction System

  • ample supported: Serum, plasma, swab, etc.

  • Consumable supported: All size blood types, 1.5mL/2.0mL centrifuge tubes

  • Throughput:48 samples/batch (MB); 96 samples/batch (OT)

  • Extraction Volume: 1mL~3mL

  • Pipetting volume: 10~100uL

  • Pipetting tip: 2-channel tip

  • Extraction methodology: superparamagnetic beads (MB); one tube (OT)

  • Magnetic field: permanent magnet

  • Magnetic rack: elevating magnetic rack

  • Extraction time: MB; (48samples) 100min; OT: (96samples) 40min

  • Operating system: Microsoft Windows XP/Vista/7

  • Communication: USB, RS232, LIS

  • Operating temperature: 15~32℃

  • Ambient humidity: 30%~80

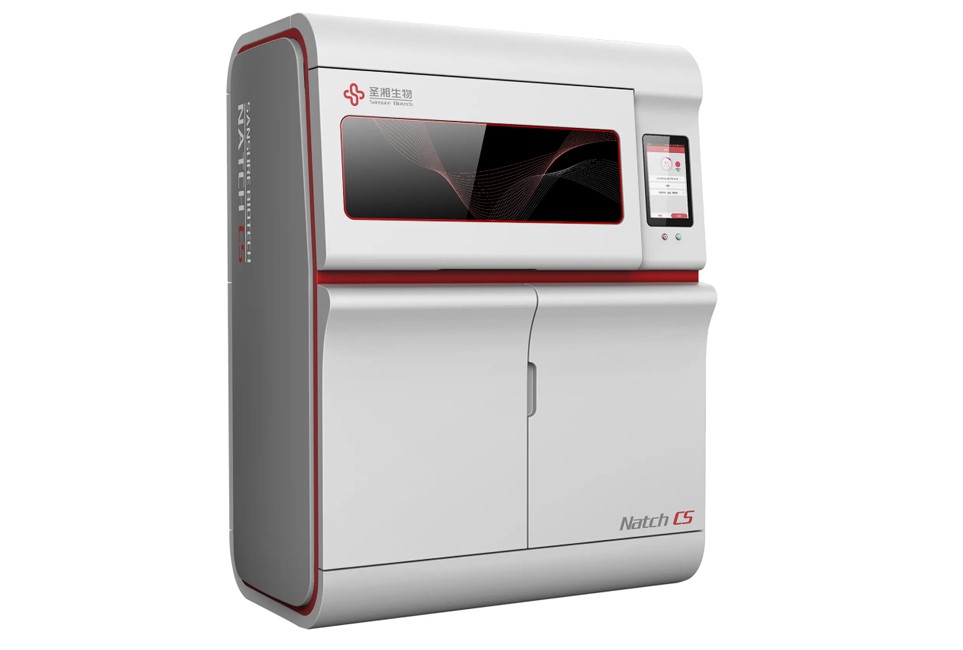

Images of Natch CS Fully Automated Nucleic Acid Extraction System
