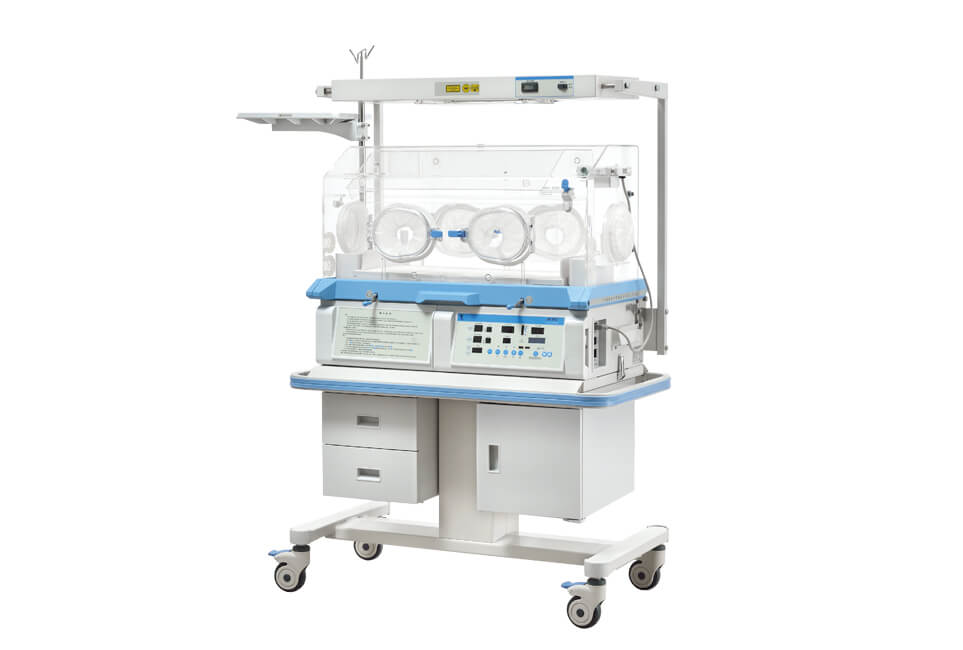

YP-970 Infant Incubator

YP-970 is a practically multi-functional infant incubator. Its design is based on the concept of safety, snugness, and simplicity. While keeping temperature constantly stable, it provides humidity and oxygen concentration display and control to allow simpler operation.

Key Features of YP-970 Infant Incubator

  • Two control modes: Air mode and baby mode controlled by micro-computer;

  • Humidity control system;

  • Oxygen concentration control system.

  • Set temperature, air temperature, baby temperature, humidity, and oxygen are displayed separately;

  • >37℃ temperature set function;

  • Failure alarm indication;

  • Embedded integrated sensor box;

  • integrated water reservoir in the shape of the drawer;

  • Double-wall hood, automatic air circulation device;

  • The inclination of the bassinet is adjustable;

  • RS-232 connector.

Technical Specifications of YP-970 Infant Incubator

  • Power supply: AC220V-230V/50Hz or AC110-120V/50-60Hz

  • Max Power Output: 1000VA

  • Mode of control: Air mode and baby mode controlled by micro-computer

  • Air temperature control range: 25℃-37℃ (override mode 37-39C)

  • Baby temperature control range: 34-37℃ (override mode 37-38℃)

  • Accuracy of skin temperature sensor: ±0.3℃

  • Temperature variability: ≤0.5℃

  • Temperature uniformity: ≤0.8°C (mattress is on the horizontal position)

  • The inclination of the bassinet: ±12°

  • Noise inside hood: ≤ 45dB(A) (Environment noise ≤ 35dB(A))

  • Failure alarm: over-temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, sensor box position alarm, low water alarm, tank position alarm, and system alarm

  • Humidity display range: 0%RH~99%RH

  • Humidity control range: 0%RH~90%RH

  • Accuracy of humidity: ±10%RH

  • Indication range of oxygen concentration: 0%~99%

  • Control range of oxygen concentration: 20%~60%

  • Accuracy of oxygen concentration: ±3%
