  • Horizontal Centrifuge D2012plus
  • Horizontal Centrifuge D2012plus
  • Horizontal Centrifuge D2012plus

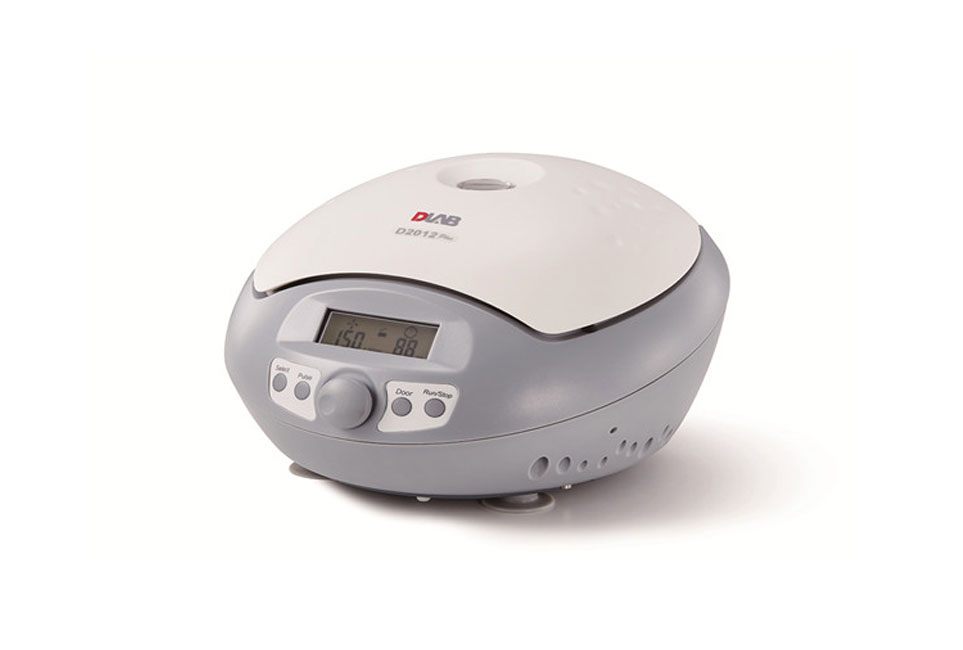

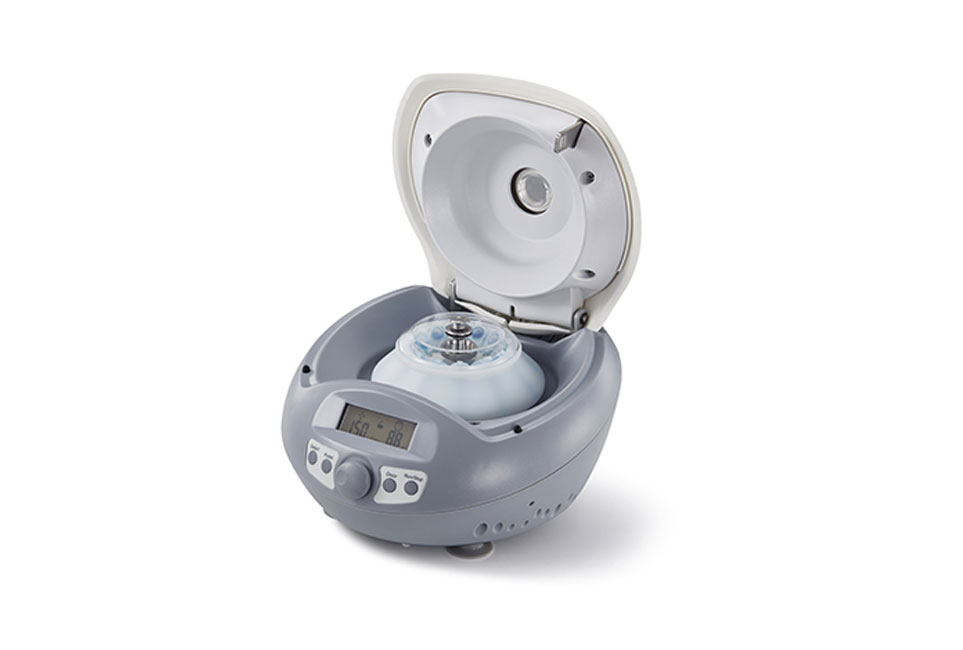

Centrifuge D2012plus

  • The powerful centrifugal force of 15100xg and max. speed of 15000rpm ideal for various applications

  • Brushless DC motor drive quickly accelerates the rotor to set speed

  • Quiet working, Low noise ≤56dB

Key Features of Centrifuge D2012plus


  • D2012 is proven by IEC/EN 61010-1

  • D2012 Plus passed the rigorous explosion-proof test and was accredited with CE, cTUVus, FCC certificates, and MCA test. MCA test according to IEC/EN61010-2-20



Product Parameters of Centrifuge D2012plus


Specifications

D2012 plus

Max. Speed

15000rpm(500-15000rpm), increment:100rpm

Max. RCF

15100×g, increment: 100×g

Speed Accuracy

±20rpm

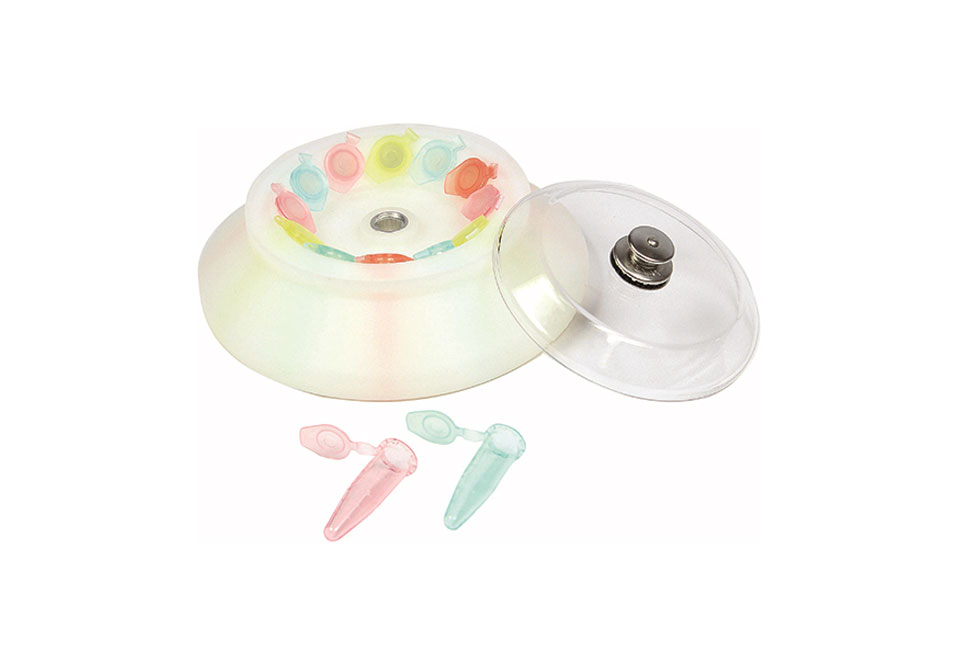

Rotor Capacity

0.2mL/0.5mL/1.5mL/2mL×12

Run Time

30sec-99min/Continuous

Driving Motor

Brushless DC motor

Safety Devices

Door interlock, Over-speed detection,

Over-temperature detection, Automatic internal diagnosis

Power

Single-phase, AC100V-240V
50Hz/60Hz, 3A,100W

Noise level

≤54dB

Acceleration/Braking time

11s↑/9s↓

Dimension[D×W×H]

255×245×140mm

Weight

6kg
