  • XHZ-90L Phototherapy Instrument

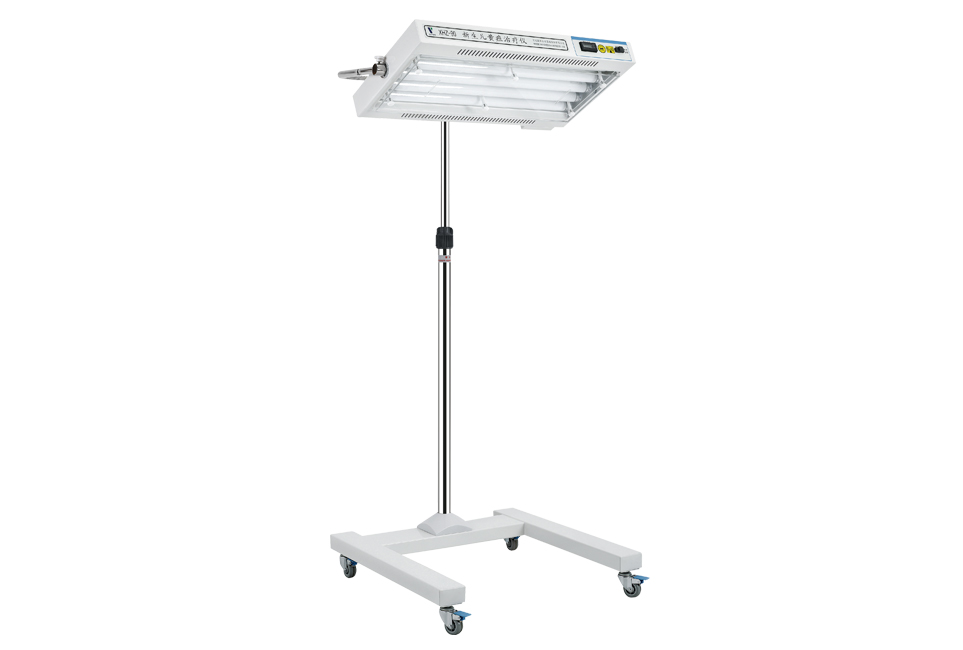

XHZ-90 Infant Phototherapy Equipment

XHZ-90 Series are applied to multiple circumstances. Design based on the concept of simplicity to offer infants effective treatment.

Key Features of XHZ-90 Infant Phototherapy Equipment


  • Mobile and fixed models available (Fixed model is specially mounted on our company's infant incubator);

  • Radiate resources: Blue fluorescent lamp;

  • Timer to count phototherapy time;

  • Angle of lamp module can be adjusted (for mobile model);

  • Height of lamp module can be adjusted (for mobile model);

  • Wheels can be locked (for mobile model).



Technical Specifications of XHZ-90 Infant Phototherapy Equipment


  • Power requirement: AC220V-230V/50Hz or AC110-120V/50-60Hz,150VA

  • Light source: Blue fluorescent lamp

  • Peak spectrum of radiant light resource: 436nm

  • The total spectral irradiance on the effective surface area:

    ≥1mW/cm(for mobile XHZ-90)

    ≥0.6mW/c㎡(for foxed XHZ-90)

  • Average value general bilirubin radiation on the effective surface area:

    ≥0.9mW/cm(for mobile XHZ-90)

    ≥0.64mW/cm(for fixed XHZ-90)

  • Uniformity of the total irradiance for bilirubin:>0.4

  • Dominant wavelength of blue light: 420-470nm

  • Lifetime of LED: 20000hrs

  • Lifetime of blue filuorescent lamps: 2000hrs

  • Adjustable range for the radiation angle of lamp module: 0-60° up from horizontal(Only for Mobile model)

  • Adjustable range for the height of lamp module: 1350mm-1650mm (Only for Mobile model)

  • Built-in timer range:0-9999 hrs 59min
