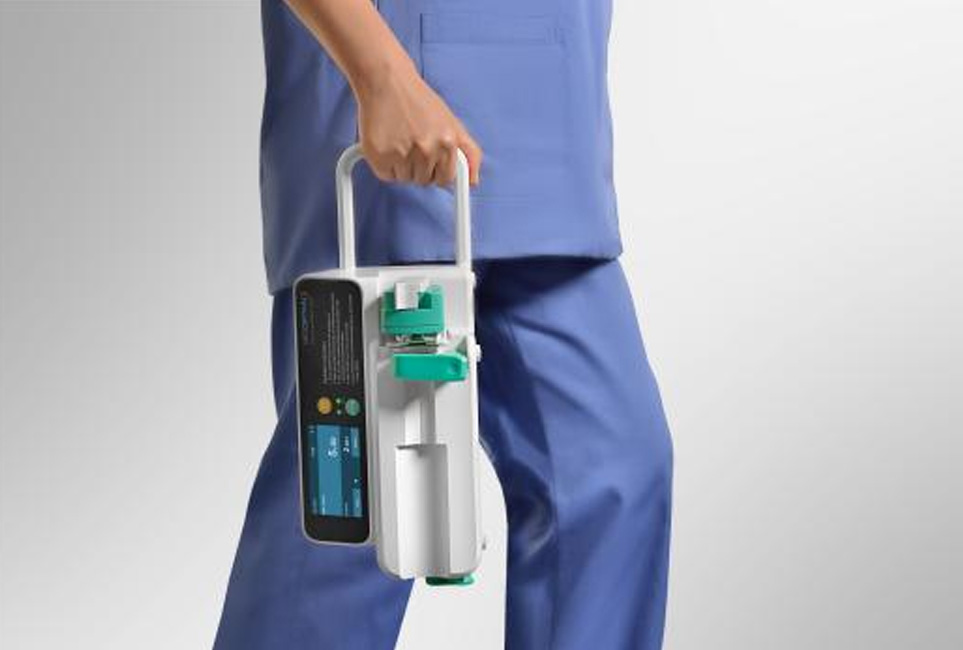

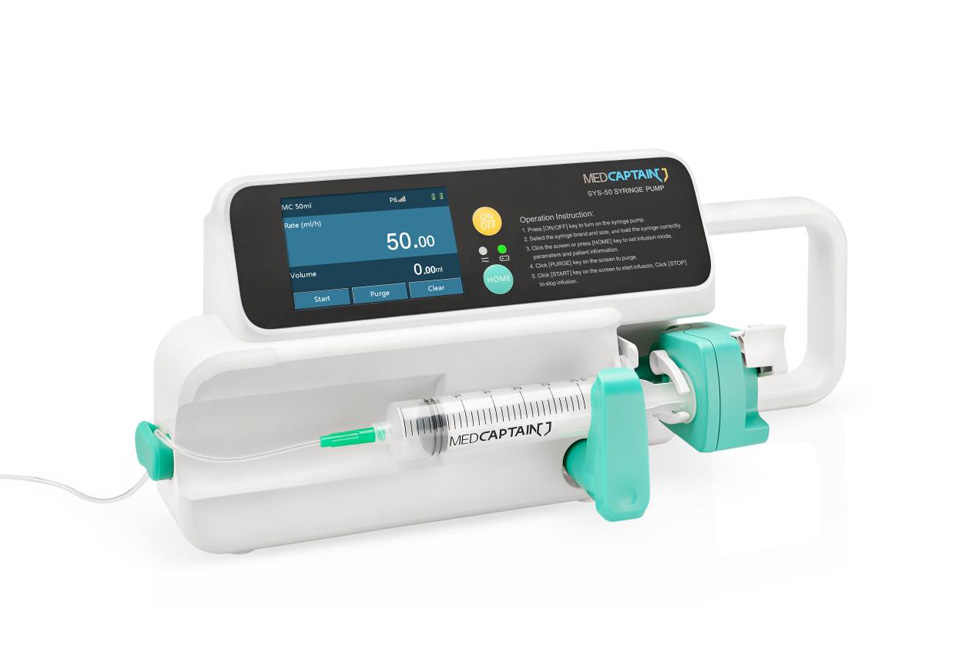

SYS-50 Syringe Pump

A Syringe Driver is a device that regulates and automates syringe injections through tubes and a pumping mechanism. SYS50 Syringe pump allows the user or medical professional to enter values such as volume of fluid, rate of injection and can detect air bubbles and other complications in IV treatment.

Key Features of SYS-50 Syringe Pump


  • Medical grade touchscreen, user-friendly.

  • 0.01ml/h flow rate with 2ml and 3ml syringe.

  • 12 infusion mode including PCA and TCI.

  • Connectable with any HIS/CIS via either WiFi or LAN.

  • 3.5″ Touch Screen Operated with the responsive and clear touch screen it's easier to see parameters are easy to read and easy to control.

  • A standard fitted side clamp will prevent any infusion tubes becoming entangled and enhance the infusion overview and control.

  • SYS-50/52 by Medcaptain meets IP24 standards meaning it is (among other things) splash resistant and suitable to various kinds of environments.

  • Pre-Occlusion Alarm System has the ability to warn clinical personnel prior to the occlusion alarm, ensuring safe infusion for the patient.

  • The devices can change the flow rate during an infusion without interrupting it.

  • Battery can run, uninterrupted, for up to 20 consecutive hours without needing to be charged.



Specifications of SYS-50 Syringe Pump


  • Dimension: 362(L)x151(H)x130(W)mm

  • Weight: 1.8kg (including battery)

  • Screen: 3.5inch LCD touch screen

  • Classification: Type CF, Class l, IP24

  • Syringe types: All standard syringe of 5ml, 10ml, 20ml, 30ml, 50ml, 60ml

  • Accuracy: Rate, Time, Weight, Sequence, Trapezia, Loading dose, Micro, TIVA

  • Infusion rate range: 01-2000.0(ml/h), minimum increments 0.01 ml/h

  • VTBl range: 0.1-9999ml

  • Accumulated volume: 0.0-9999.99ml

  • Accuracy: 士2%

  • KVO rate: 0.1-5 ml/h

  • Bolus rate: 0.1-2000 ml/h

  • Occlusion level: 11 levels selectable, 225mmHg-975mmHg
