  • Specific Protein Analyzer

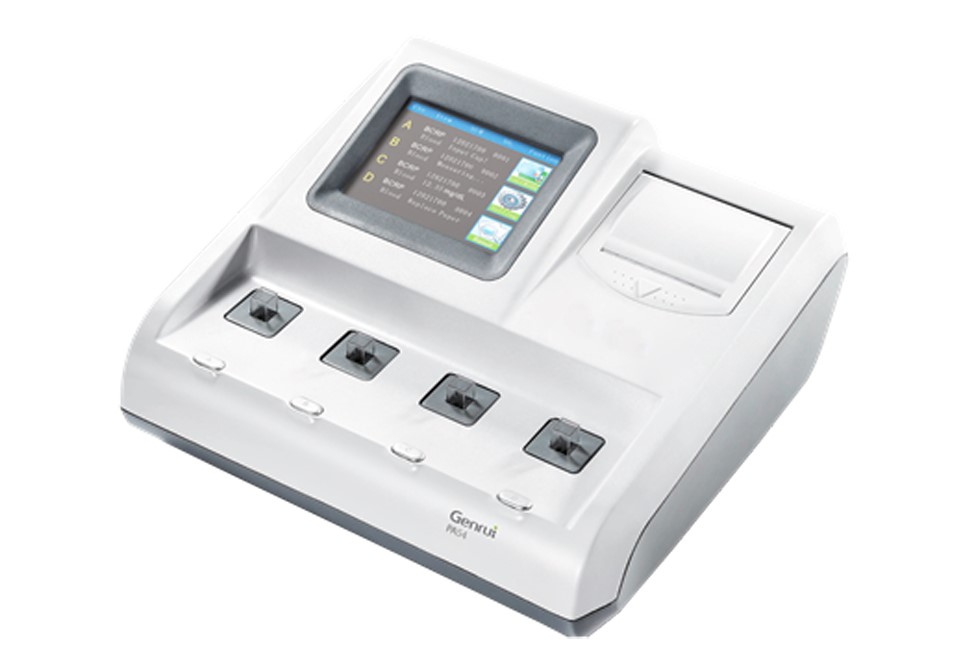

Specific Protein Analyzer

This is a semi-auto analyzer for the quantitative determination of specific proteins in the blood, urine samples, including HbA1c, HS-CRP, CRP, ASO, CYS-C, RF, mALB, D-Dimer, IgM, IgG, IgA, C3, C4, etc. It's an ideal instrument designed for medium or small labs or backup analyzers in large labs.

Key Features of Specific Protein Analyzer

  • Proven method: Fixed time nephelometry

  • 4 independent working channel

  • Small sample volume

  • Calibrated against the International Reference Material CRM470

  • 5.6-inch touch screen operation with intuitive software

  • Support barcode scanner

  • Built-in thermal printer, support auto & manual print

  • Certified by NGSP (National Glycohemoglobin Standardization Program)


Technical Specifications of Specific Protein Analyzer

  • Principle: Nephelometry

  • Throughput 160 samples/hour

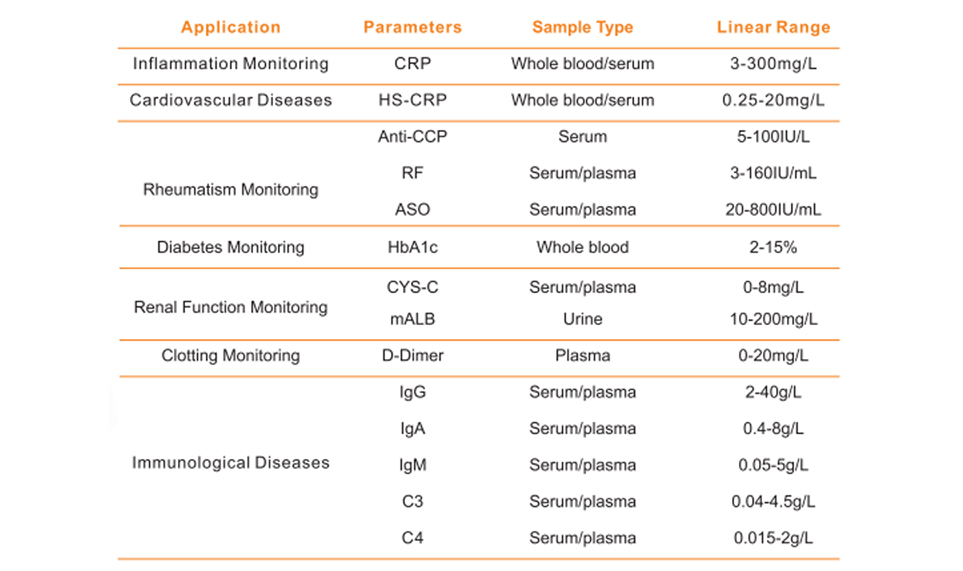

  • Parameters: HS-CRPCRPHbA1cmALBD-DimerAnti-CCPRFASO.CYS-C, IgA, IgM, IgG, C3, C4, etc. Can be extended more than 30 parameters

  • Sample type: Whole blood, serum, plasma, urine, etc

  • Light source: Diode laser,650nm wavelength

  • Calibration: Magnetic card, make the result more accurately

  • Cuvette: Disposable cuvette

  • Testing channel: 1/4 independent channels

  • Reaction time: 1.5~3min

  • Display: 5.6 inches color touch screen

  • Memory: 100.000 results storage

  • Print: Auto and manual printing, thermal printer

  • Working temperature: 10~30°℃

  • Precision: CV≤5%

  • Power supply: AC 100-240V50/60Hz

  • Size: 345mmx352mmx180mm

  • Net: weight 5.4kg

  • Support LIS and barcode NGSP certified
