  • Elisa Microplate Washer

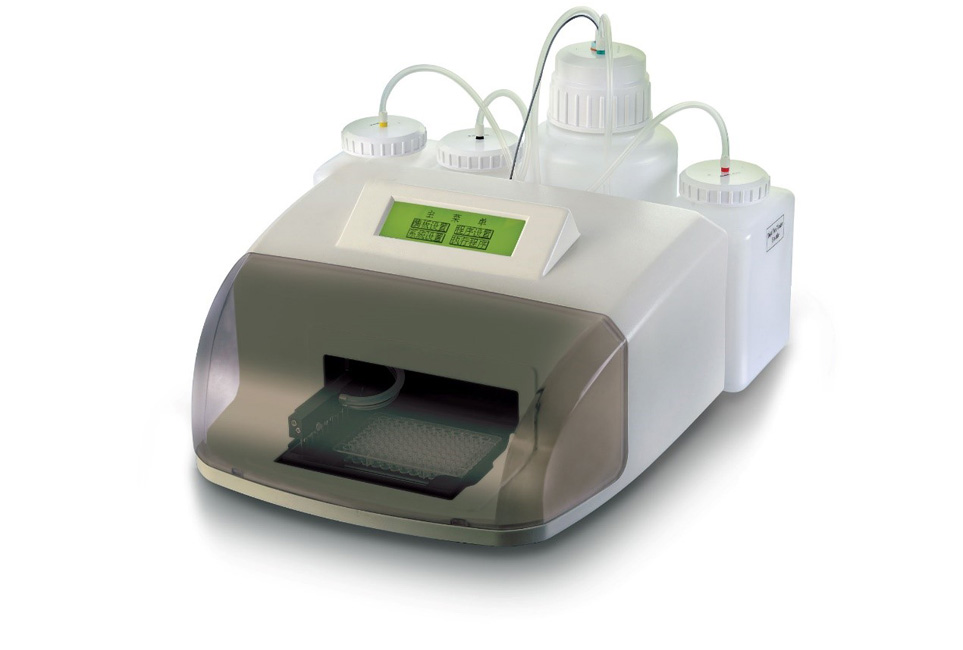

KWP-100A Microplate Washer

  • Compatible with flat, U-or V-bottom plates.

  • Accept up to 2 cleaning solutions (A/B) (optional).

  • 8-way and 12-way wash heads interchangeable.

Key Features of KWP-100A Microplate Washer

  • Programmable up to 64 wash protocols

  • Minimal residual volume

  • Low well–to–well variation

  • Automatic self-diagnostic program

  • Automatic liquid monitoring system

  • Touch screen, LCD display


Technical Specifications of KWP-100A Microplate Washer

late-type

UV or flat-bottom

Wash head

8-way or 12-way

Wash mode

Row and plate

Wash rows

1-12 rows

Wash programs

Up to 64

Type of Plate

Up to 10

Wash cycles

1-9

Dispensing volume

50 to 700 µL

Dispensing accuracy

<5% at 300µL

Liquid flow rate

Programmable

Aspiration strength

Programmable

Residual volume per well

<2 µL for U/V bottom plates; < 3µL for flat-bottom plates

Soak time

Up to 99 seconds

Manifold options

1×8,  1×12

Standard bottle set

1×2L (Cleaning Solution A)

1×2L (Cleaning Solution B)

1×2L (Distilled Water)

1×3.5L (Waste)

Input

Touch screen

Display

LCD display

Power supply

AC 200V/110V ±10%, 50/60Hz

Temperature

10°C~30°C

Humidity

20%~85%

Dimension

380mm(H) ×350mm(W) ×190mm(D)

Weight

9.0 kg


Products
Contact Us
Submit a business inquiry about All Trusted’s medical equipemt.
Contact Us
Get In Touch with All Trusted
With over 15 years' experience in medical device market in China, we provide a total solution for new hospital setting-up, NGO's medical project and mobile clinic solution.

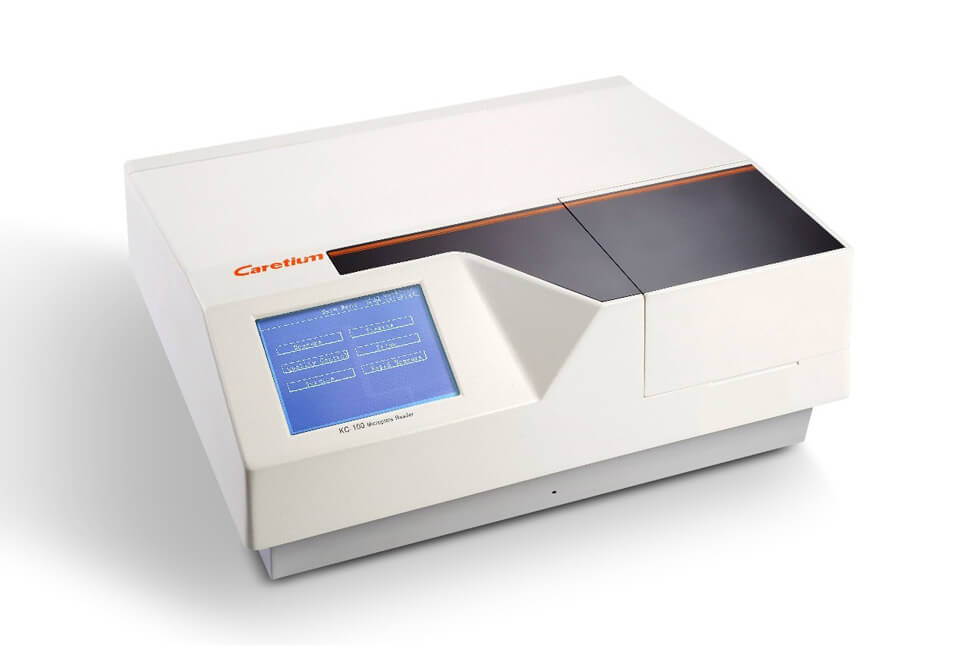

Related Microplate Reader&Washer
